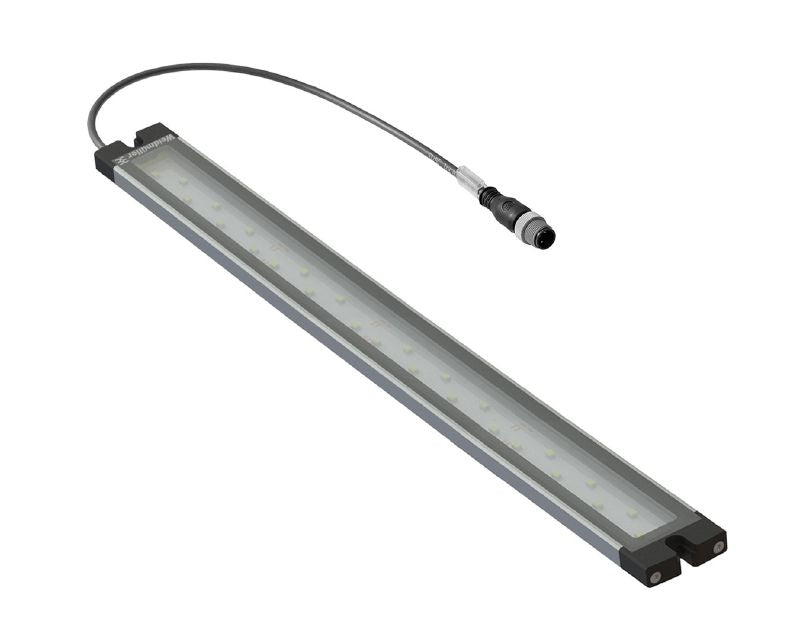

2633840000 - 0.3m Pre-assembled Cable with 24V LED, 1,661 Lumens
2633840000 - 0.3m Pre-assembled Cable with 24V LED, 1,661 Lumens
SKU: SKU: 2633840000 Download PDF
- 2633840000 - 0.3m Pre-assembled Cable with 24V LED, 1,661 Lumens
- 2633840000 - 0.3m Pre-assembled Cable with 24V LED, 1,661 Lumens
Couldn't load pickup availability
Description:
Introducing a pre-assembled 03m cable, specifically crafted to operate with a 24V DC power supply This cable is made from resilient black PUR material, and its robust housing is formed from hard anodised aluminium for enhanced durability With a core cross-section of 034mm², it provides efficient performance The integrated LED module has a fixed design in a rectangular shape, making it suitable for screw mounting.
Capable of handling a rated current of 0625A and delivering a power output of 150W, this unit promises an impressive operational lifespan of up to 60,000 hours It emits a warm light at a color temperature of 2700K and achieves a brightness level of 1,661 lumens, making it a reliable choice for various lighting needs.
Features and Benefits:
•Rated voltage of 24V DC.
•Dimmable functionality.
•Light color warm white (2700K).
•Luminosity of 1,661 lumens.
•Emitting angle of 40°.
•Impact resistance rating IK05.
•Protection degree IP67.
•Recommended for NEC Class 2 power supply applications.
Specifications:
| Depth | 40 mm |
| Height | 8 mm |
| Width | 450 mm |
| Operating Temperature | -20 - 60°C |
| Material of LED Cover | ESG |
| Housing Main Material | hard anodised aluminium |
| Threaded Ring Material | PA |
| Material of End Caps | PBT |
| Number of Poles | 2 |
| Tightening Torque | 0.8 Nm |
| Wiring | Pin 4 (Strand: black) control white LED, Pin 3 (Strand: blue) |
| Number of LEDs | 28 |
| Illumination Level | 537 lux |
| Efficiency Class | F |
| SCIP | bf1e8170-69bb-4440-b3e0-4da351a9a3b0 |
| EPREL Registration Number | 1324734 |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption | 6c |
| REACH SVHC | Lead 7439-92-1 |
