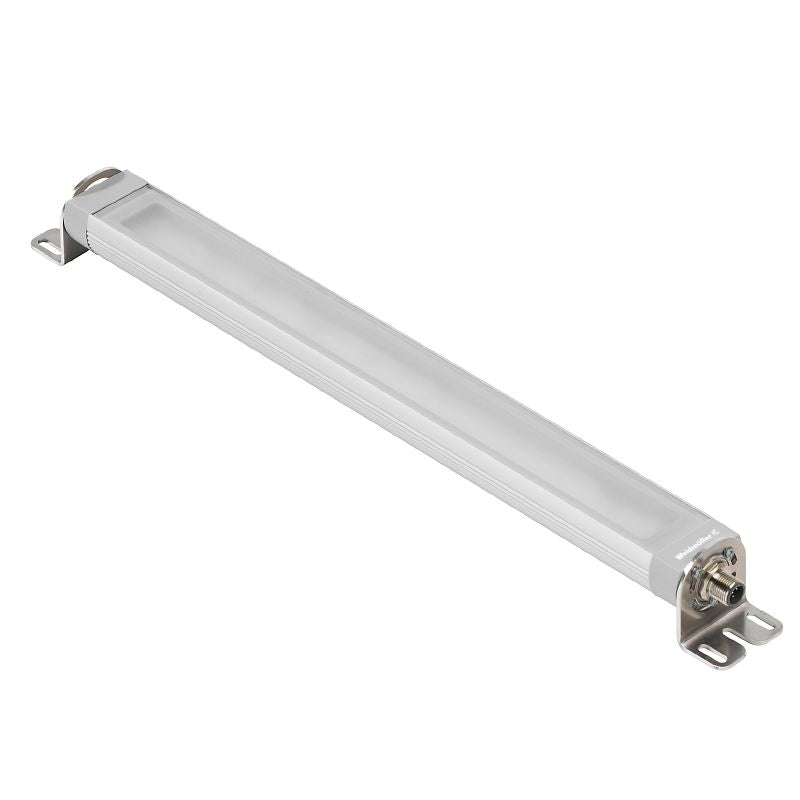

2899240000 - 365mm LED Module Mount, IP67, RoHS Compliant, 5700K Light

Description:

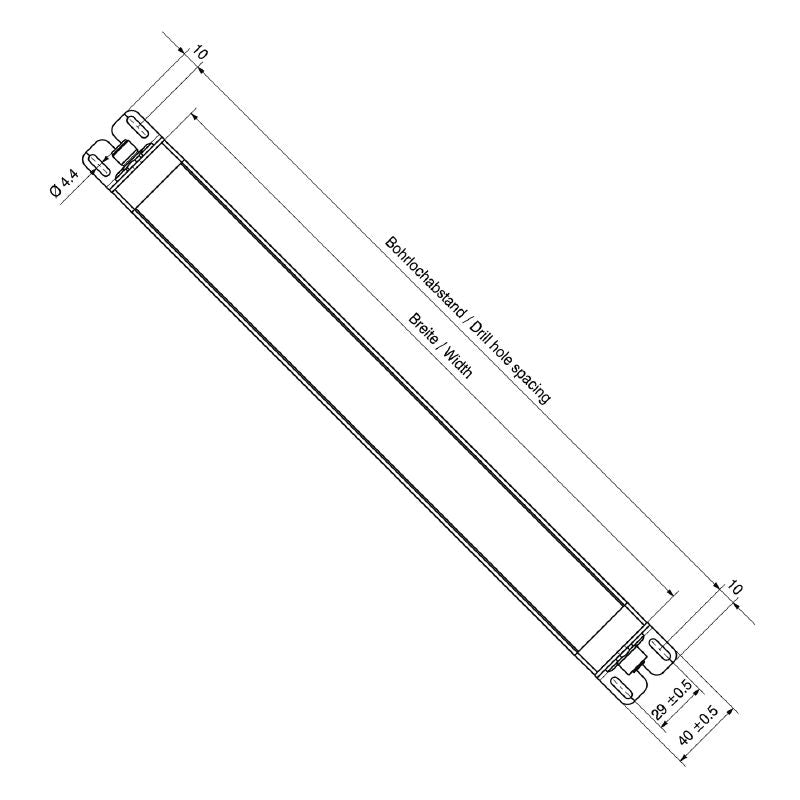

Ensure quality and compliance with this robust product, which features RoHS approval and UL certification Identified by the designation WIL-LXXXX-RXSS-5700-X365-M12D-X0 and backed by the GTIN number 4064675906292, this item measures 365 mm in width (1437 inches), 42 mm in height (1654 inches), and 40 mm in depth (1575 inches), with a weight of 503 grams It operates efficiently in temperatures ranging from -20 to 45°C and adheres to RoHS exemptions, including REACH SVHC Lead 7439-92-1.

This versatile product allows for the connection of up to four LED modules through an easy pin-and-socket system Operating at a 24 V DC voltage with a current of 3458 mA, it consumes a low power of 83 W The accompanying LED module offers a color temperature of 5700K, producing an impressive light output of 854 lumens, with an emission angle of 100 degrees and an illumination level of 324 lux Designed for longevity, it boasts a lifespan of approximately 60,000 hours and holds an IP67 rating, making it ideal for various mounting options, including screw mounting.

Features and Benefits:

•RoHS and UL compliance.

•Allows attachment of up to 4 LED modules.

•Dimmable functionality.

•Long operating life of 60,000 hours.

•IP67 protection rating.
