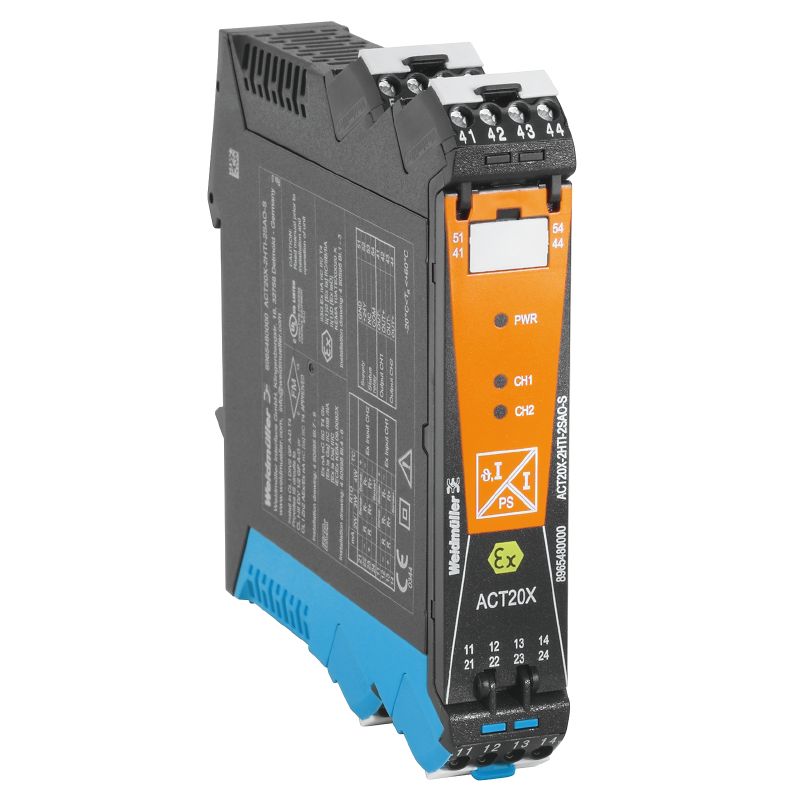

8965470000 - Safe Signal Isolator with Dual Channel Configuration

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the ACT20X-HTI-SAO-S model, a cutting-edge solution for transmitting analog signals with complete electrical isolation from hazardous environments to secure areas This device is engineered with input circuits that meet intrinsic safety standards It can be easily configured and diagnosed using FDT/DTM software, specifically through WI-Manager Ideal for installation in safe zones and zone 2/division 2, it efficiently receives signals from a range of hazardous zones, including categories 0, 1, 2, 20, 21, and 22, compliant with Class I/II/III division 1 groups A-G.

The unit supports RTD, TC, and mA inputs for one or two channels, providing full electrical isolation When set to a two-channel mode, it can function as a signal splitter For enhanced temperature measurement accuracy, the device offers cold junction compensation, either through its internal system or via an external terminal It features sophisticated self-diagnostic capabilities, allowing it to monitor error events and cable faults, which are communicated through an individual status relay.

Front-mounted LEDs provide clear indications of operational status and any errors With robust three-way galvanic isolation between the input, output, and power supply, this model is designed for reliable performance in various applications.

Features and Benefits:

•Configuration and diagnostics supported via FDT/DTM software.

•Suited for installation in safe areas and zone 2/division 2.

•Accepts signals from a variety of hazardous zones.

•Completely electrically isolated input circuits for RTD, TC, and mA.

•Can operate as a signal splitter with a two-channel version.

•Internal and external cold junction compensation options available.

•Enhanced self-diagnostic capabilities.

•Front LEDs for status and malfunction indication.

•Three-way galvanic isolation.

Specifications:
