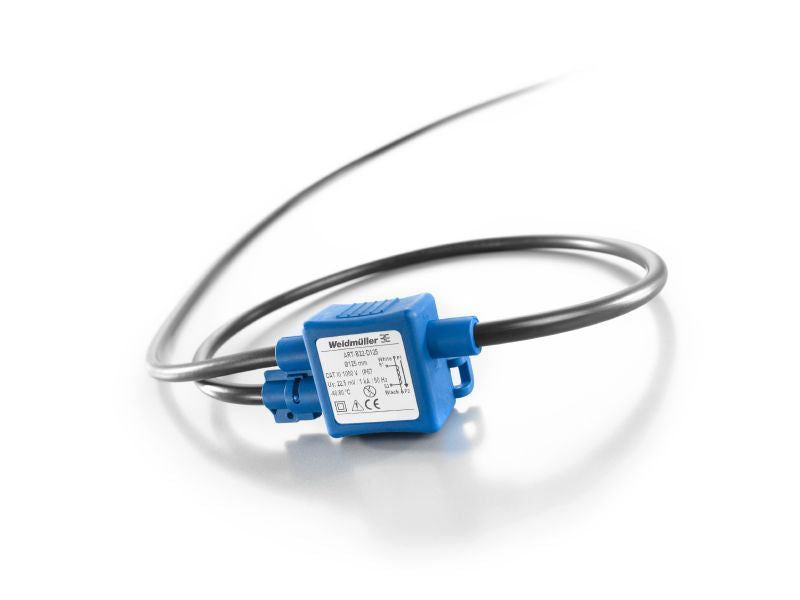

2593380000 - 125mm RCMA-B22 Rogowski Coil for Accurate AC Measurement

2593380000 - 125mm RCMA-B22 Rogowski Coil for Accurate AC Measurement

SKU: 2593380000   Download PDF

Select a Variant:
  • 2593380000 - 125mm RCMA-B22 Rogowski Coil for Accurate AC Measurement
Qty:
Now $150.19   Web pricing policy
BEFORE   $0.00 Now $150.19 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

The RCMA-B22-DXX Rogowski coil is expertly crafted for the electronic measurement of alternating current To achieve optimal performance, it must be paired with the Weidmüller transducer RCMC-5000-XX This design ensures that the primary and secondary circuits remain isolated from each other, facilitating precise current measurements across a broad spectrum of primary currents without experiencing saturation issues.

Features and Benefits:

    •Conductor diameter of the measuring coil: 6.1 mm.

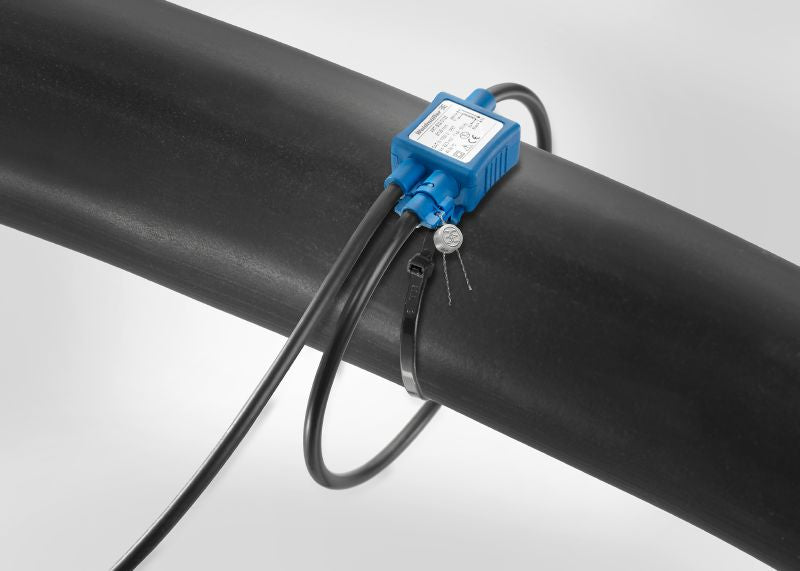

    •Housing tabs for attachment with cable ties.

    •Sealable bayonet fastening.

Specifications:

 Diameter 125 mm
 Cable diameter 6.1 mm
 Cable length 1.5 m
 Frequency band 50...60 Hz
 Measurement error <± 0.5% (of measuring range limit)
 Nominal turns ratio 44.44 kA/V
 Phase shift 0.004 °
 Primary conductor temperature 105 °C
 Primary current 5,000 A
 Secondary voltage 22.5 mV (@ 50Hz I primary = 1 kA)
 Maximum voltage 30 V
 Tolerance class 0.5
 Protection degree IP57
 Storage temperature -40 °C...80 °C
 Operating temperature -40 °C...80 °C
 Humidity at operating temperature 5 - 90 %, no condensation
