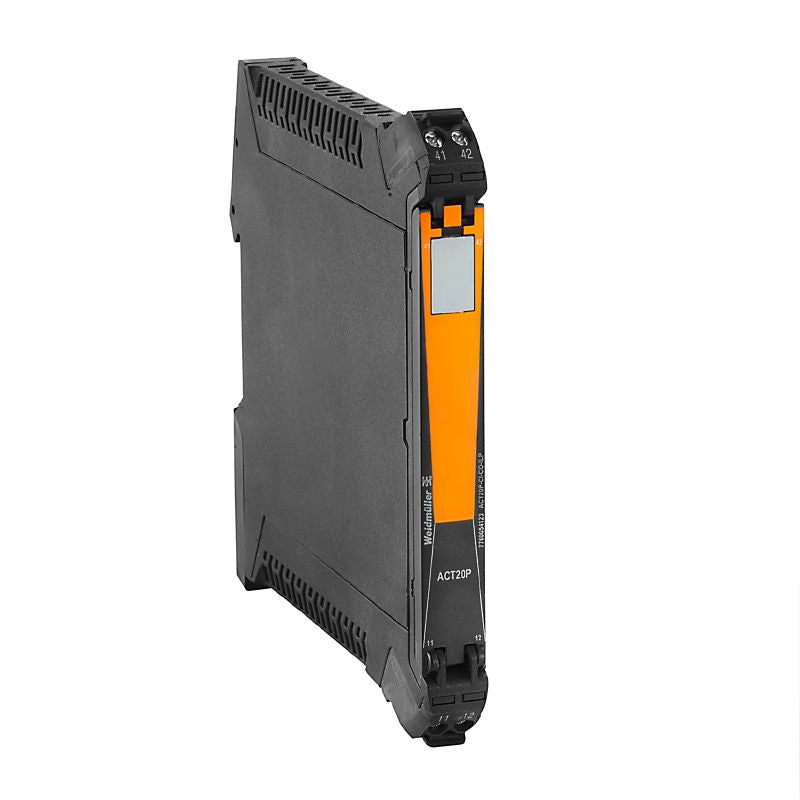

7760054121 - Single-Channel Analog Isolator with Galvanic Isolation

7760054121 - Single-Channel Analog Isolator with Galvanic Isolation

SKU: 7760054121 Download PDF

Variant:
  • 7760054121 - Single-Channel Analog Isolator with Galvanic Isolation
Now $180.05
BEFORE   $0.00 Now $180.05
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

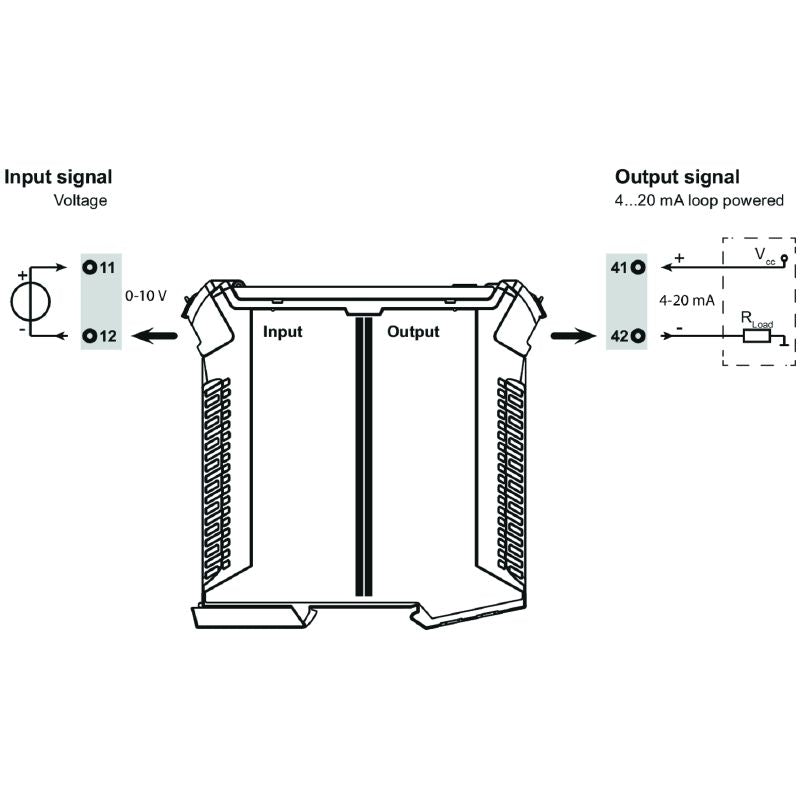

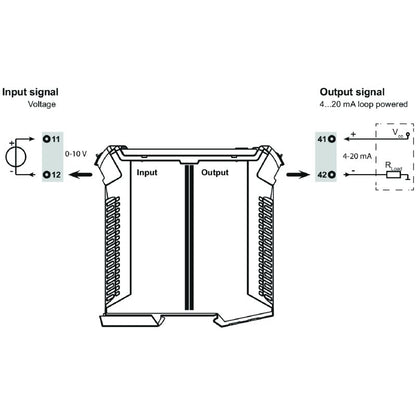

Introducing the ACT20P-VI-CO-OLP-S, a single-channel passive isolator designed to effectively isolate and convert standard analog signals This device expertly transforms an analog input voltage signal into a matching analog output current signal while ensuring galvanic isolation Conveniently, it operates using power supplied through the output current loop, making it both functional and efficient for various applications.

Features and Benefits:

    •2-way galvanic isolation between the input and output.

Specifications:

 Input voltage 0...10 V
 Output current 4...20 mA, loop-powered

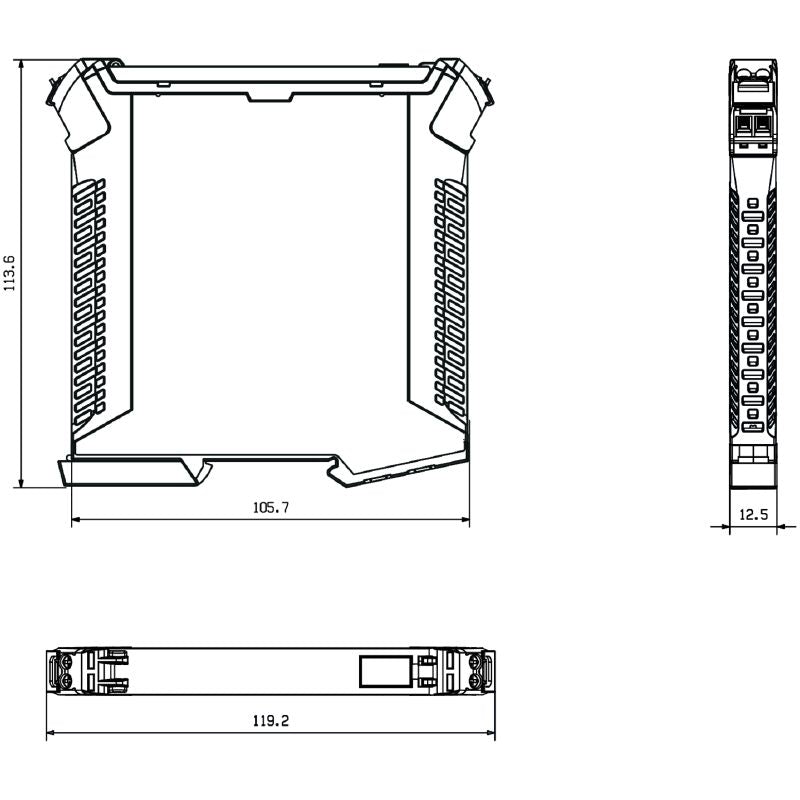

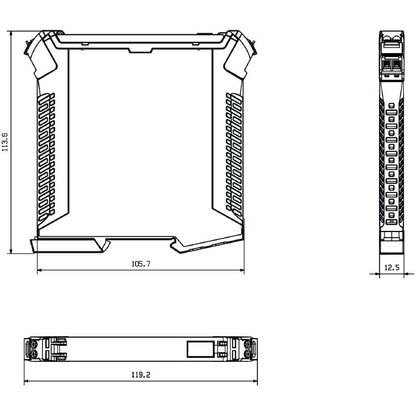

 Dimensions {'Height': '117.2 mm', 'Width': '12.5 mm', 'Depth': '114 mm'}
 Storage temperature -40 °C to 85 °C
 Operating temperature -20 °C to 60 °C
 Protection degree IP20
 Power consumption {'nominal': '2 VA', 'typical': '2 W'}
 Supply voltage min. 12 V DC / max. 30 V DC
 Accuracy <0.2 % of end value
 Mounting rail TS 35
 Rated voltage 300 V
 Rated switching current 0.1 A
