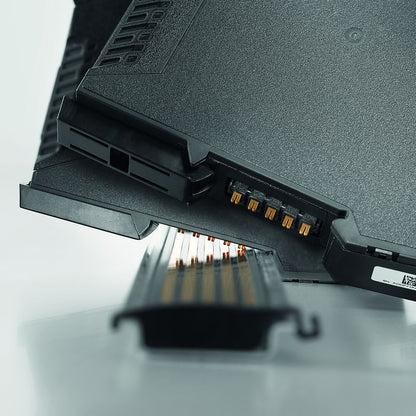

1506210000 - Dual-Channel DC Isolating Amplifier with 5-Way Isolation

1506210000 - Dual-Channel DC Isolating Amplifier with 5-Way Isolation

SKU: 1506210000   Download PDF

Select a Variant:
  • 1506210000 - Dual-Channel DC Isolating Amplifier with 5-Way Isolation
Qty:
Now $214.08   Web pricing policy
BEFORE   $0.00 Now $214.08 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the ACT20P-2CI-2CO, a sophisticated dual-channel DC isolating amplifier tailored for standard analogue current source signals This advanced device efficiently transforms an analogue input current signal into a corresponding analogue output current signal, all while providing essential galvanic isolation It boasts a robust 5-way isolation feature, ensuring that the power supply remains isolated from both input and output for maximum safety and performance.

Features and Benefits:

    •HART-compatible for frequency ranges of 0.5 - 2.5 kHz.

    •LED display for operating status on the front panel.

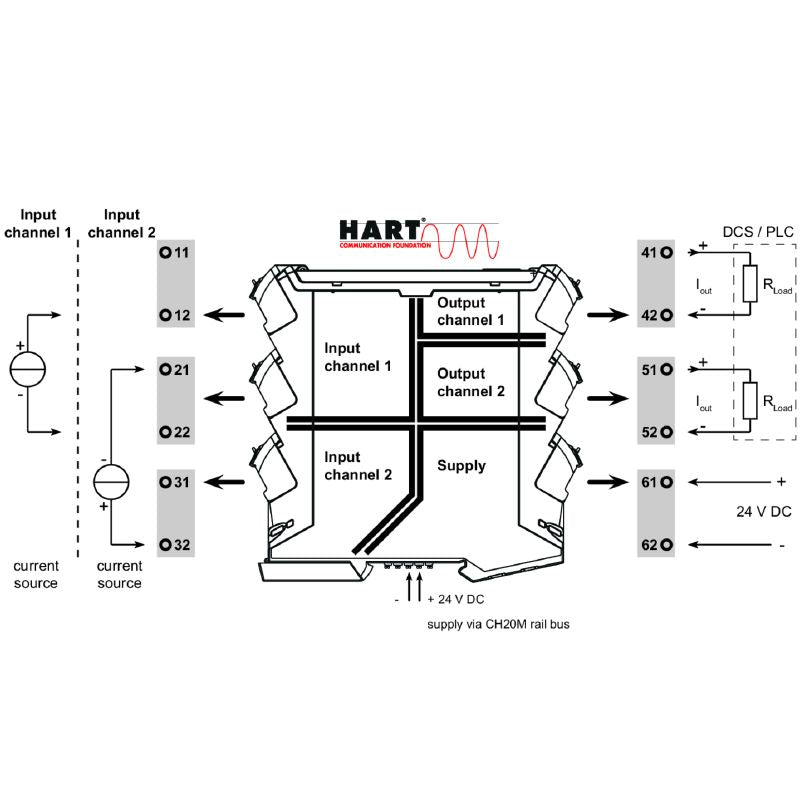

    •Provides 5-way galvanic isolation between input, output, and power supply.

Specifications:

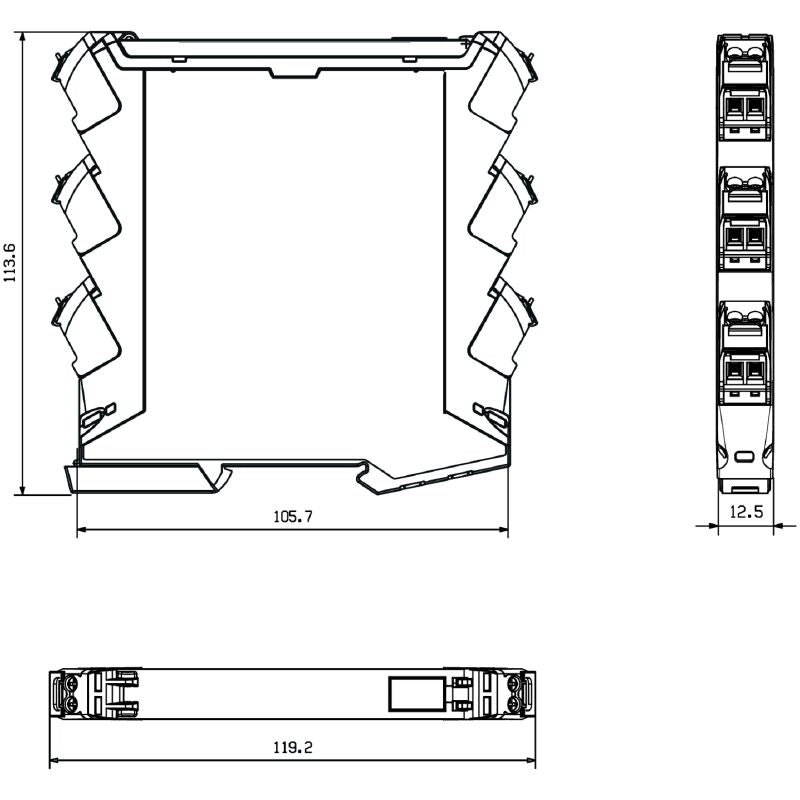

 Depth 113.7 mm
 Height 119.2 mm
 Width 12.5 mm
 Net weight 170 g
 Storage temperature -40 °C to 85 °C
 Operating temperature -20 °C to 60 °C
 Humidity (operating) 0 to 95 % (no condensation)
 Input current 0 to 20 mA
 Input voltage ≤ 28 V DC
 Number of inputs 2
 Output current 0 to 20 mA
 Accuracy <0.1 % of end value
 Current consumption ≤100 mA (24V power supply, 20mA output)
 Mounting rail TS 35
 Supply voltage 20 to 30 V DC
 Insulation voltage 2 kV inputs/outputs/power supply
 Protection degree IP20
