2593390000 - 175mm Rogowski Coil for 100-5000A AC Measurement

2593390000 - 175mm Rogowski Coil for 100-5000A AC Measurement

SKU: 2593390000   Download PDF

Select a Variant:
  • 2593390000 - 175mm Rogowski Coil for 100-5000A AC Measurement
Qty:
Now $145.73   Web pricing policy
BEFORE   $0.00 Now $145.73 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

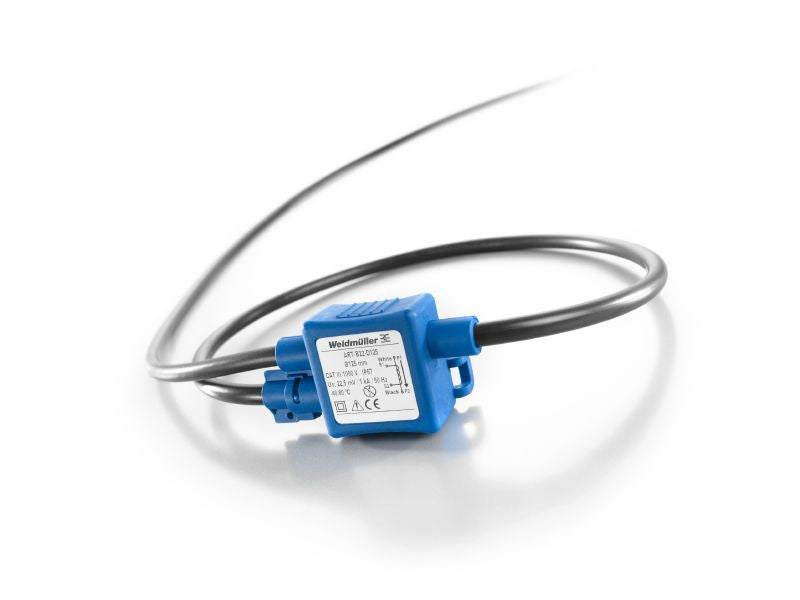

Introducing the RCMA-B22-D175-15, a sophisticated Rogowski coil tailored for precise electronic measurement of alternating current With a diameter of 175 mm and a generous cable length of 15 meters, this coil effectively measures currents ranging from 100 to 5000 A, producing a pulse mV output signal For optimal performance, it is essential to pair it with the Weidmüller transducer model RCMC-5000-XX.

Its innovative design ensures accurate readings across a broad current spectrum without any saturation Additionally, the coil is equipped with housing tabs, facilitating secure attachment with cable ties, and features a sealable bayonet fastening for added reliability.

Features and Benefits:

    •Conductor diameter of measuring coil is 6.1 mm.

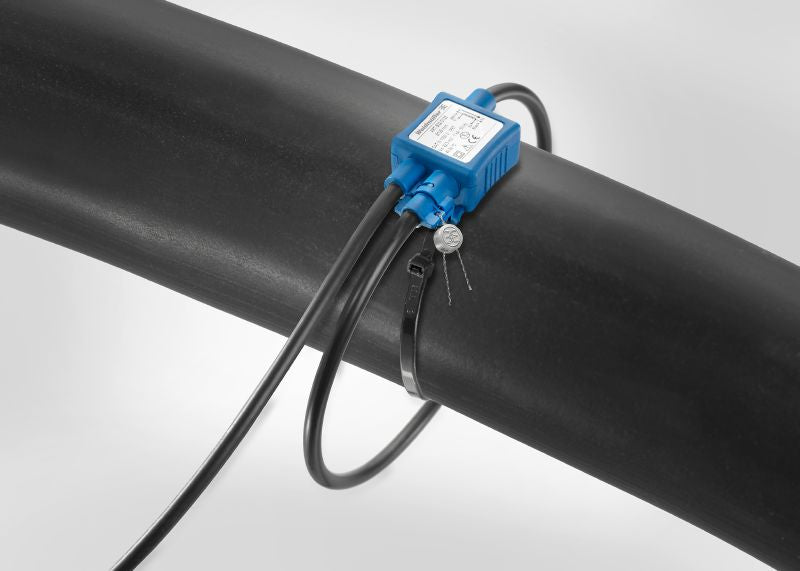

    •Housing tabs facilitate secure attachment with cable ties.

    •Sealable bayonet fastening.

    •No saturation effect, ensuring accurate current measurements over a wide range.

Specifications:

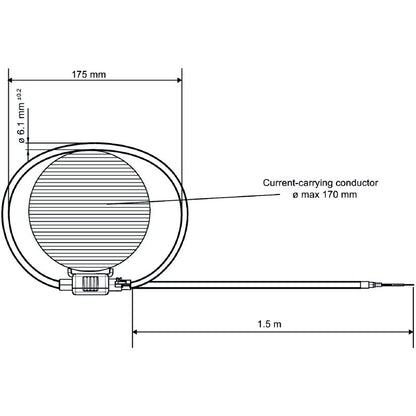

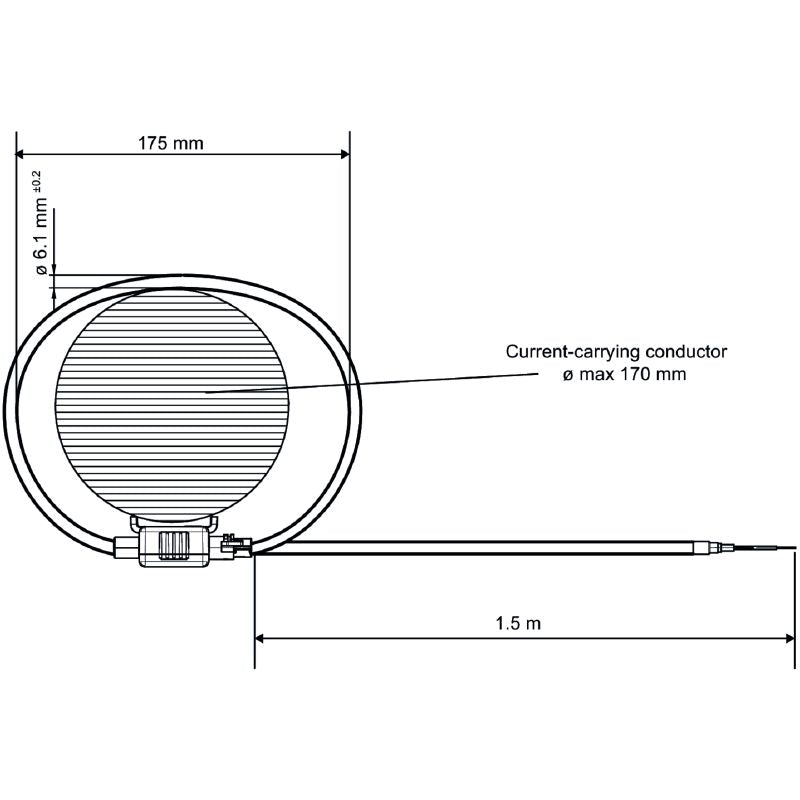

 Diameter 175 mm
 Storage temperature -40 °C to 80 °C
 Operating temperature -40 °C to 80 °C
 Humidity at operating temperature 5 - 90 %, no condensation
 Frequency band 50...60 Hz
 Measurement error <± 0.5% (of measuring range limit)
 Nominal turns ratio 44.44 kA/V
 Phase shift 0.004 °
 Primary conductor temperature 105 °C
 Primary current 5000 A
 Secondary voltage 22.5 mV (@ 50Hz I primary = 1 kA), 30 V (max)
 Tolerance class 0.5
 Cable diameter 6.1 mm
 Coil resistance 105 Ω
 Protection degree IP57
 Impulse withstand voltage 12.8 kV (1.2/50 ms)
 Insulation voltage 7.4 kV RMS (50 Hz, 1 min)
 Rated insulation voltage 1000V reinforced insulation according to IEC 61010-1, CAT III, PD2; 1000V basic insulation according to IEC 61010-1, CAT IV, PD2; 600V reinforced insulation according to IEC 61010-1, CAT IV, PD2
 Tracking resistance (CTI) 600
