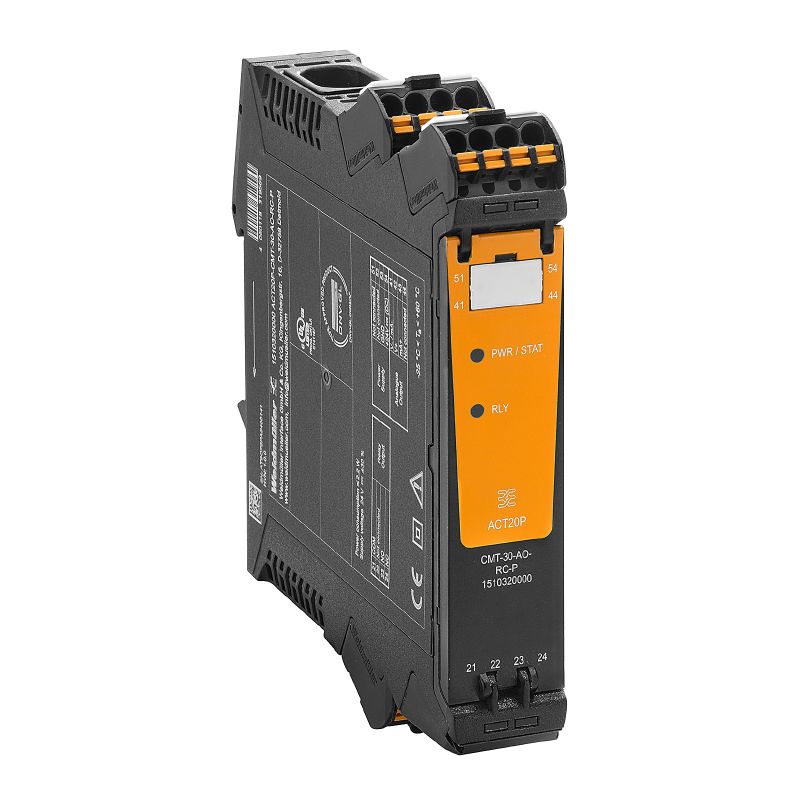

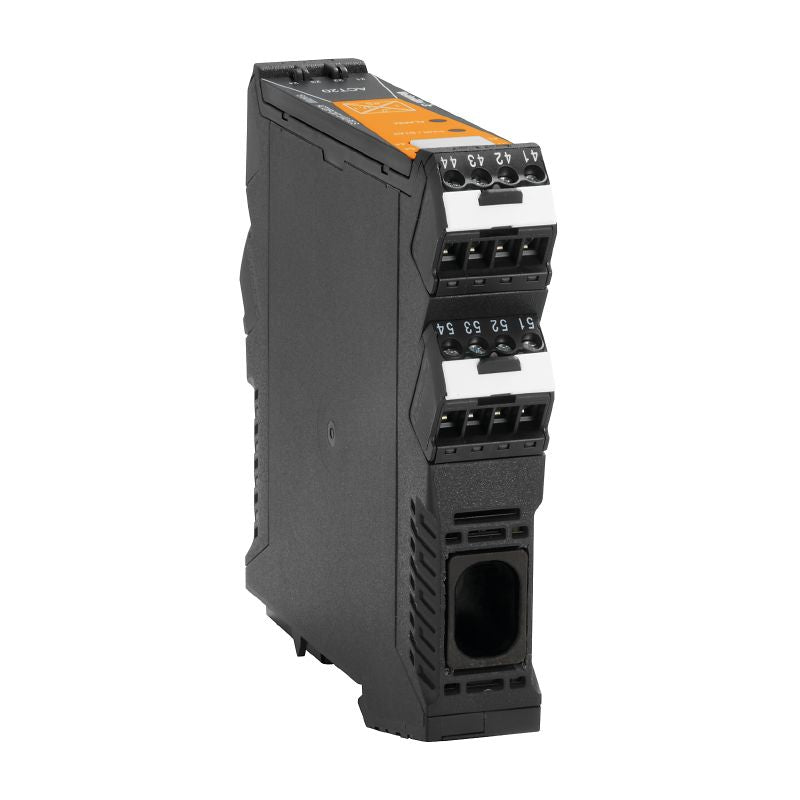

1510280000 - 60A AC/DC Current Transducer with Relay Output and Monitoring

1510280000 - 60A AC/DC Current Transducer with Relay Output and Monitoring

SKU: 1510280000   Download PDF

Select a Variant:
  • 1510280000 - 60A AC/DC Current Transducer with Relay Output and Monitoring
Qty:
Now $197.88   Web pricing policy
BEFORE   $0.00 Now $197.88 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the ACT20P-CMT-XX-(AO)-RC-P series, an advanced instrument for precise measurement and monitoring of both AC and DC currents, boasting a maximum capacity of 60 A This device utilizes real effective value technology, guaranteeing reliable readings even under distorted waveform conditions It also features comprehensive limit value monitoring with customizable thresholds, delay settings, and hysteresis, along with an integrated relay output for added functionality.

Ideal for a range of applications, this equipment ensures accuracy and dependability in current measurement.

Features and Benefits:

    •Real effective value measurement (True RMS) or arithmetic averaging (AA) measurement.

    •Contactless through-hole technology.

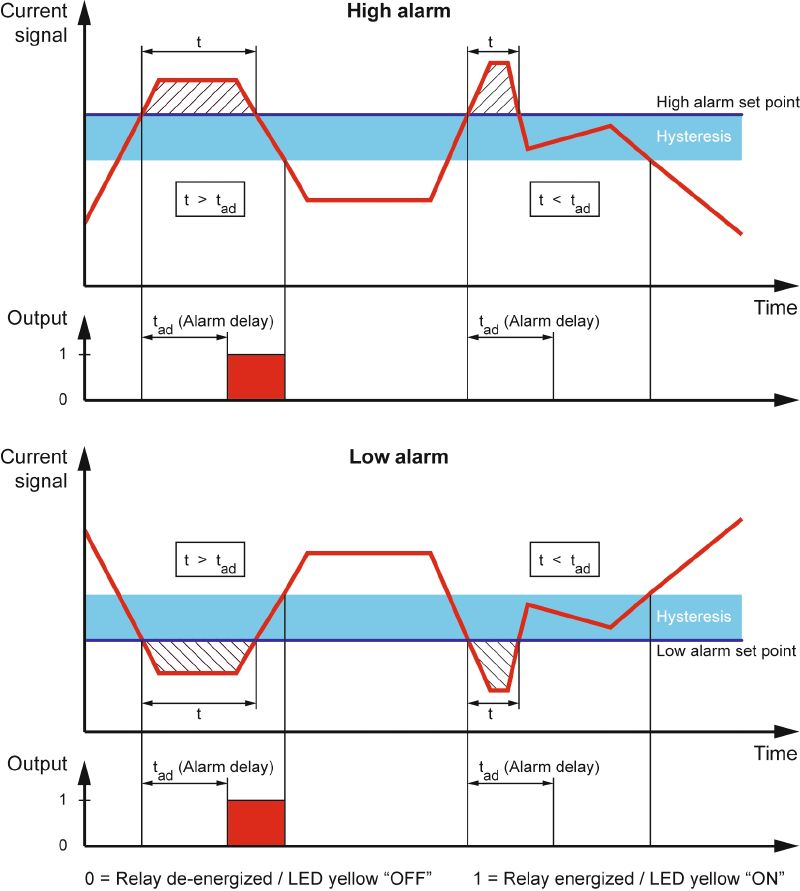

    •Limit value monitoring for both overcurrent and undercurrent situations.

    •Relay output based on open-circuit/closed-circuit principles.

    •Adjustable trigger delay to smooth out current spikes.

    •Operational status and fault alerts via a front panel LED and output signaling according to NE43, NE44, NE107.

    •Four-way galvanic isolation ensuring secure separation as per IEC/EN 61010-2-201.

Specifications:

 Input frequency AC: 15…700 Hz (true root mean square)

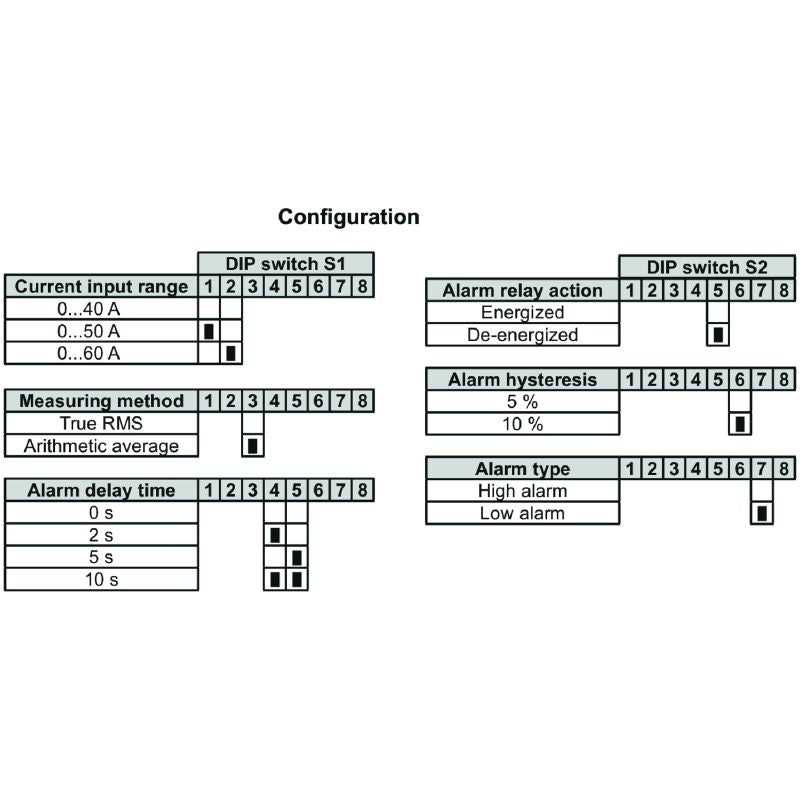

 Input measurement range configurable 0…40/50/60 A AC or DC max. peak current 10 × IInput for 1s
 Max. switching voltage, AC 250 V
 Max. switching voltage, DC 24 V
 Rated switching current 6 A
 Accuracy <0.75 % FSR
 Power consumption, max. 2.2 W
 Power consumption, typ. 0.9 W
 Protection degree IP20
 Supply voltage 16.8 V…31.2 V
 Insulation voltage 4 kV eff / 1 min.
 Tightening torque, min. 0.4 Nm
 Tightening torque, max. 0.6 Nm
 Clamping range, rated connection 2.5 mm²
 Clamping range, min. 0.5 mm²
 Clamping range, max. 2.5 mm²
