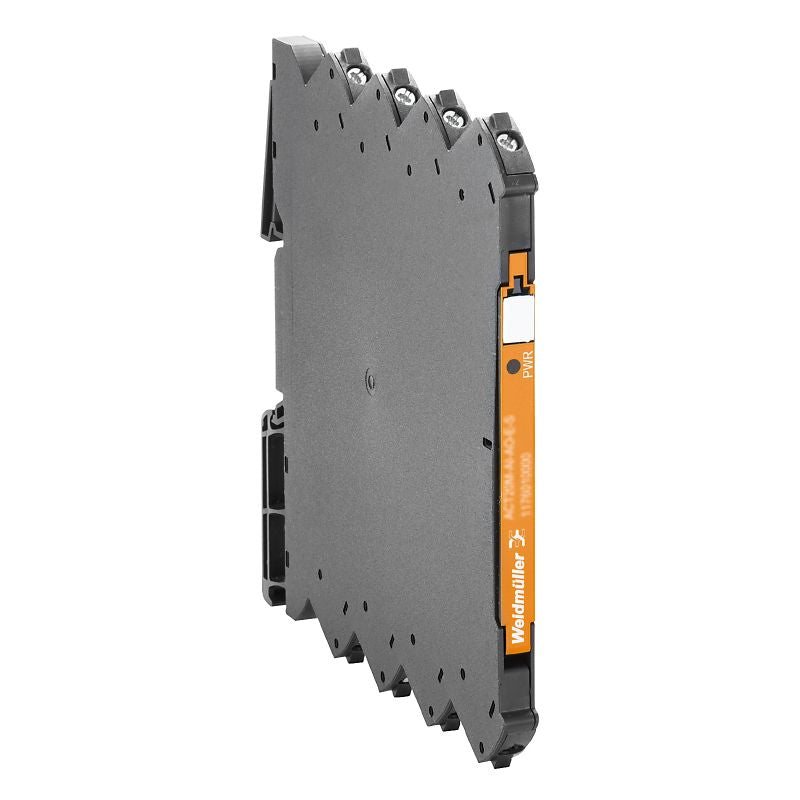

1375500000 - Configurable Temperature Transducer for Thermocouple Inputs

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

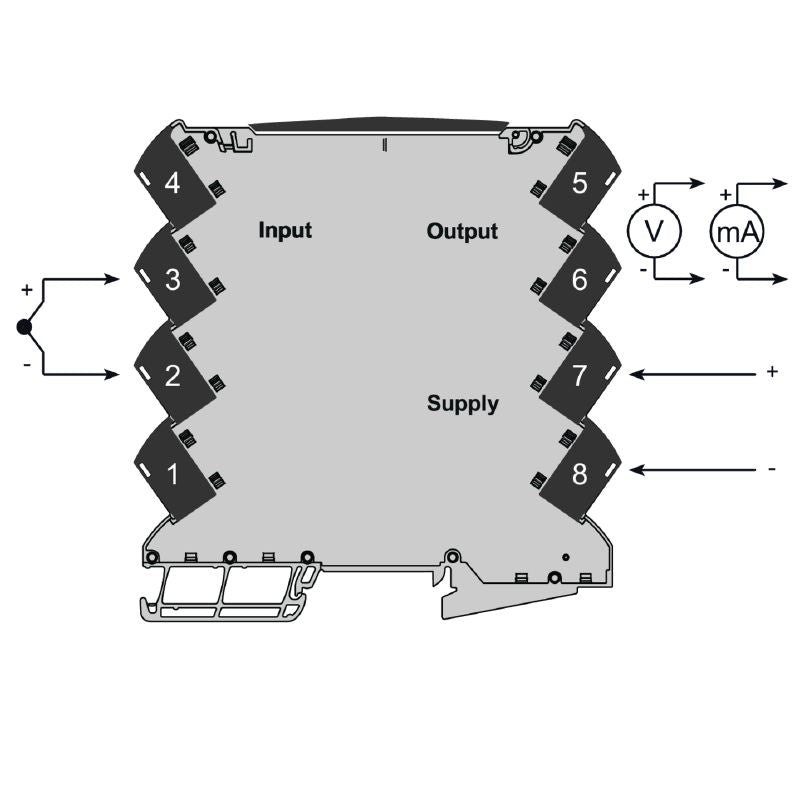

Introducing the ACT20M-TCI-AO-E-S, a versatile temperature transducer that adeptly converts and isolates analogue signals This device processes analogue thermocouple input signals (Type J or K) to generate a corresponding analogue output signal, maintaining efficiency without the galvanic isolation While it shares a design with the ACT20M-TCI-AO-S, this model skips the galvanic isolation feature Instead, it achieves power supply isolation through either direct wiring or connecting to the Weidmüller rail bus, providing flexibility and functionality for your needs.

Features and Benefits:

•Configurable temperature input ranging from Type J (-100 to +1200 °C) and Type K (-180 to +1372 °C).

•Output options include configurable current (0...20 mA, 4...20 mA) and voltage (0(2)...10 V, 0(1)...5 V).

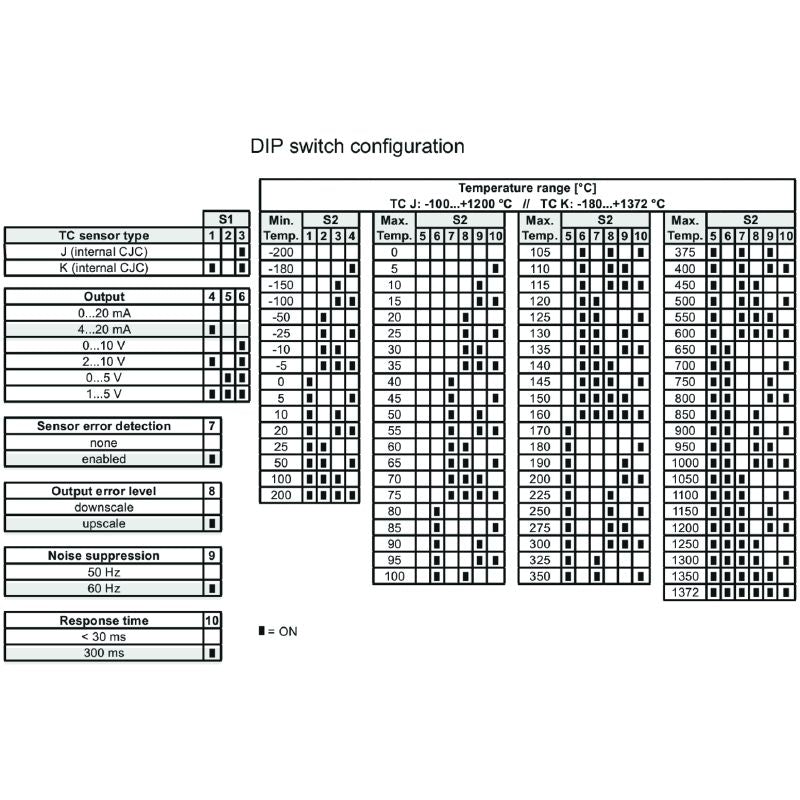

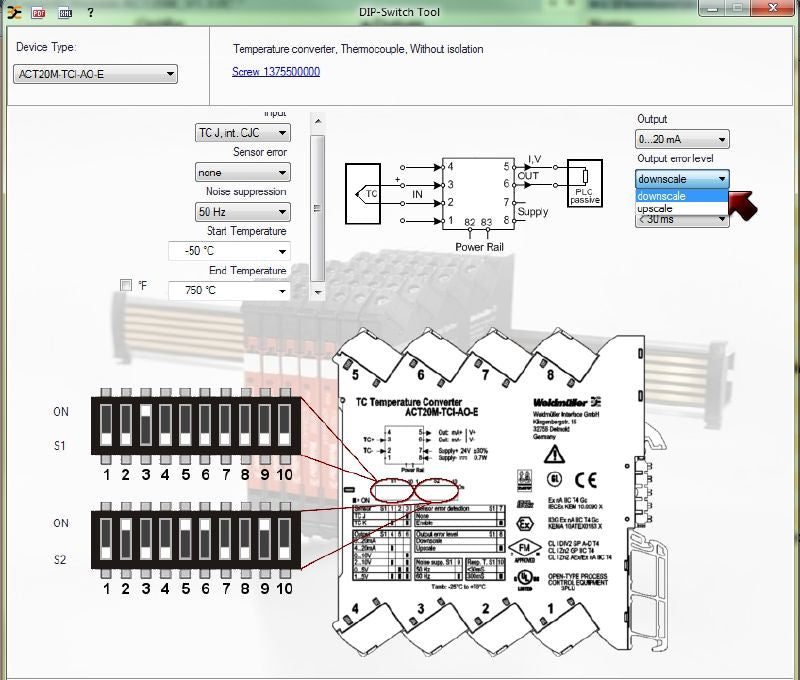

•DIP switch configuration for easy setup.

•Integrated wire break detection with configurable sensitivity.

•Nominal power consumption of 0.5 VA with max consumption of 0.52 W.

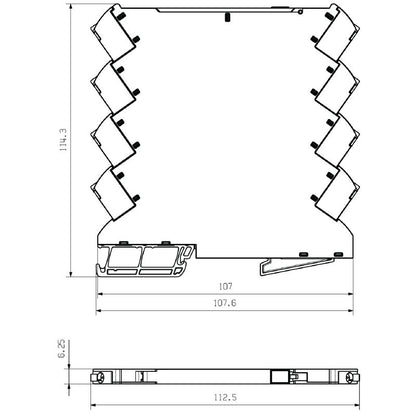

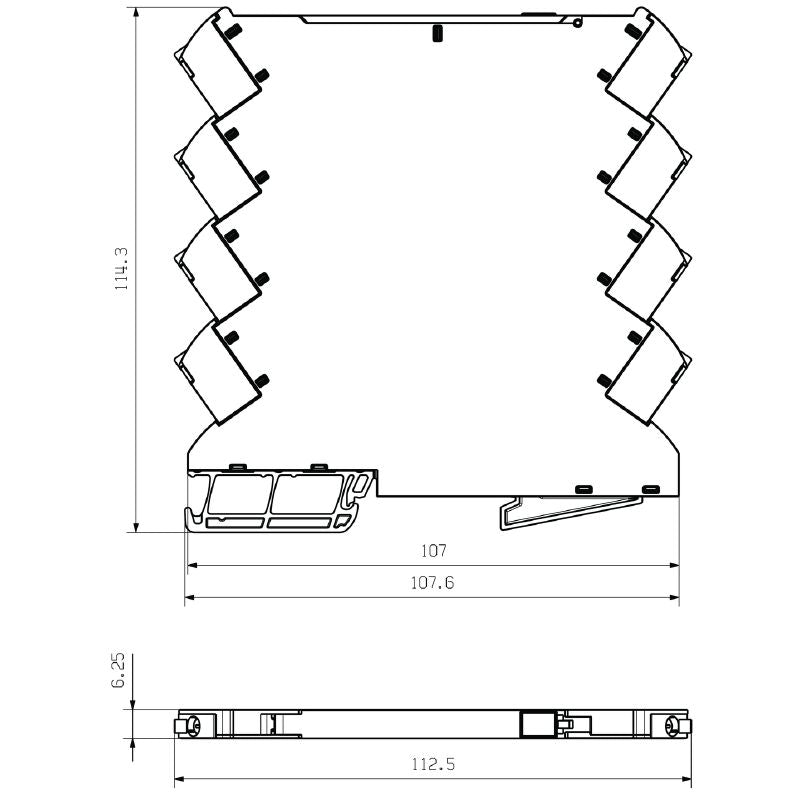

•Compact design with a depth of 114.3 mm and width of 6.1 mm.

•Equipped with IP20 protection degree.

Specifications:
