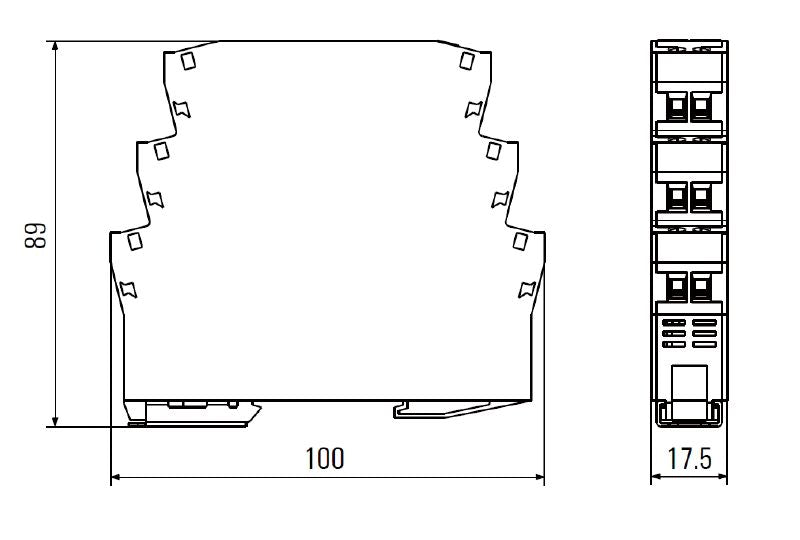

7760054182 - RoHS Compliant Device 89mm x 100mm x 17.5mm, 80g

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the EPAK-PCI-CO, a device that meets RoHS compliance standards, ensuring it adheres to environmental safety regulations With compact dimensions of 89 mm in depth, 100 mm in height, and 175 mm in width, it weighs a mere 80 g, making it lightweight and easy to integrate into various applications This device operates efficiently within a temperature range of -20 °C to 60 °C, with storage capabilities extending from -40 °C to 85 °C.

Powering the EPAK-PCI-CO requires an input current ranging from 0 to 20 mA, maximum sensor supply voltage is set at 30 V Output specifications include a load impedance current of 500 Ω or less and a rated switching current of 01 A for digital outputs It boasts an impressive accuracy of 015% of the full scale, ensuring reliable performance for your needs Additionally, this unit consumes a maximum of just 1.

9 W of power, making it both efficient and effective.

Features and Benefits:

•Protection degree rated as IP20.

•Galvanic isolation between input, output, and supply.

•Step response time of less than or equal to 100 ms.

Specifications:
