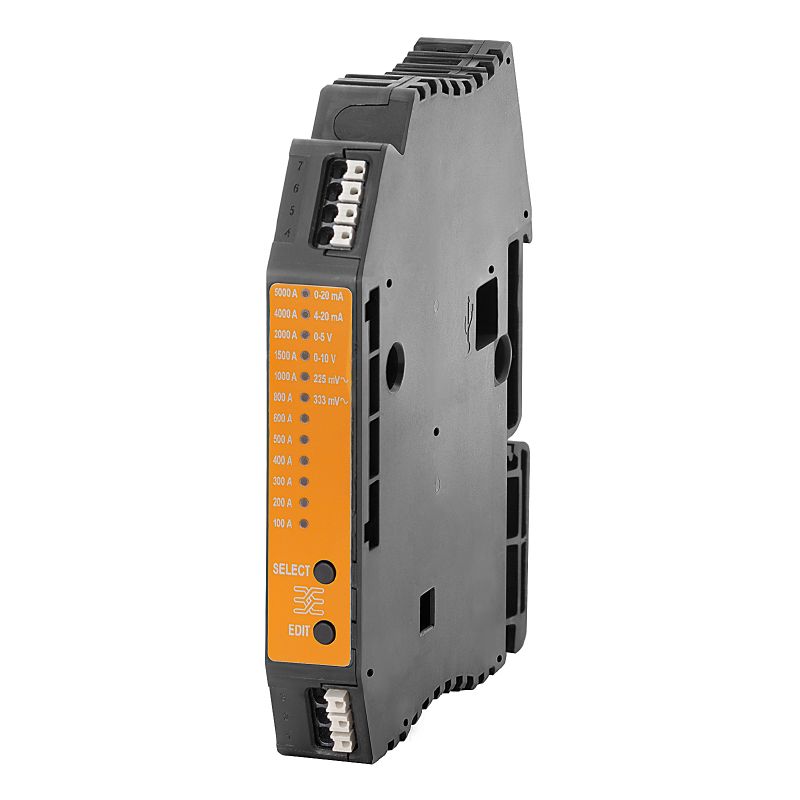

2593410000 - RCMC-5000-AO-P AC Current Measuring Transducer with LED Indicator

SKU: SKU: 2593410000 Download PDF

Select a Variant:

2593410000 - RCMC-5000-AO-P AC Current Measuring Transducer with LED Indicator

SET THE QTY:

Now $202.96 Web pricing policy

~~BEFORE $0.00~~ Now $202.96 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

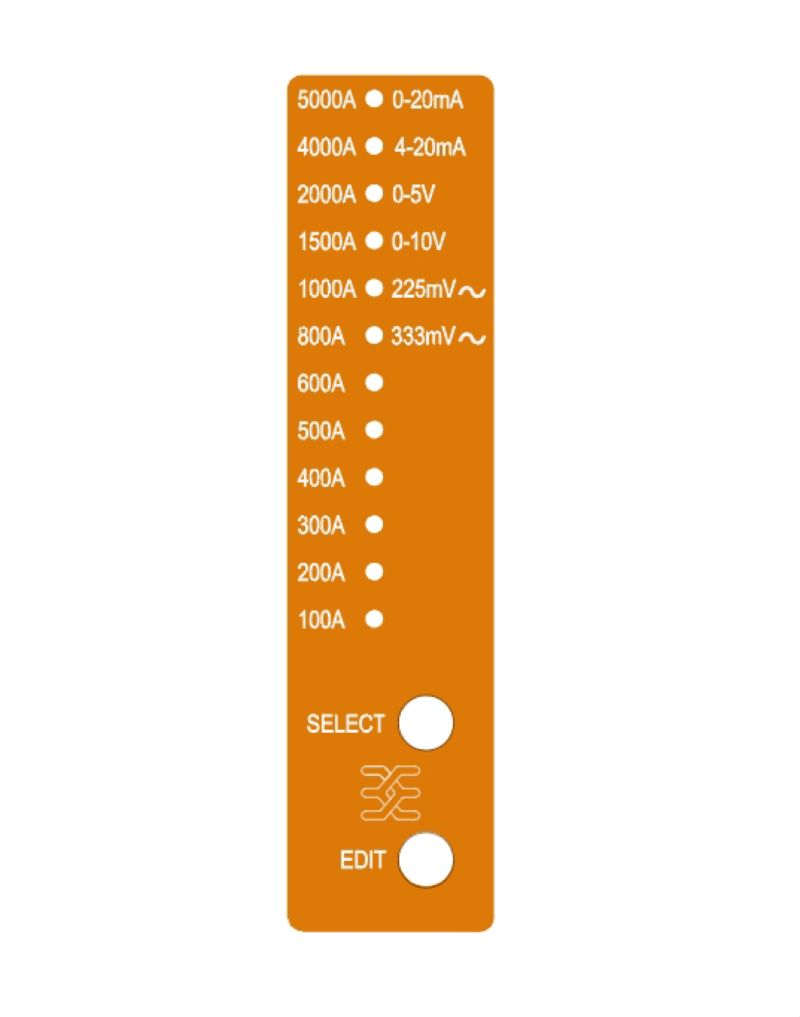

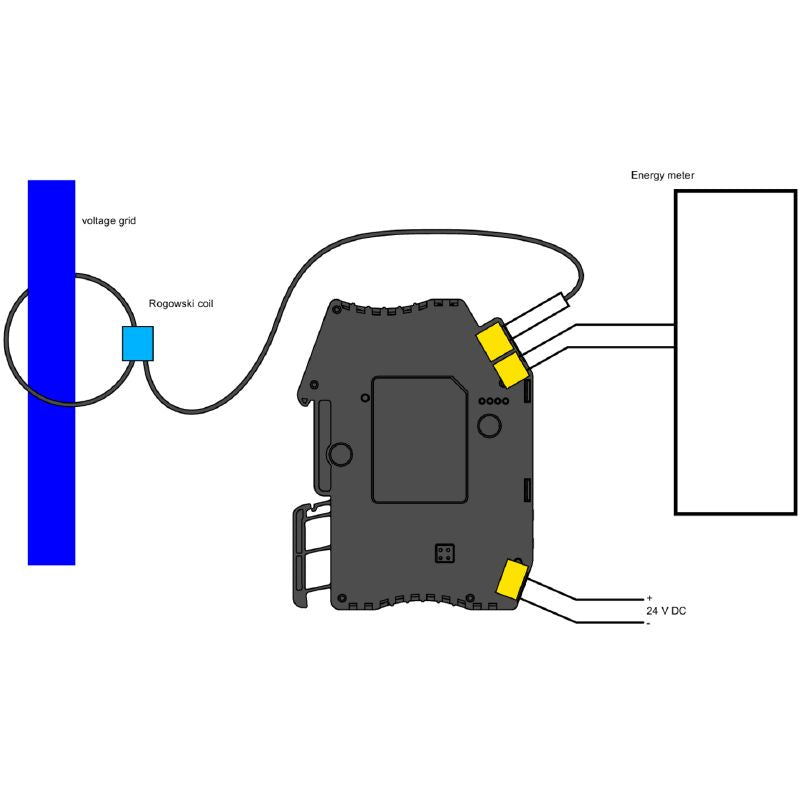

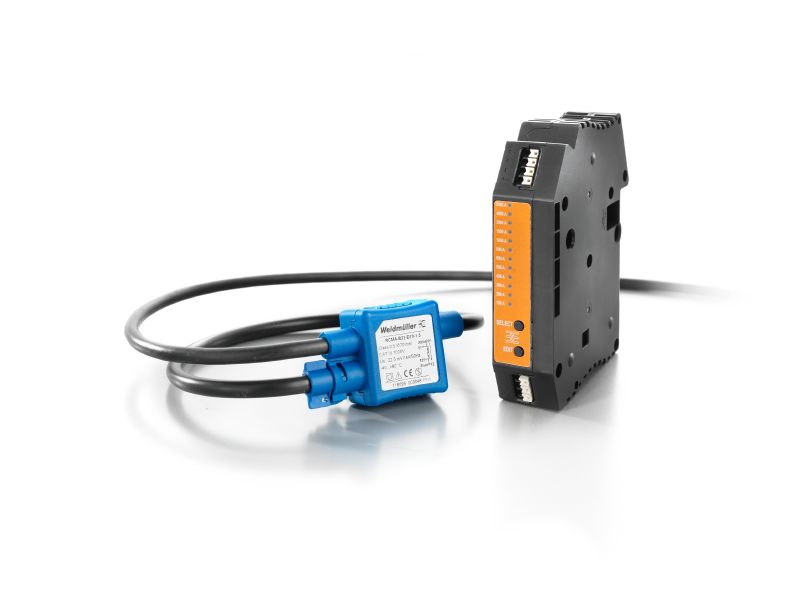

The RCMC-5000-AO-P measuring transducer is expertly engineered for the electronic measurement of AC current It seamlessly connects with Weidmüller RCMA-B22-DXX Rogowski coils, converting their signals into an analogue output while preserving excellent phase fidelity The device features an intuitive two-button configuration system located on the front panel, and an LED indicator for easily monitoring both operational and setup states.

Features and Benefits:

•12 selectable current measuring ranges.

•USB connection exclusively for power supply.

•Designed for electronic measurement of AC current.

Specifications:

Order No.	2593410000
GTIN (EAN)	4050118647754
Dimensions	Depth: 78 mm, Height: 100 mm, Width: 23.1 mm
Temperature Range	Storage temperature -40 °C...85 °C, Operating temperature -25 °C...70 °C
Humidity	5...95 %, no condensation
Frequency Band	50...60 Hz
Primary Current	5000 A
Secondary Voltage	22.5 mV (@ 50Hz I primary = 1 kA)
Protection Degree	IP20
Input Measurement Range	100 A, 200 A, 300 A, 400 A, 500 A, 600 A, 800 A, 1000 A, 1500 A, 2000 A, 4000 A, 5000 A
Output Signal	0...20 mA, 4...20 mA, 0...5 V DC, 0...10 V DC, 0...225 mV AC, 0...333 mV AC
Accuracy	<0.5 % of measuring range
Current Consumption	200 mA typical
Supply Voltage	24 V DC ± 25 %
Insulation Voltage	1.5 kV AC 1 min.
