7760054303 - RoHS Compliant Temperature Measuring Device, 89mm x 100mm x 17.5mm

Description:

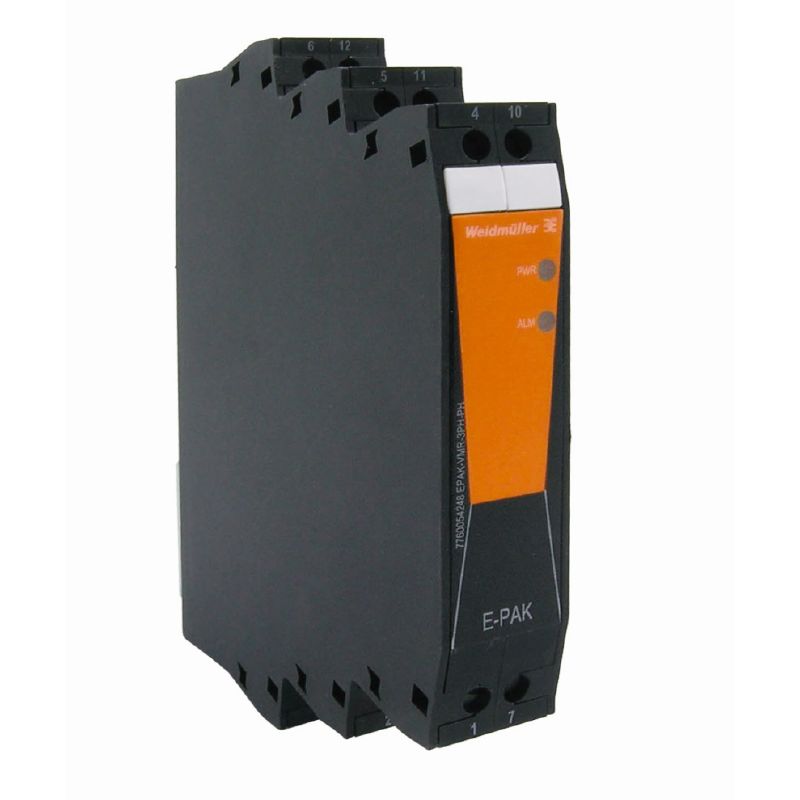

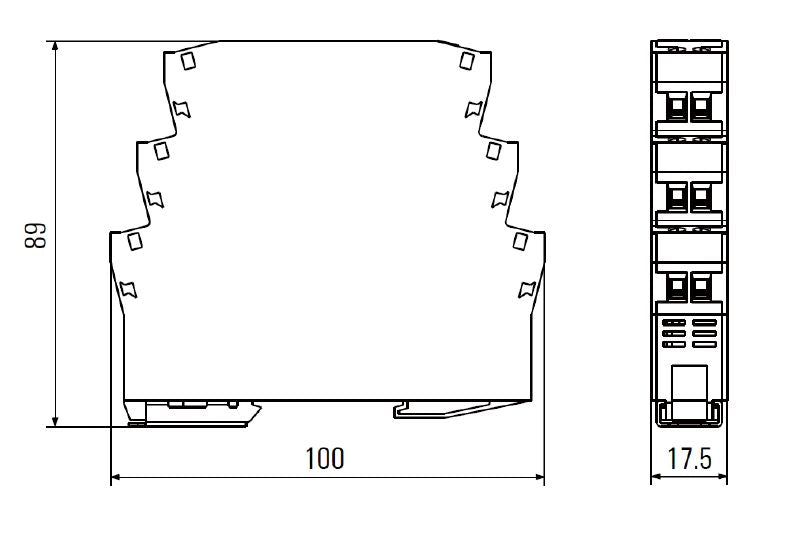

Introducing the EPAK-TMR-PT100-S, a device that meets strict RoHS compliance criteria With dimensions of 89 mm in depth, 100 mm in height, and 175 mm in width (approximately 3504 inches by 3937 inches by 0689 inches), this compact model is engineered for precise temperature monitoring It operates efficiently within an ideal range of -20 °C to 60 °C, while it can endure storage temperatures from -40 °C to 85 °C.

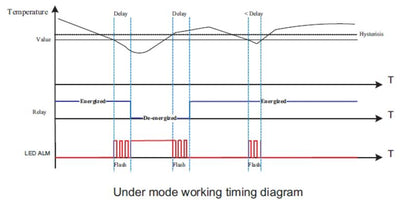

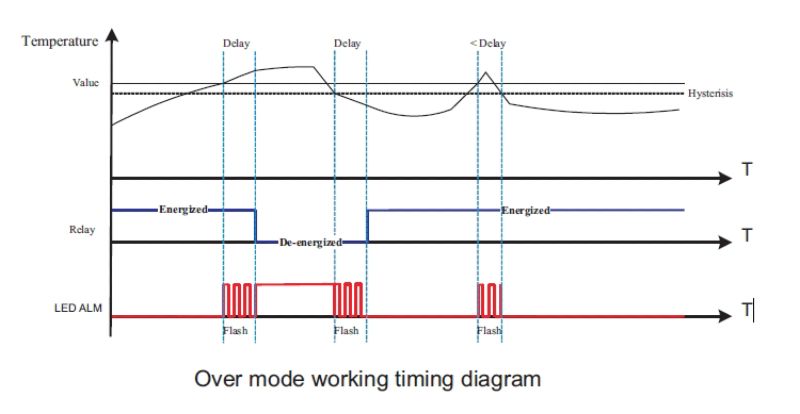

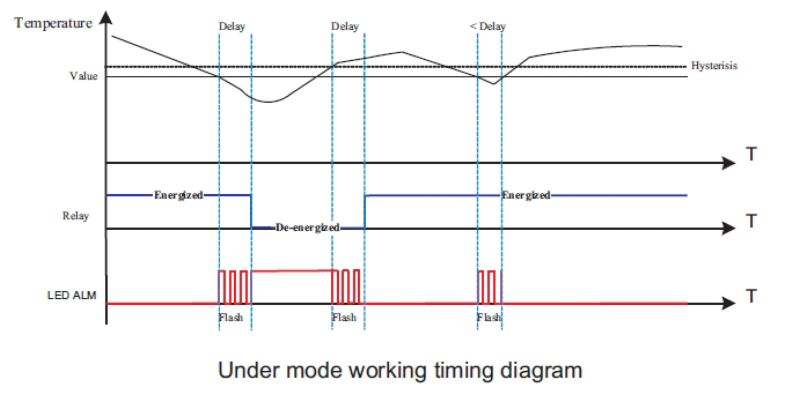

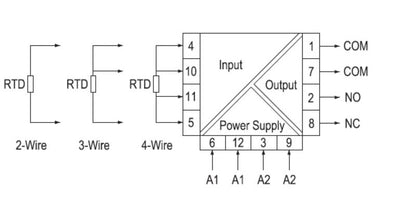

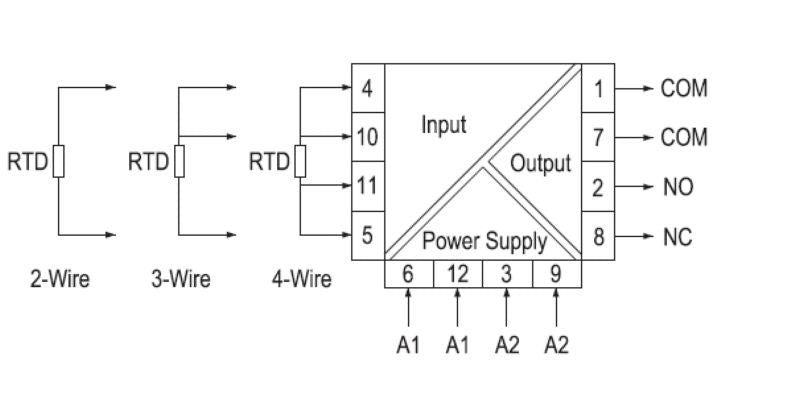

While adhering to RoHS standards, it carries specific exemptions concerning materials, particularly 7a and 7cI, along with its lead specification This device is pre-configured to work with a PT1000 sensor, accurately measuring temperatures from -200 °C to 850 °C Equipped with a factory-set alarm feature, it allows for customization of both upper and lower limits, along with a defined hysteresis of 5 °C for enhanced monitoring.

Features and Benefits:

•Plug-in/output relay type with one normally open contact.

•Operating altitude capability up to 2000 m.

•Low power consumption rated under 60 mA at 24 VDC.

•IP20 protection rating.

Specifications:
