8965370000 - Digital Signal Isolator for NAMUR Sensors with Dual Relay Output

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the ACT20X-2HDI-2SDO-RNO-S, a reliable digital signal isolating converter tailored for NAMUR sensors and switches This innovative device is equipped with a secure relay output utilizing a normally open contact across two channels, making it a versatile choice for a variety of applications Its design allows for both horizontal and vertical mounting, offering flexibility in installation Capable of processing input frequencies below 20 Hz, this unit is engineered for safety and compliance in potentially explosive environments, adhering to IEC standards for intrinsic safety.

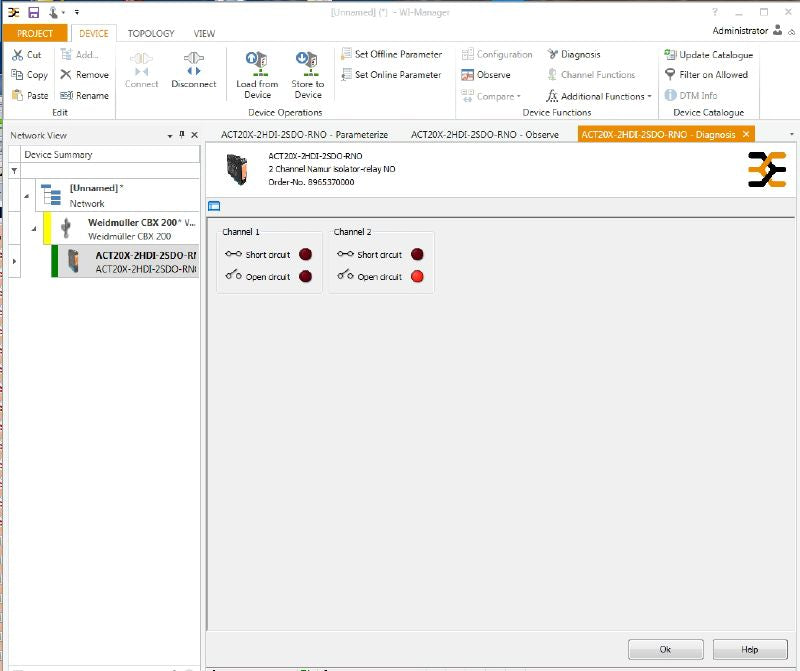

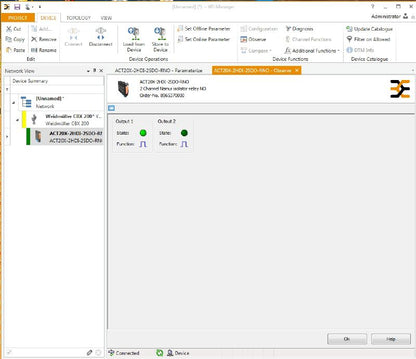

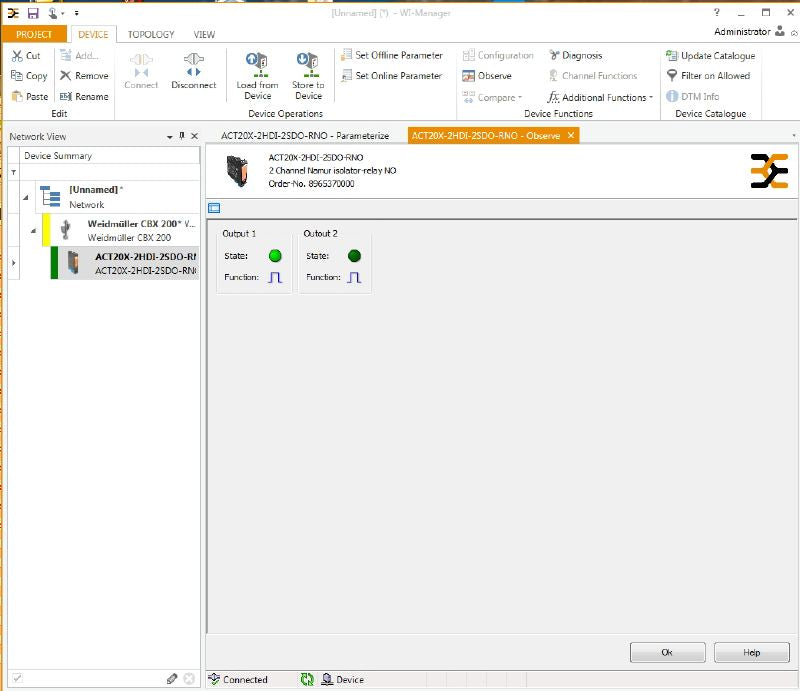

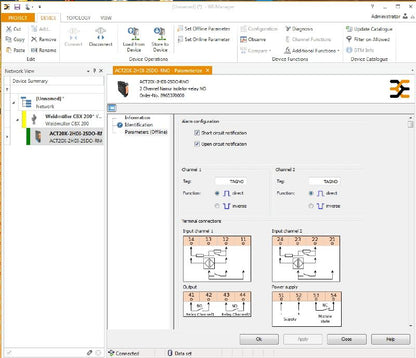

The ACT20X-2HDI-2SDO-RNO-S processes signals from NAMUR sensors in line with EN 60947-5-6 standards, thus expanding its utility Configuration is user-friendly thanks to FDT/DTM software support, while comprehensive diagnostics—including alarm functions for device errors—ensures optimal performance and ease of monitoring.

Features and Benefits:

•Designed for safe output relay with normally open contact.

•Mounting can be horizontal or vertical.

•Digital signal isolation for potentially explosive atmospheres.

•Configured using standard FDT/DTM software.

•Includes alarm relay for system status and errors.

•Signal processing for NAMUR sensors according to EN 60947-5-6.

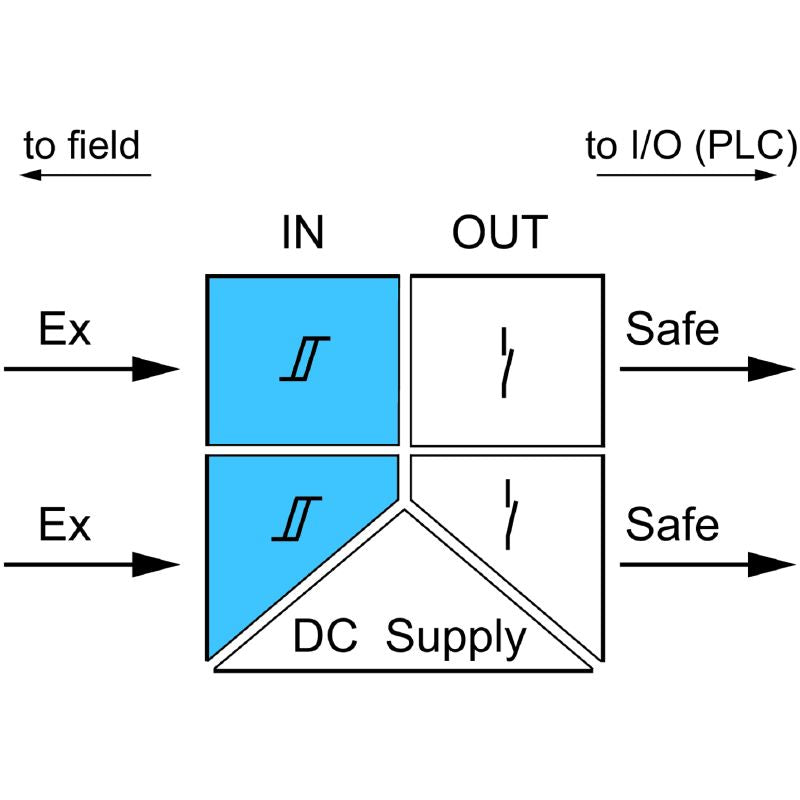

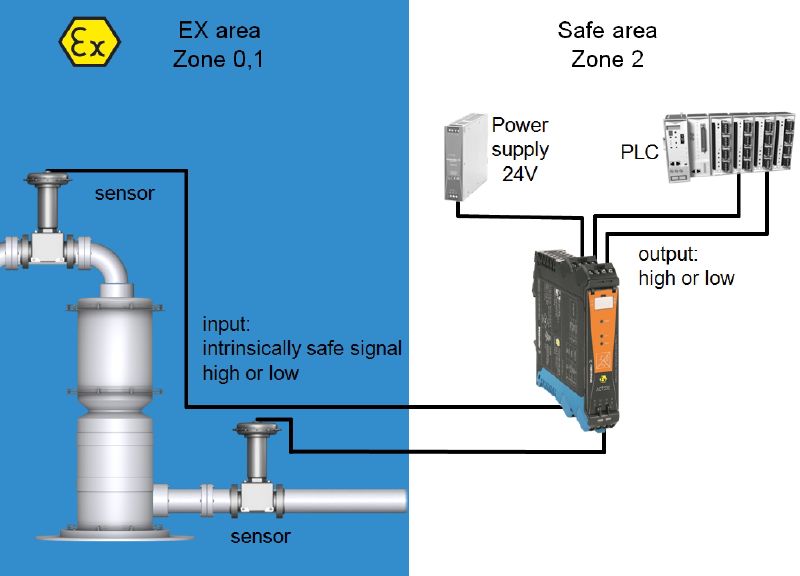

•Isolation of NAMUR sensor signals from Ex zones to safe areas.

•Works in hazardous environments while ensuring safety compliance.

Specifications:
