Description:

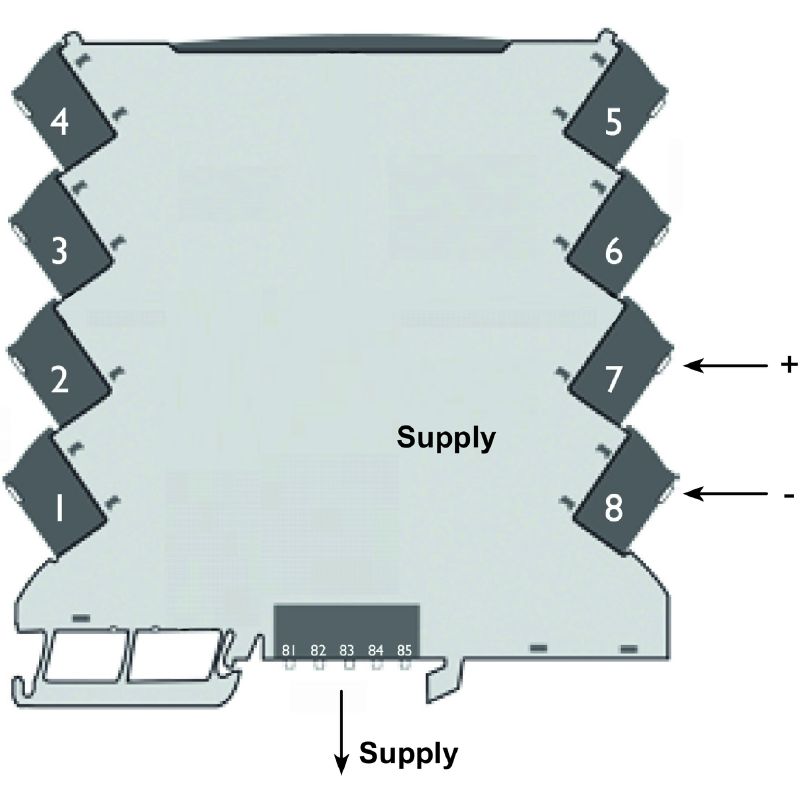

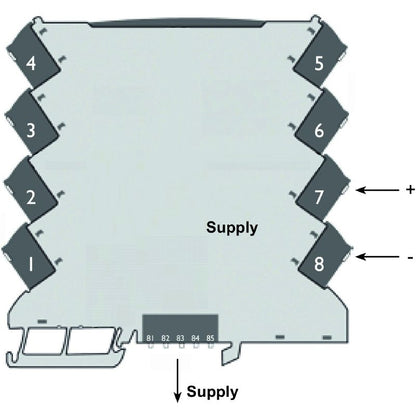

Introducing the ACT20-FEED-IN-BASIC-S module, engineered to efficiently distribute supply voltage to your rail bus This versatile device functions within an input voltage range of 216 to 264 V DC, accommodating a maximum input current of 25 A It provides a stable 24 V DC output and is specifically tailored for compatibility with the Weidmüller CH20M DIN-rail bus Adhering to RoHS regulations, this module also features an IP20 protection degree, ensuring reliability and safety during operation.

Features and Benefits:

•Screw connection type.

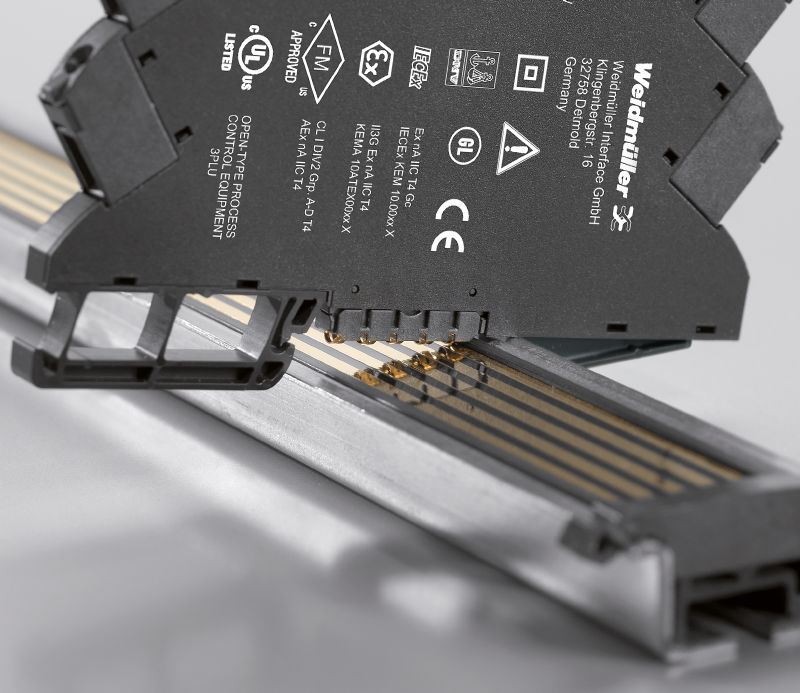

•Compatible with Weidmüller CH20M DIN-rail bus.

•Input current limited to a maximum of 2.5 A.

•Protection degree of IP20.

•Complies with EMC standards EN 61326-1.

Specifications:

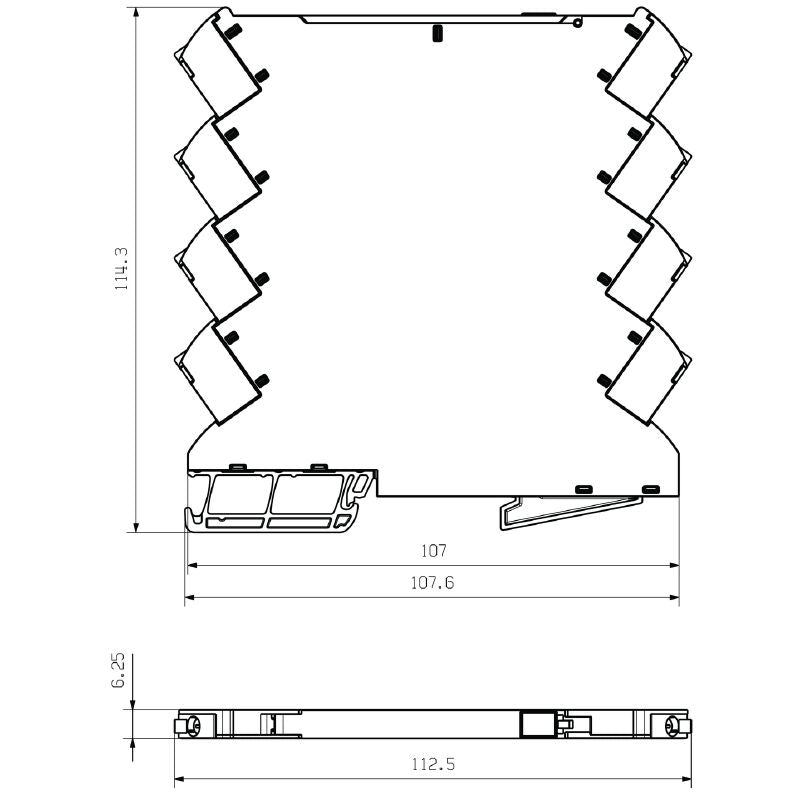

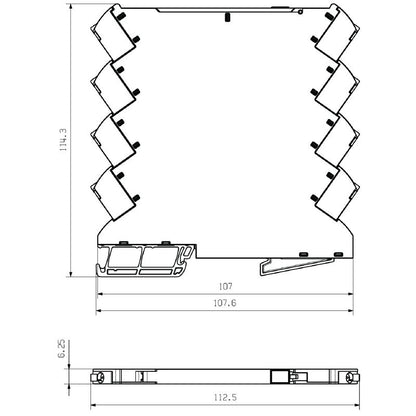

Depth	114.3 mm
Height	112.5 mm
Width	6.1 mm
Net weight	83 g
Storage temperature	-20 °C to 85 °C
Ambient temperature	-25 °C to 70 °C
Operating temperature	-20 °C to 60 °C
Input current	0.5 to 2.5 A DC
Input voltage	21.6 to 26.4 V DC
Output current	2.5 A
Output voltage	24 V DC
Power consumption, max	1 W
Tightening torque, min	0.4 Nm
Tightening torque, max	0.6 Nm
Clamping range (rated connection)	2.5 mm²
Clamping range (min)	0.5 mm²
Clamping range (max)	2.5 mm²
Wire connection cross section AWG (min)	AWG 30
Wire connection cross section AWG (max)	AWG 14
RoHS Compliance Status	Compliant with exemption
REACH SVHC	Lead 7439-92-1
