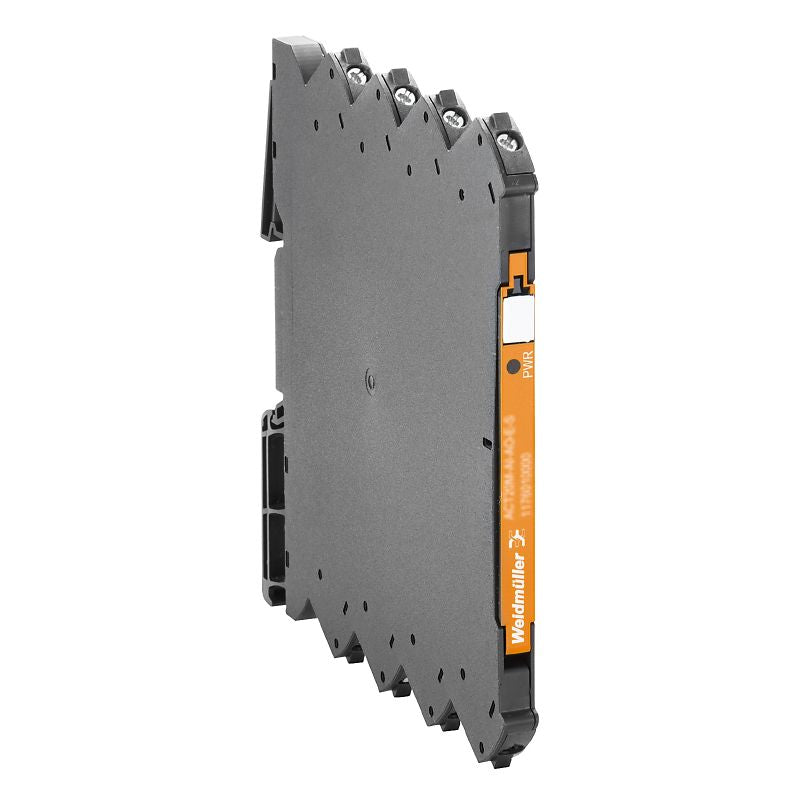

1175980000 - Galvanic Isolating Amplifier for 4-20 mA Signals

1175980000 - Galvanic Isolating Amplifier for 4-20 mA Signals

SKU: 1175980000 Download PDF

Variant:
  • 1175980000 - Galvanic Isolating Amplifier for 4-20 mA Signals
Now $203.71
BEFORE   $0.00 Now $203.71
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

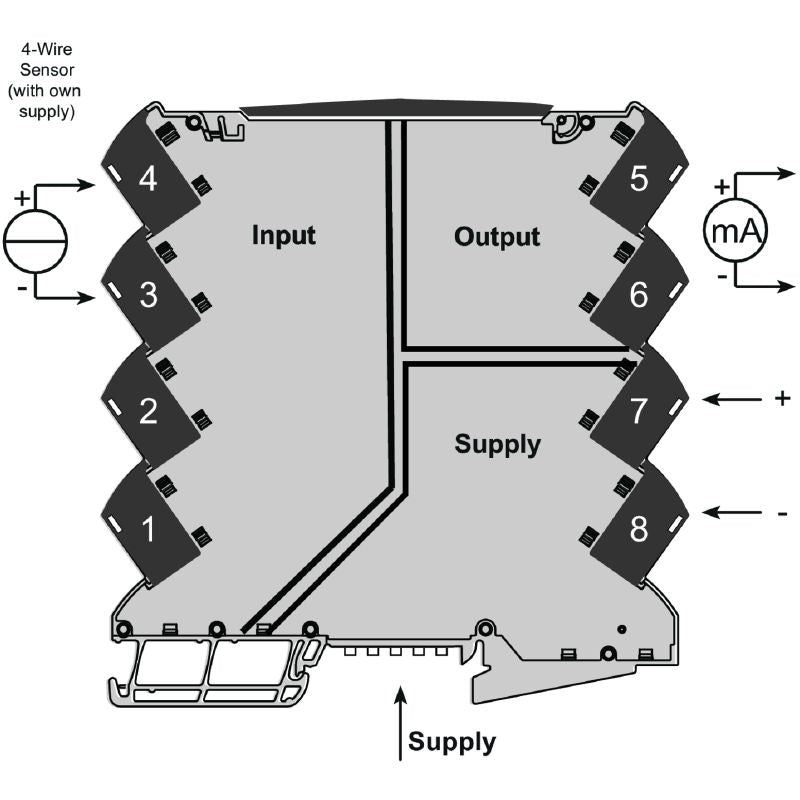

Introducing the ACT20M-CI-CO-S, a reliable signal isolating amplifier expertly designed for handling standard analogue current signals ranging from 0(4)-20 mA for both input and output applications This device features robust galvanic isolation, utilizing a three-way isolation technique to separate the power supply from input and output It effectively safeguards the transmission of current signals, minimizing disturbances and ensuring that your data remains accurate and intact.

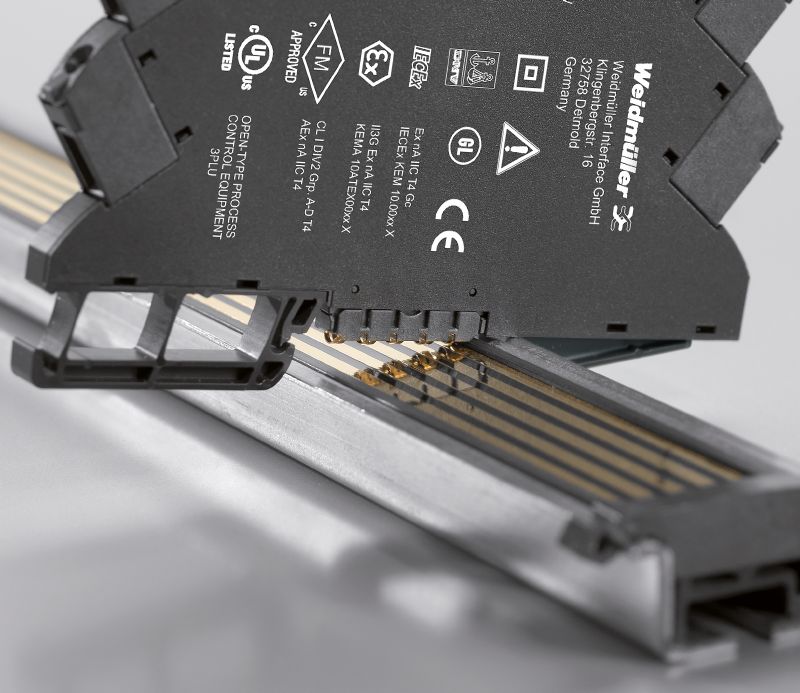

Features and Benefits:

    •Galvanically isolated input and output.

    •1-channel configuration in a compact width of 6.1 mm.

    •Three-way isolation up to 2.5 kV AC/DC.

    •Screw connection for easy installation.

    •Protection degree of IP20.

    •Transmission and isolation of analogue DC current signals.

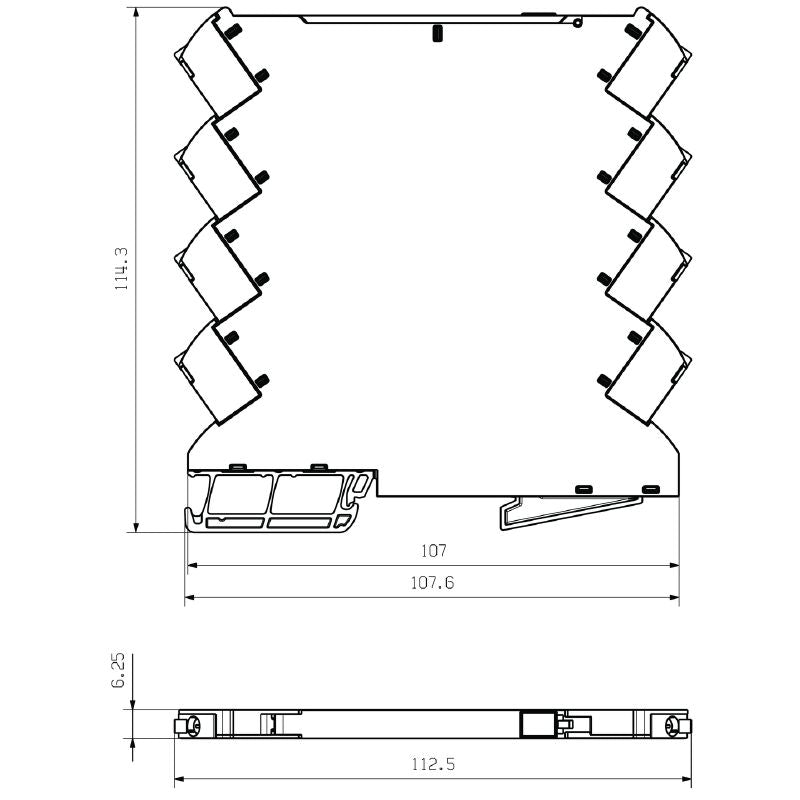

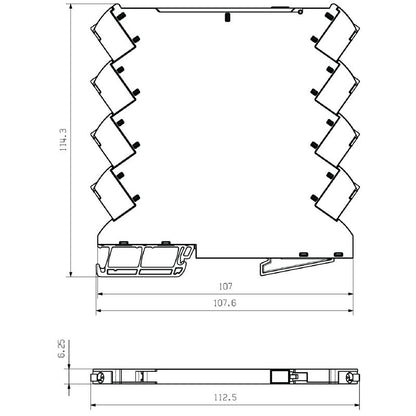

Specifications:

 Input current: 0...20 mA
 Input resistance, current: 70 Ω
 Number of inputs: 1
 Output current: 0...20 mA
 Load impedance current: ≤ 600 Ω
 Number of outputs: 1
 Cut-off frequency (-3 dB): 100 Hz
 Accuracy: <0.05 % of measuring range
 Nominal power consumption: 1.2 VA
 Operating altitude: ≤ 2000 m
 Power consumption, max.: 0.8 W
 Power consumption, typ.: 0.45 W
 Temperature coefficient: ≤ 0.01 % / °C
 Insulation voltage: 2.5 kV
 Rated voltage: 300 V
 Installation location: Device installed in safe area, zone 2
 Type of connection: Screw connection
 Tightening torque, min.: 0.4 Nm
 Tightening torque, max.: 0.6 Nm
 Clamping range, rated connection: 2.5 mm²
 Clamping range, min.: 0.5 mm²
 Clamping range, max.: 2.5 mm²
 Wire connection cross section AWG, min.: AWG 30
 Wire connection cross section AWG, max.: AWG 14
 Protection degree: IP20
 Storage temperature: -40 °C...85 °C
 Operating temperature: -25 °C...70 °C
