1375520000 - RTD Signal Converter with Galvanic Isolation for Accurate Temperature Measurement

Description:

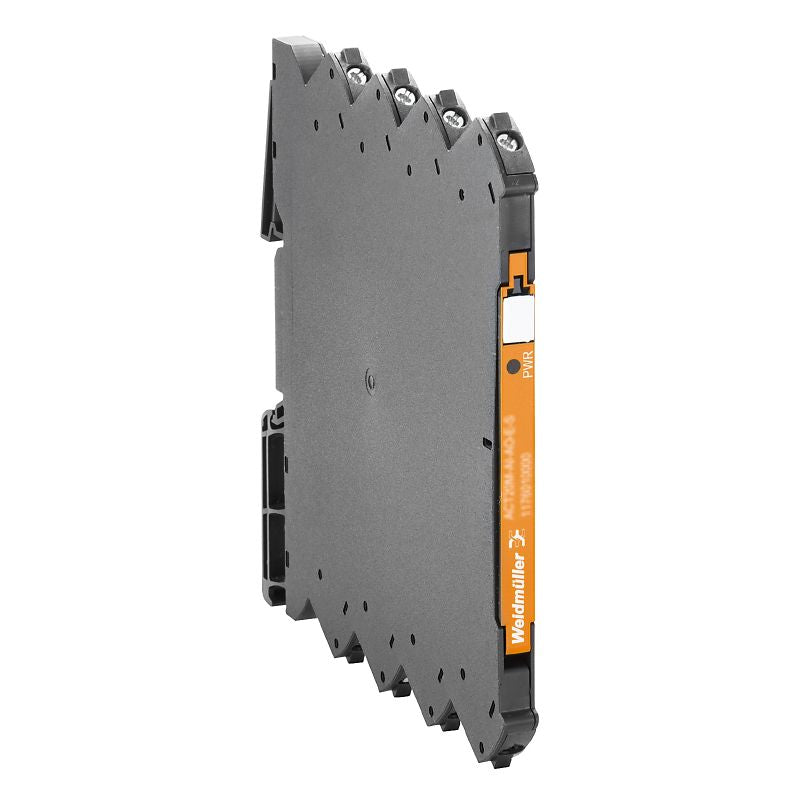

Meet the ACT20M-RTI-AO-S, a versatile temperature transducer that expertly isolates and converts analog signals This innovative device facilitates the transformation of RTD input signals (Type Pt100) into a reliable analog output while ensuring complete galvanic isolation Its power supply is engineered to maintain this isolation for both input and output, whether connected directly or through a Weidmüller rail bus.

For those requiring similar functionalities without galvanic isolation, the ACT20M-RTI-AO-E-S model provides the same performance without this feature.

Features and Benefits:

•Configurable temperature input range.

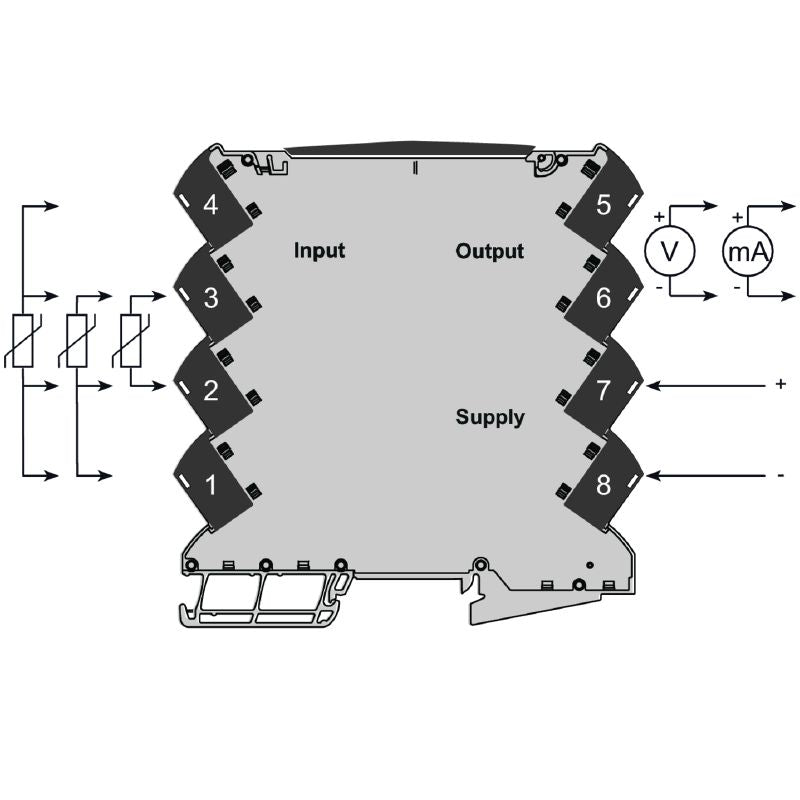

•Includes 1 PT100 sensor input.

•Absolute accuracy under ±0.1% of the measurement range.

•Configurable output current options: 0...20 mA and 4...20 mA.

•Active type output with wire break detection.

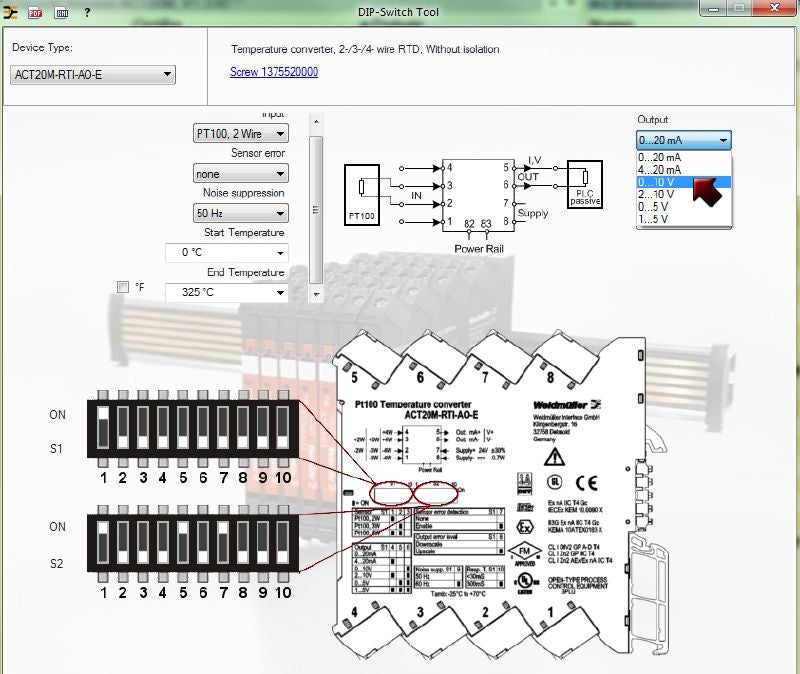

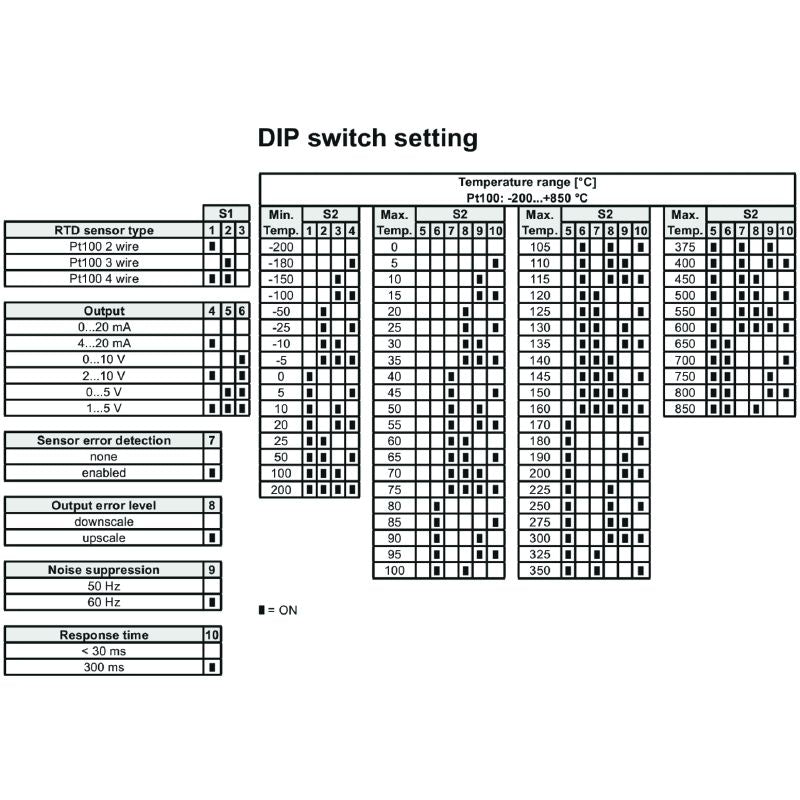

•DIP switch for configuration.

•Protection degree of IP20.

•Supports temperatures from -25 °C to 70 °C.

Specifications:
