Description:
Introducing the EPAK-PCI-VO, a versatile solution engineered for high performance across a range of applications This device measures 89 mm in depth, 100 mm in height, and 175 mm in width, making it compact yet powerful Weighing in at 80 g, it is designed to operate efficiently within standard temperature conditions With ROHS compliance and adherence to numerous environmental standards, the EPAK-PCI-VO guarantees reliable operation while minimizing the chances of failure.
Features and Benefits:
•ROHS compliant with exemption.
•Designed for various environmental conditions.
•Precision accuracy of 0.15 % v. FSR.
•Built with a protection degree of IP20.
•Equipped for easy screw connection installation.
Specifications:

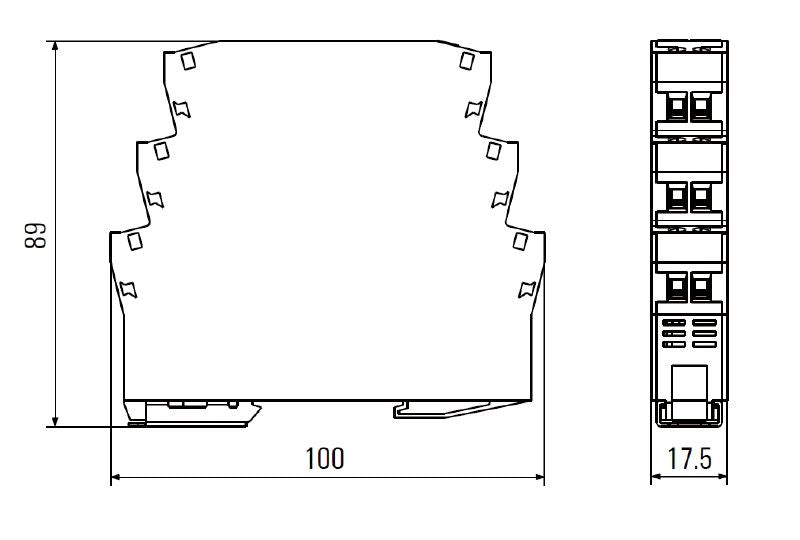

| Depth | 89 mm |
| Height | 100 mm |
| Width | 17.5 mm |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -20 °C...60 °C |

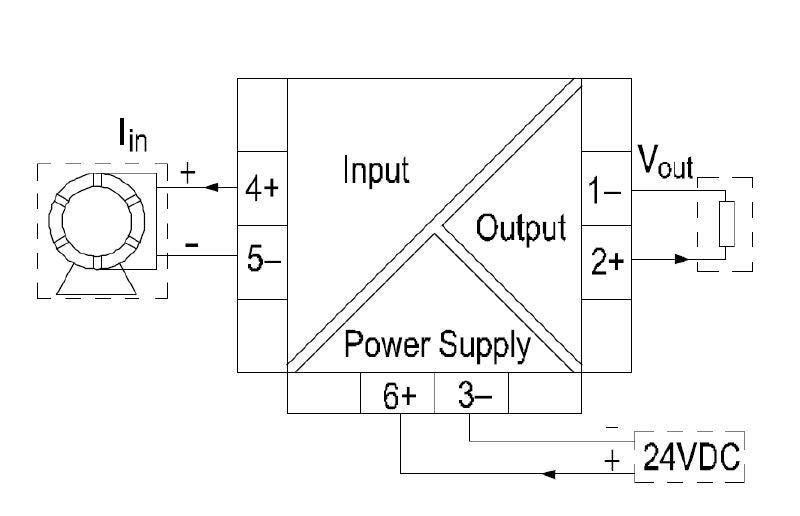

| Input current | 4...20 mA |
| Input resistance | ≤ 100 Ω |
| Sensor supply | ≥ 18 V @ 20 mA |
| Output load impedance voltage | ≥ 10 kΩ |
| Number of outputs | 1 |
| Output voltage | 0...10 V |
| Rated switching current | 0.1 A |
| Number of analogue outputs | 1 |
| Nominal power consumption | 1.7 VA |
| Power consumption | <60mA @ 24VDC |
| Step response time | ≤ 100 ms |
| Supply voltage | 20…30 V DC |
| Temperature coefficient | ≤ 150 ppm/K |
| Insulation coordination | EMC standards EN 61326 |
| Galvanic isolation | between input / output / supply |
| Impulse withstand voltage | 3 kV (1.2/50µs) |
| Insulation voltage | 2 kV |
| Pollution severity | 2 |
| Rated voltage | 300 V AC |
| Surge voltage category | III |
| Type of connection | Screw connection |
| Tightening torque, min. | 0.4 Nm |
| Tightening torque, max. | 0.6 Nm |
| Clamping range, rated connection | 2 mm² |
| Clamping range, min. | 0.5 mm² |
| Clamping range, max. | 2 mm² |
| Wire connection cross section AWG, min. | AWG 30 |
| Wire connection cross section AWG, max. | AWG 14 |
| ETIM 6.0 | EC002653 |
| ETIM 7.0 | EC002653 |
| ETIM 8.0 | EC002653 |
| ETIM 9.0 | EC002653 |
| ETIM 10.0 | EC002653 |
| ECLASS 9.0 | 27-21-01-20 |
| ECLASS 9.1 | 27-21-01-20 |
| ECLASS 10.0 | 27-21-01-20 |
| ECLASS 11.0 | 27-21-01-20 |
| ECLASS 12.0 | 27-21-01-20 |
| ECLASS 13.0 | 27-21-01-20 |
| ECLASS 14.0 | 27-21-01-20 |
| ECLASS 15.0 | 27-21-01-20 |
