1435590000 - Passive Temperature Transducer for RTD/Thermocouples with Isolation

1435590000 - Passive Temperature Transducer for RTD/Thermocouples with Isolation

SKU: 1435590000   Download PDF

Select a Variant:
  • 1435590000 - Passive Temperature Transducer for RTD/Thermocouples with Isolation
Qty:
Now $197.37   Web pricing policy
BEFORE   $0.00 Now $197.37 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the ACT20M-RTCI-CO-OLP-S passive temperature transducer, engineered to offer galvanic isolation while seamlessly transforming analog signals from RTDs or thermocouples into a linear analog output Its unique design is powered through the output measurement circuit, guaranteeing dependable performance across a range of applications.

Features and Benefits:

    •Galvanic isolation.

    •Configurable analog output.

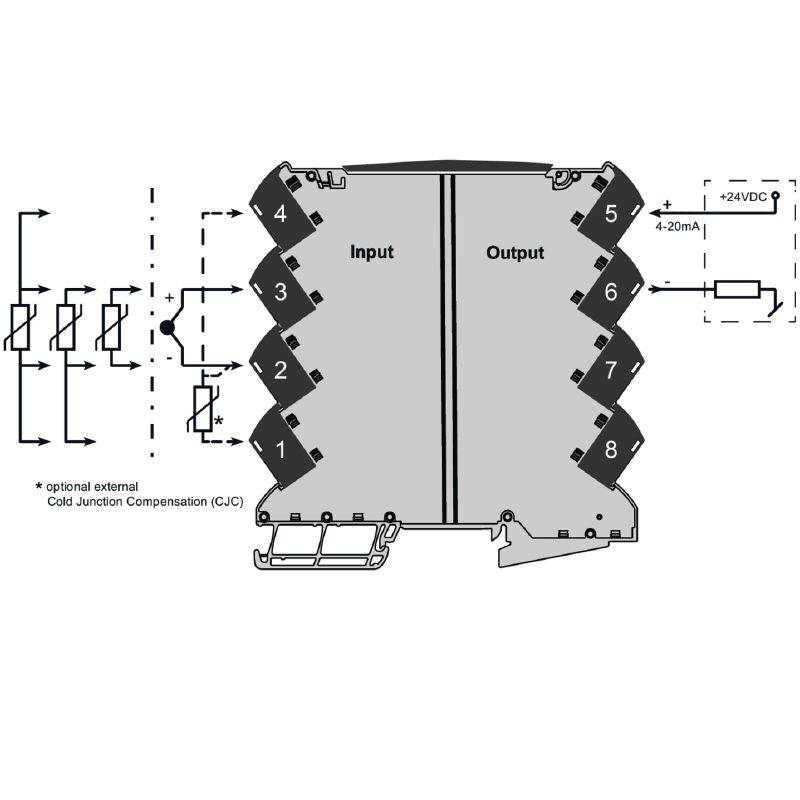

    •Supports PT100 and thermocouple inputs.

    •Power supplied from the output measurement circuit.

    •Wide operational temperature range.

Specifications:

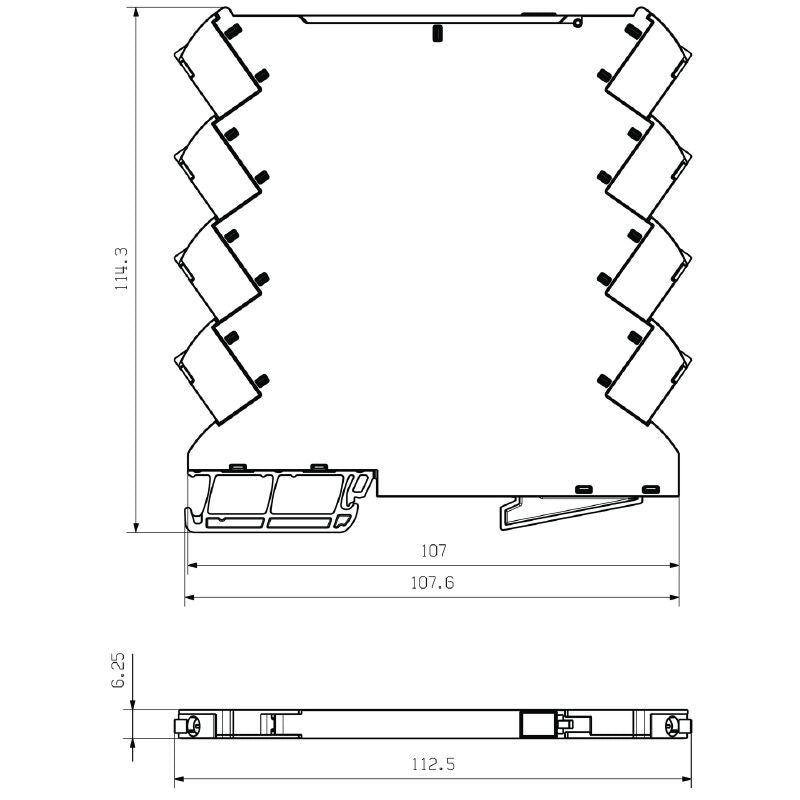

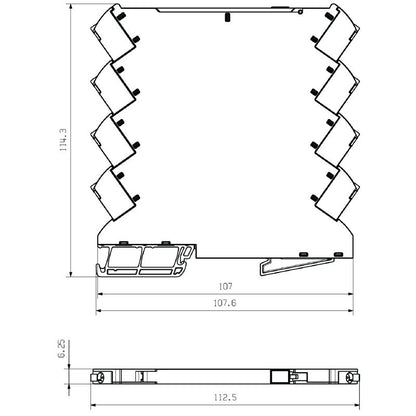

 Depth 114.3 mm
 Height 112.5 mm
 Width 6.1 mm
 Net weight 80 g
 Storage temperature -40 °C to 85 °C
 Operating temperature -25 °C to 70 °C
 Humidity at operating temperature 0 to 95 %
 Input: Number of inputs 1
 Temperature input range PT100 -200 to +850 °C
 Output current Configurable 4...20 mA or 20...4 mA
 Supply voltage 16.8 V to 31.2 V
 Accuracy Absolute accuracy: <±0.05 % of the measurement range
 MTBF 207 a

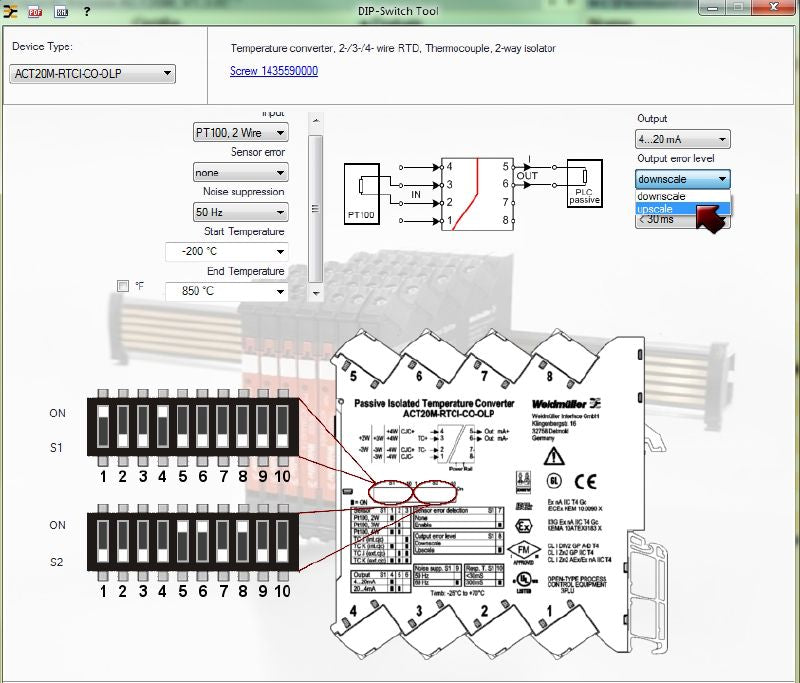

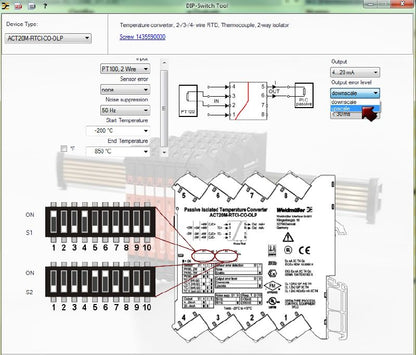

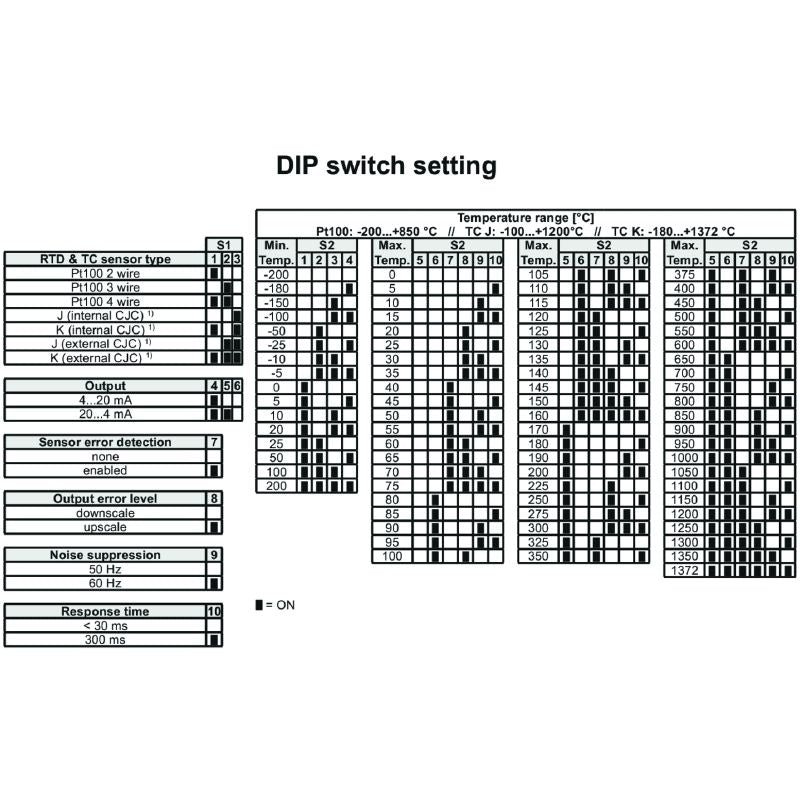

 DIP switch configuration Yes
 Protection degree IP20
 Wire connection cross section AWG Minimum AWG 30, Maximum AWG 14
 Insulation voltage 2.5 kV
 Rated voltage 300 V
