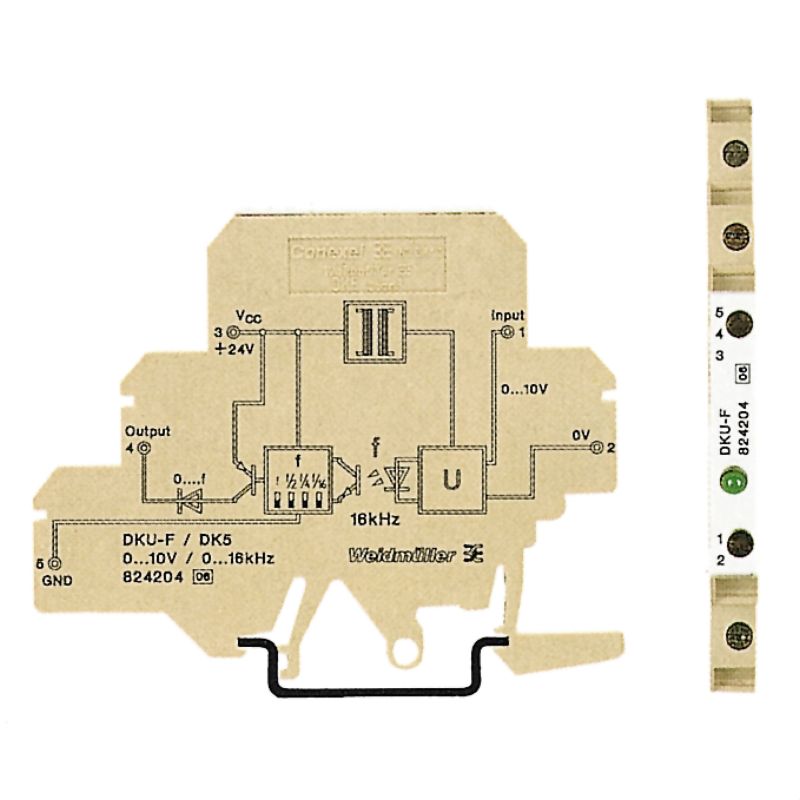

8242040000 - DC Transformer 0-10V, 76.8mm x 12mm x 64mm, 0-16kHz (Pack of 10)

Description:

Introducing the DK U-F DK5 0-10V, an efficient DC/f transformer that accepts a 0-10V input and generates an adjustable output frequency of either 0, 1, 4, 8, or 16 kHz Compactly designed with dimensions of 768 mm in length, 12 mm in width, and 64 mm in height, this device is built to operate effectively in temperatures ranging from 0 °C to 60 °C, while comfortably withstanding storage conditions from -25 °C to 60 °C.

Perfect for various applications, it combines functionality and reliability.

Features and Benefits:

•Input resistance of 100 kΩ.

•Output current of 20 mA.

•Compliant with RoHS and has specific exemptions.

•One input and one output.

•Accuracy of 0.2 % v. FSR.

•Current consumption of 14 mA without load.

•IP20 protection degree.

•Screw connection type.

•Galvanic isolation with a 2-way isolator.

Specifications:
