2456110000 - EX Signal Isolating Converter for Hazardous Areas, Single Channel

Description:

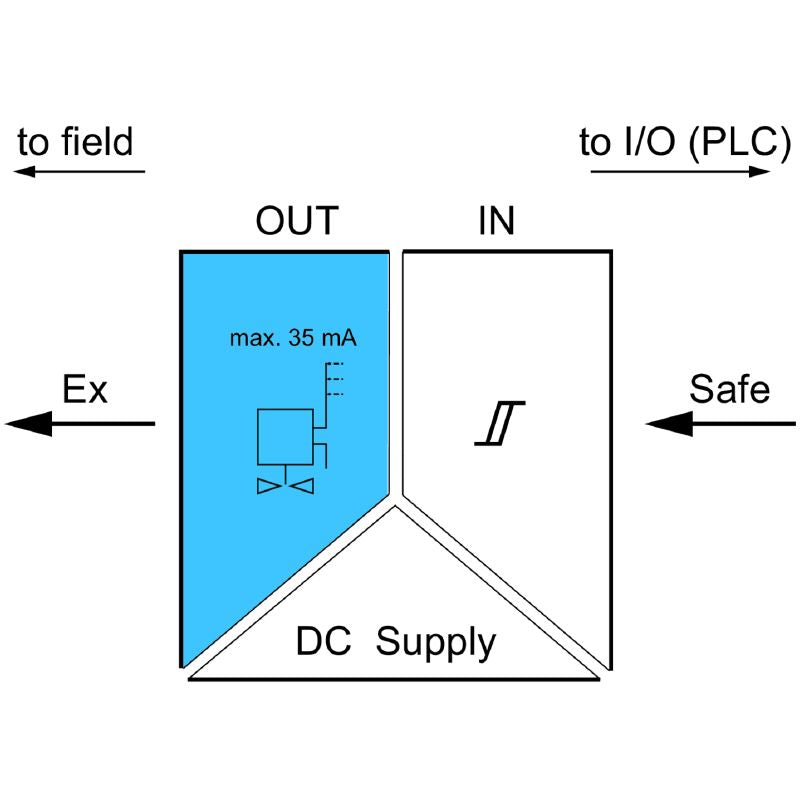

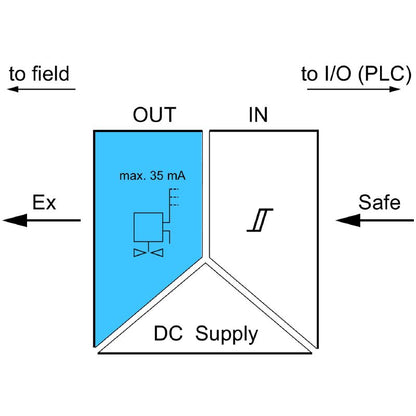

Introducing the ACT20X-SDI-HDO-L-P, a reliable EX signal isolating converter crafted to ensure safe signal input via a relay, delivering Ex output through an opto module on a single channel Engineered to meet essential safety regulations, including RoHS, this converter boasts a sturdy design suitable for a range of hazardous environments It can be easily installed in both horizontal and vertical orientations and operates efficiently in temperature ranges from -20 °C to 60 °C, guaranteeing consistent performance.

Features and Benefits:

•Features solenoid valve switch/alarm transmitter suitable for controlling solenoids and alarms in hazardous environments..

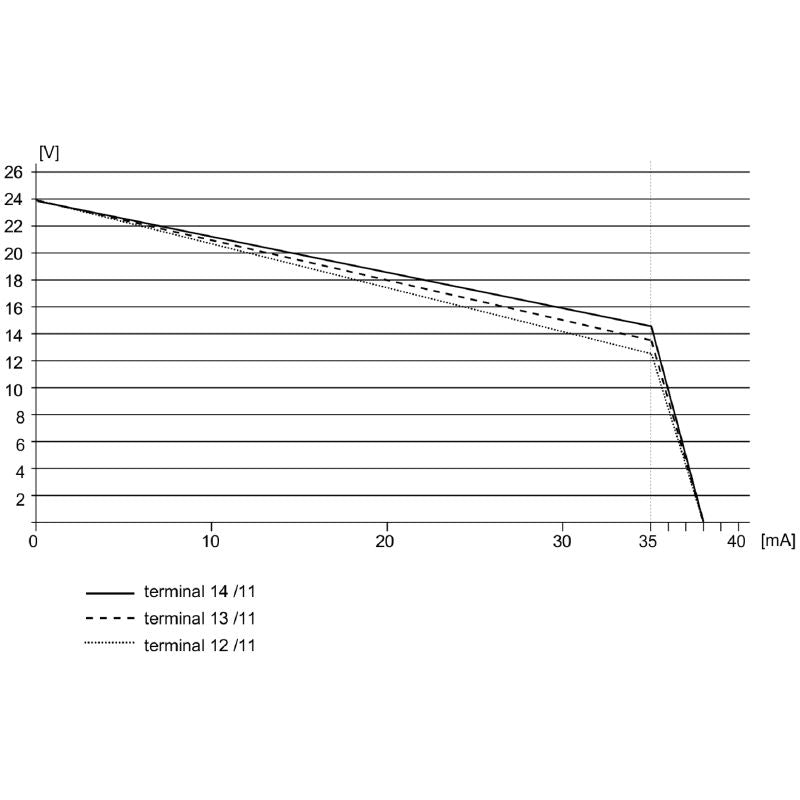

•Available in configurations with either 35 mA or 60 mA output current..

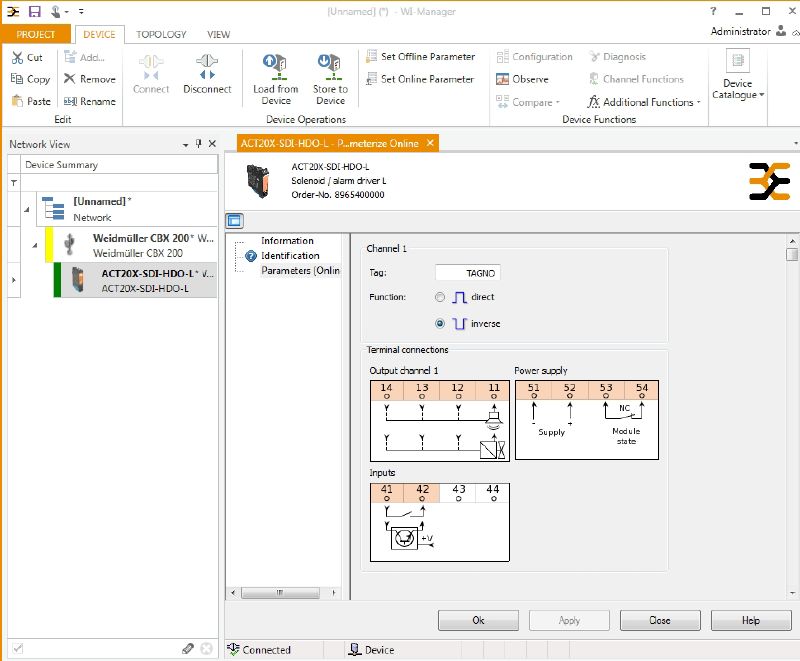

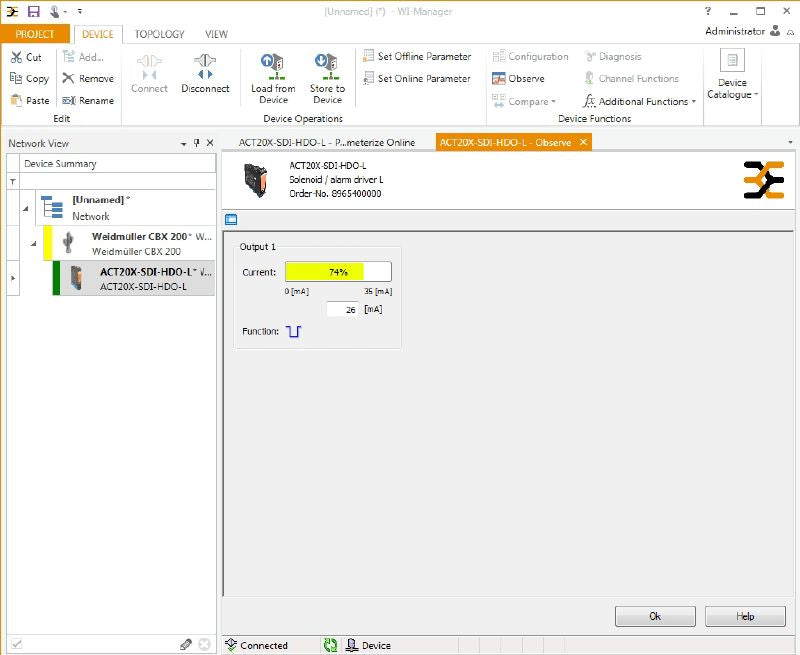

•Supports configuration and diagnostics via the specified software..

•Allows either direct or inverted function selection for each channel..

•Extended self-diagnostic capabilities with error event monitoring through the status relay..

•LED indicators for operational status and malfunctions..

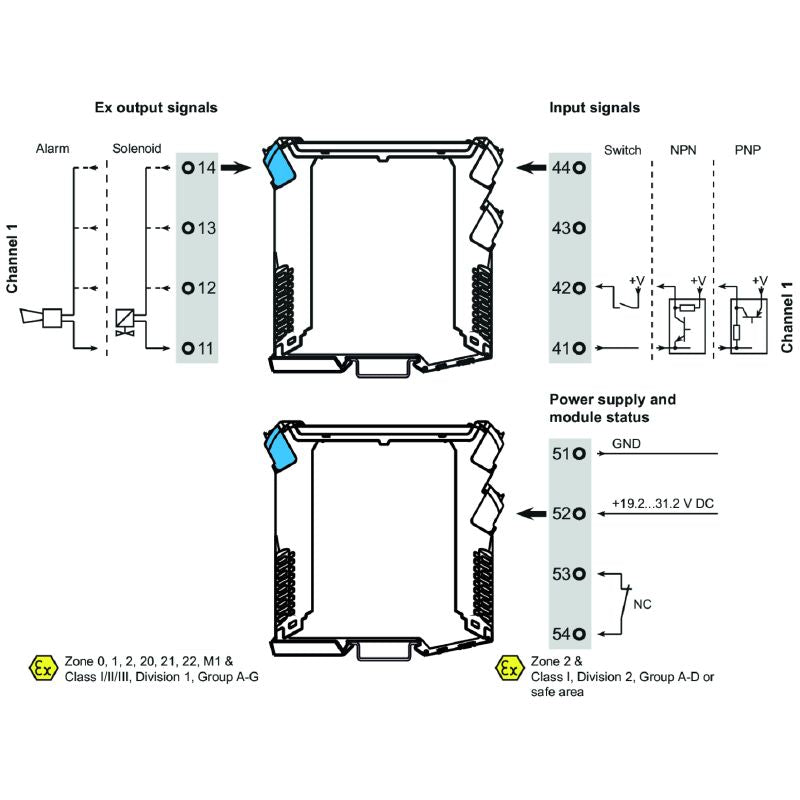

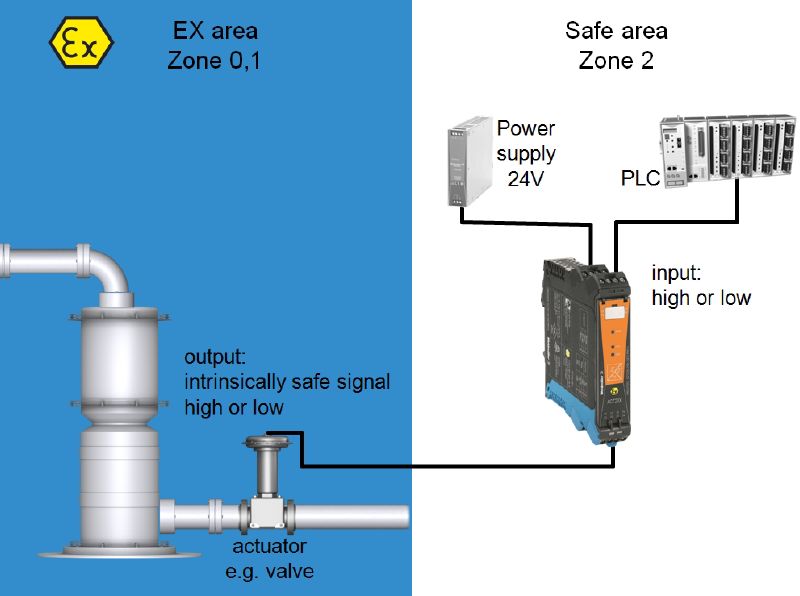

•Designed for switching magnetic valves or alarm transmitters in hazardous areas..

Specifications:
