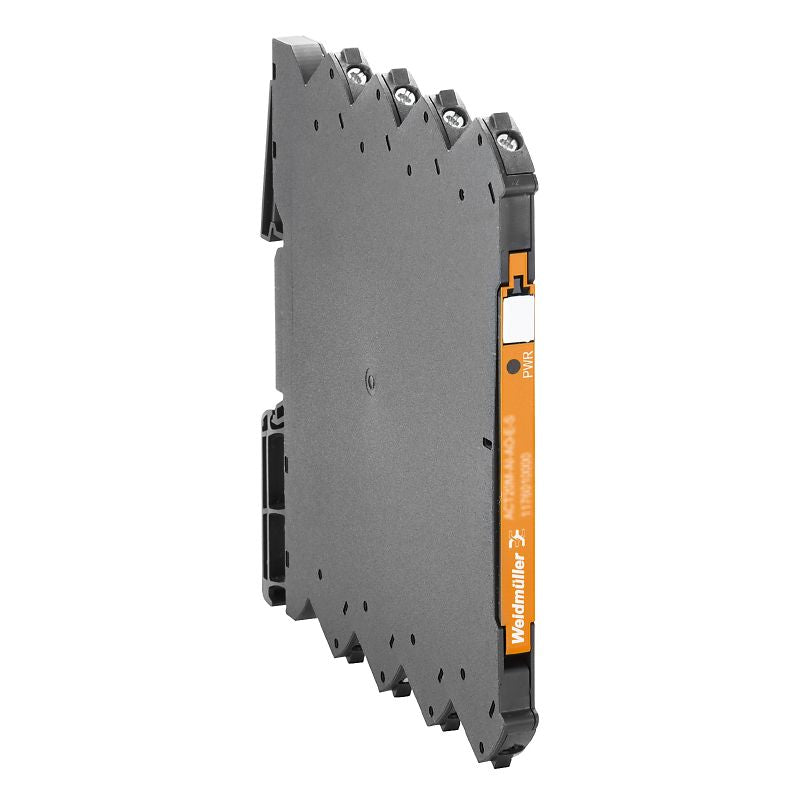

1176040000 - Single-Channel Passive Isolator for 4-20 mA Signals

Description:

Introducing the ACT20M-CI-CO-OLP-S, a reliable single-channel passive isolator designed to process standard analogue current signals ranging from 4 to 20 mA while providing galvanic isolation This device draws power directly from the output circuit and operates effectively in a wide temperature spectrum of -25 °C to +70 °C, making it versatile enough for diverse settings It meets rigorous standards including RoHS and ATEX, assuring you of its quality and compliance with industry norms.

Features and Benefits:

•Galvanic isolation of input and output signals.

•Suitable for use in hazardous areas (ATEX Zone 2).

•Operates on output loop power.

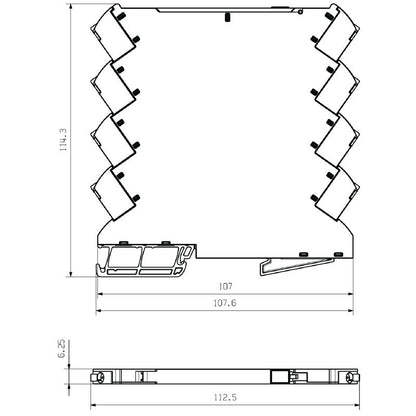

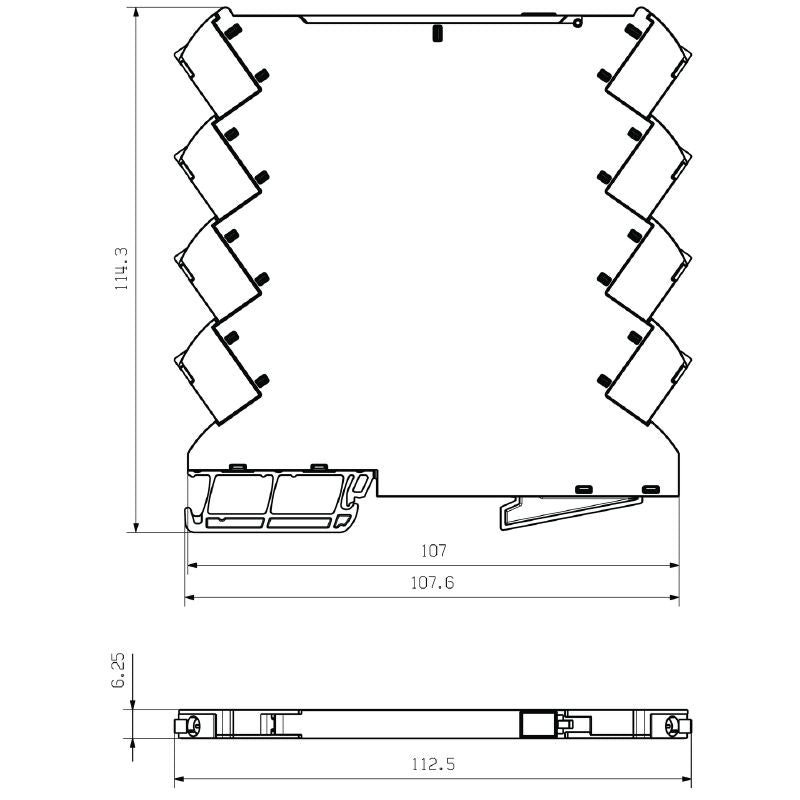

•Compact design with a width of only 6.1 mm.

•High accuracy with less than 0.05% of measuring range.

•Transmitting and isolating analogue DC current signals in industrial automation.

Specifications:
