2456130000 - Dual-Channel Solenoid Valve Switch for Hazardous Zones

Description:

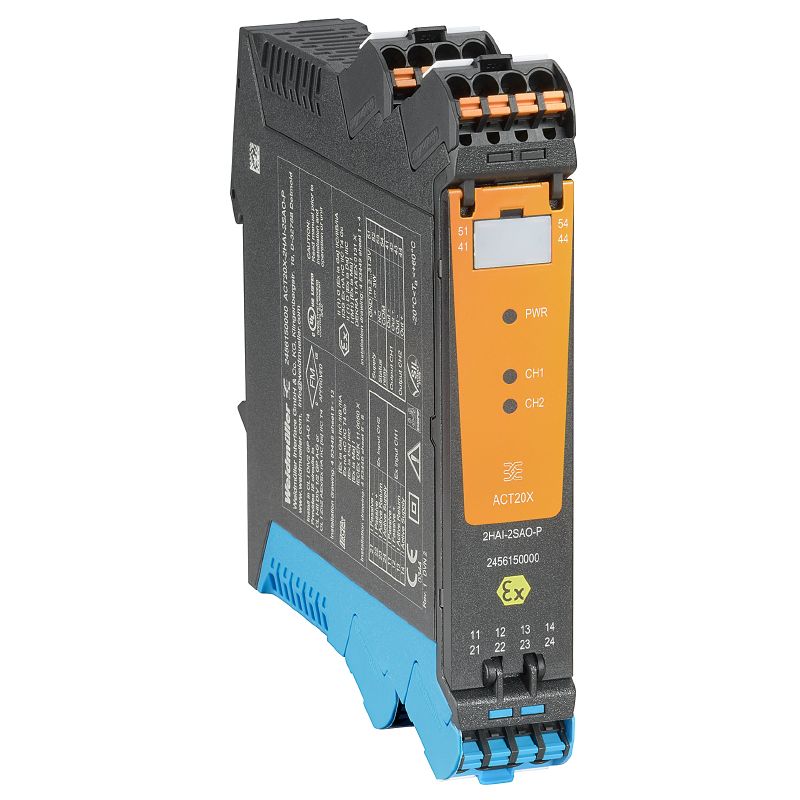

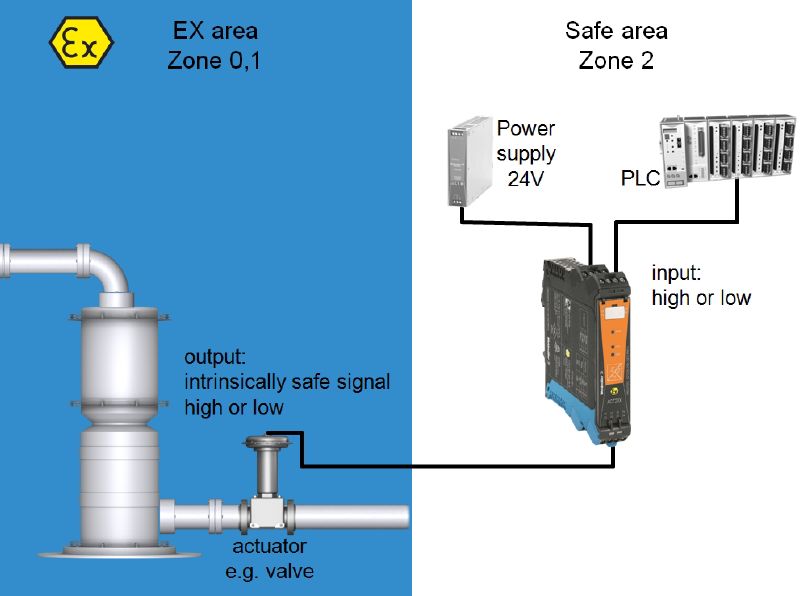

Introducing the ACT20X-SDI-HDO-S solenoid valve switch and alarm transmitter, expertly crafted for versatile use in various environments This device features an input suited for safe, non-hazardous areas while maintaining an output capability in hazardous Zone 0 Ideal for managing magnetic valves or alarm systems, it is available in both single-channel and dual-channel options, catering to diverse control needs.

Features and Benefits:

•Solenoid valve switch / alarm transmitter for controlling solenoids, acoustic alarms, and LEDs in hazardous areas.

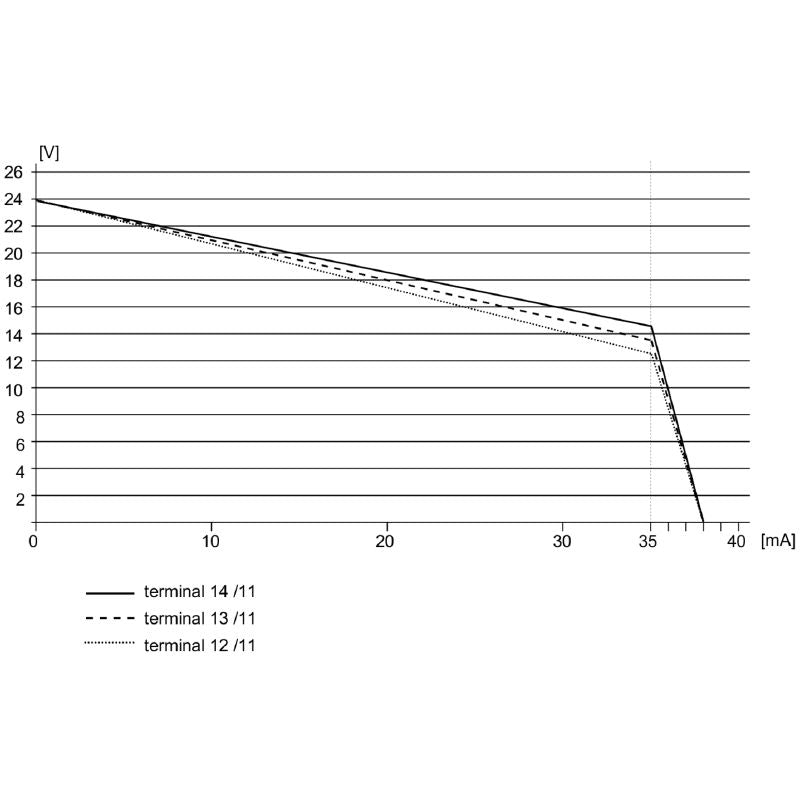

•Available in two output current options, 35 mA or 60 mA, in both single-channel and dual-channel configurations.

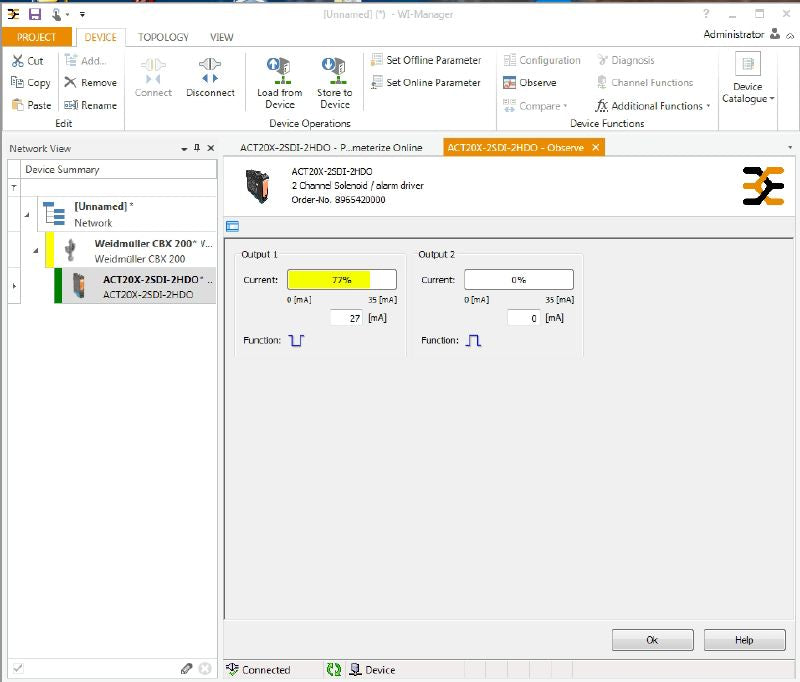

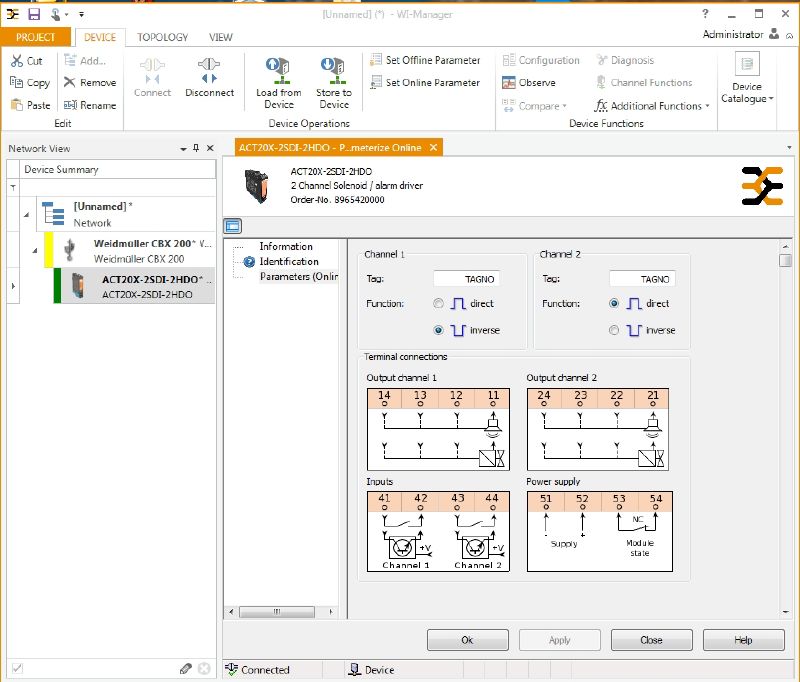

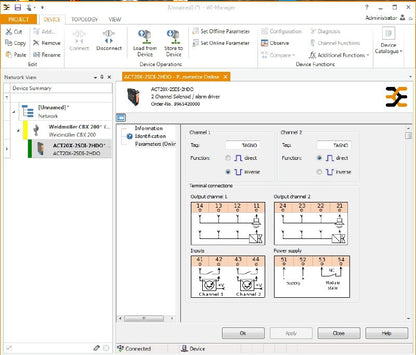

•Configuration and diagnostic capabilities via FDT/DTM Software 'WI-Manager'.

•Options for selecting direct or inverted functions per channel, with a current reduction feature for hazardous areas.

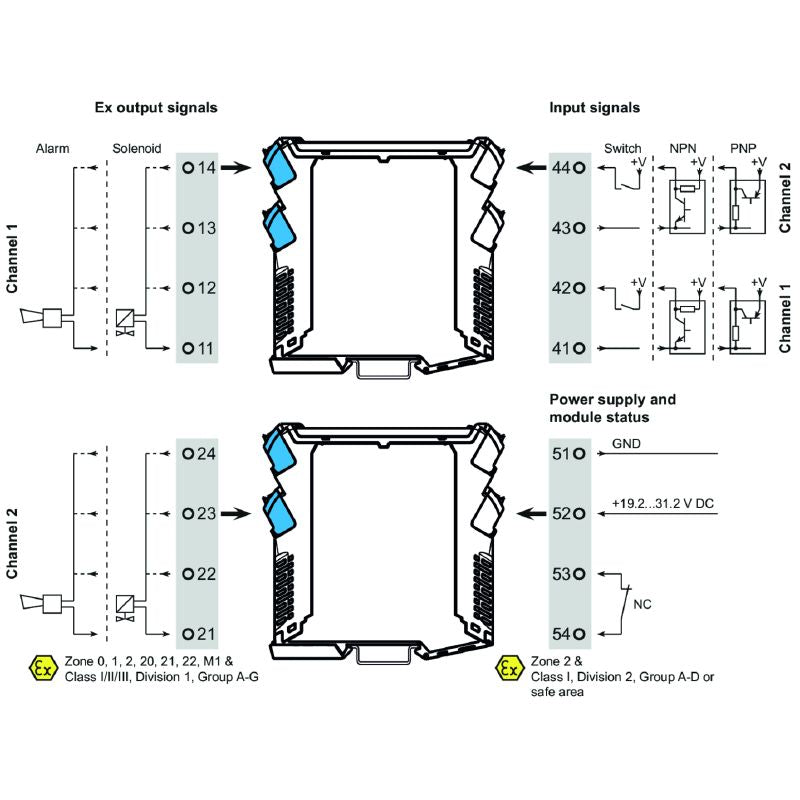

•Installation options include safe areas and Zone 2 / Division 2, while receiving signals from Zone 0, 1, 2, 20, 21, and 22, along with Class I/II/III, Division 1, Groups A-G.

•Enhanced self-diagnosis with error event monitoring via the individual status relay.

•Visual alerts are provided through a green LED and two yellow/red front LEDs indicating operational status and malfunctions.

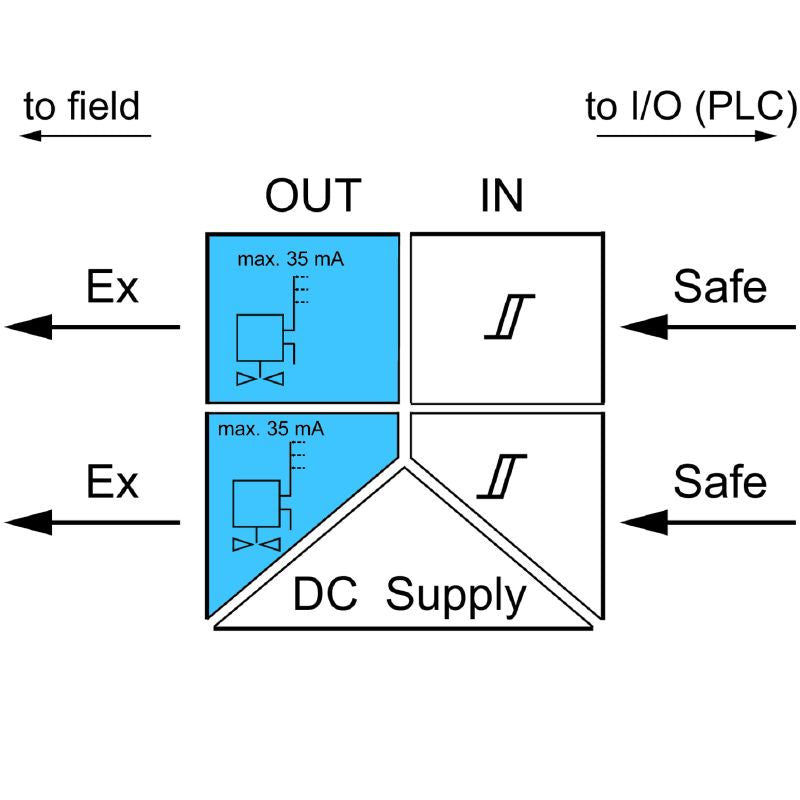

•Offers three-way galvanic isolation among input, output, and power supply.

Specifications:
