2514640000 - Analog Signal Isolator with 3-Way Galvanic Isolation

2514640000 - Analog Signal Isolator with 3-Way Galvanic Isolation

SKU: 2514640000 Download PDF

Variant:
  • 2514640000 - Analog Signal Isolator with 3-Way Galvanic Isolation
Now $198.37
BEFORE   $0.00 Now $198.37
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the ACT20P-CI-VO, a reliable solution for isolating and converting analog standard current signals This device can effectively isolate signals sourced from either a power supply or 2-wire/3-wire sensors It offers linear conversion of input current signals while providing robust galvanic isolation, resulting in a stable analog output voltage signal With a feature of complete 3-way isolation, both the input and output remain completely separate from the power source for enhanced safety and performance.

Features and Benefits:

    •The inputs for both active and passive mA current signals are fully electrically isolated..

    •Front LED displays the operation status..

    •Provides 3-way galvanic isolation between the input, output, and power supply..

Specifications:

 Depth 113.7 mm
 Height 127.1 mm
 Width 12.5 mm
 Net weight 140 g
 Storage temperature -40 °C to 85 °C
 Operating temperature -20 °C to 60 °C
 Humidity at operating temperature 0 to 95 % (no condensation)
 Input current 0 to 20 mA, 4 to 20 mA
 Number of inputs 1

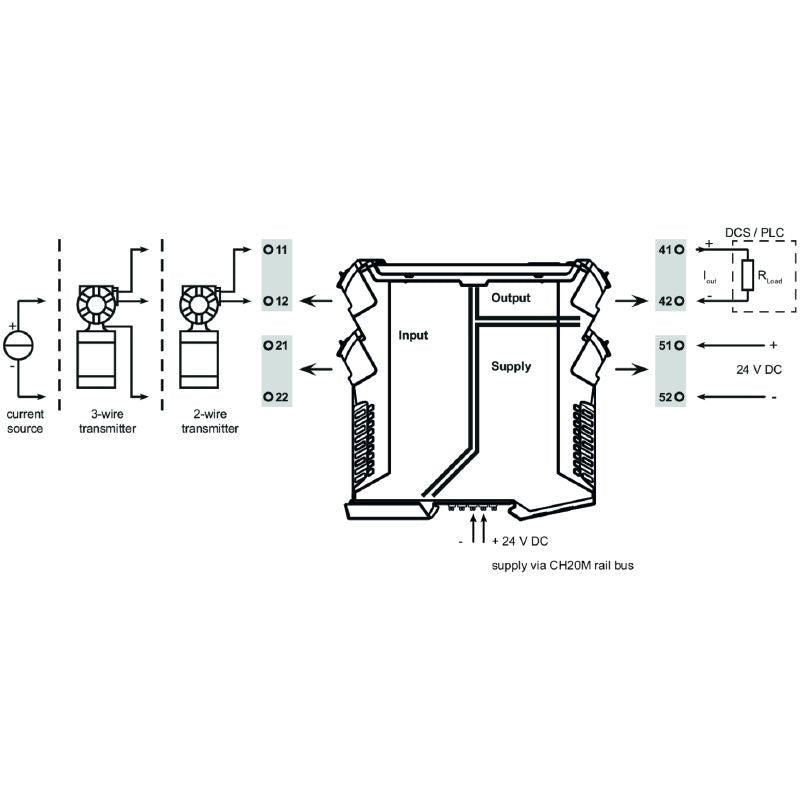

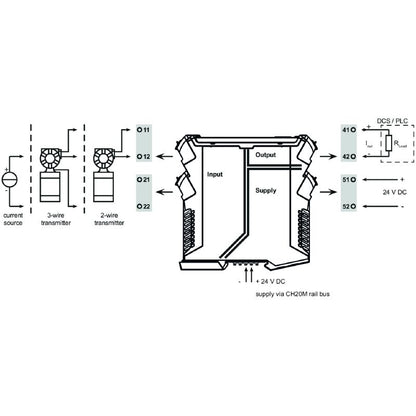

 Sensor types 2-wire transmitter, 3-wire sensor, 4-wire sensor
 Output voltage 0 to 10 V for 0 to 20 mA input, 2 to 10 V for 4 to 20 mA input
 Number of outputs 1
 Protection degree IP20
 Power supply 20 to 30 V DC
 Accuracy <0.1 % of end value
 Power consumption ≤60 mA (24V power supply, 20mA output)
 Mounting rail TS 35
