Description:

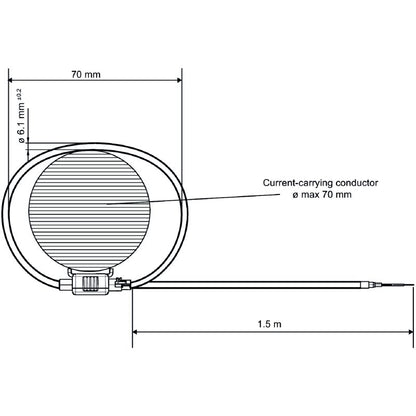

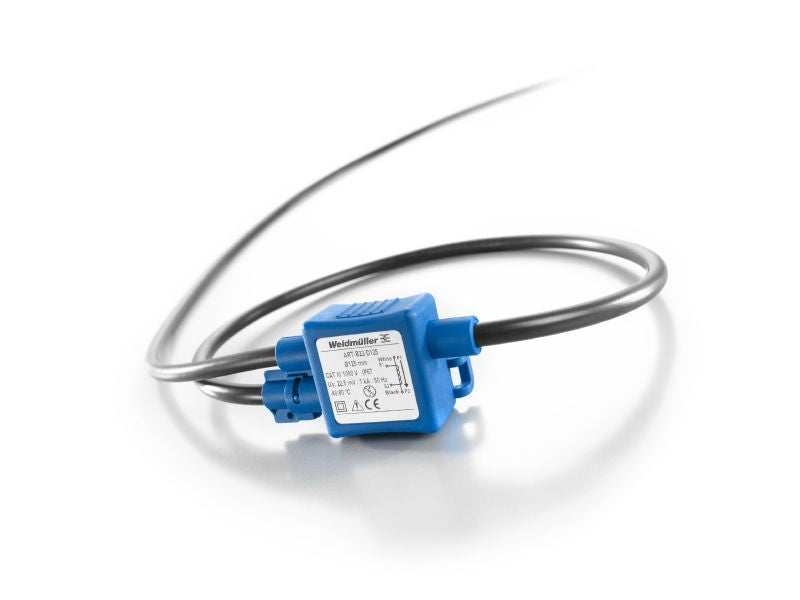

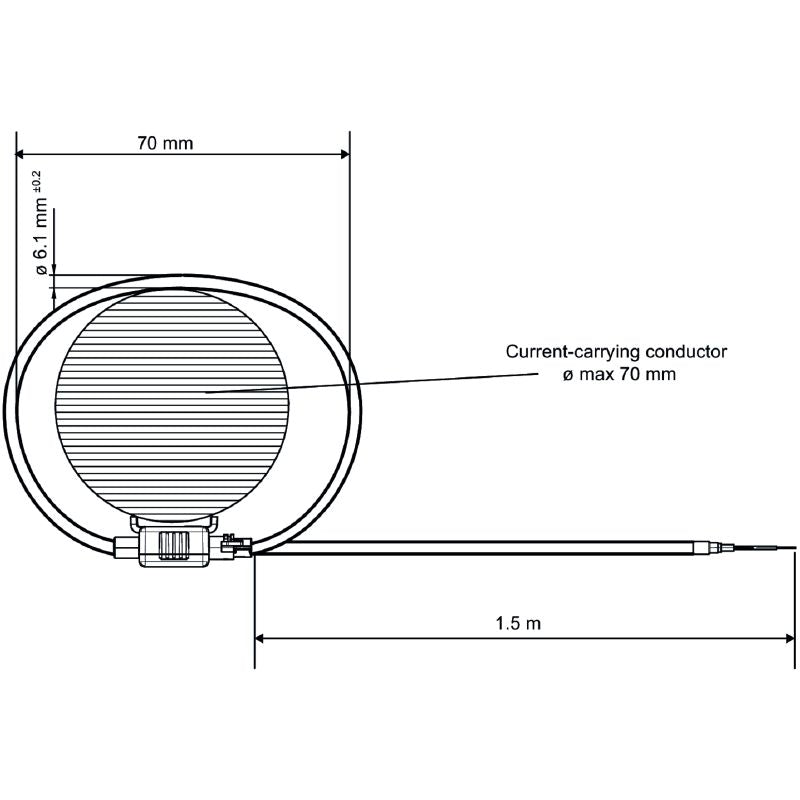

Introducing the RCMA-B22-D70-15 Rogowski coil, expertly crafted for precise electronic measurement of alternating current With a diameter of 70 mm and a generous cable length of 15 m, this coil supports operational currents ranging from 100 to 5000 A It delivers output signals in the millivolt range, and its innovative design prevents saturation effects, making it capable of delivering accurate measurements across a wide spectrum of primary currents.

For optimal performance, pair this coil with the Weidmüller transducer model RCMC-5000-XX.

Features and Benefits:

•Conductor diameter of the measuring coil is 6.1 mm.

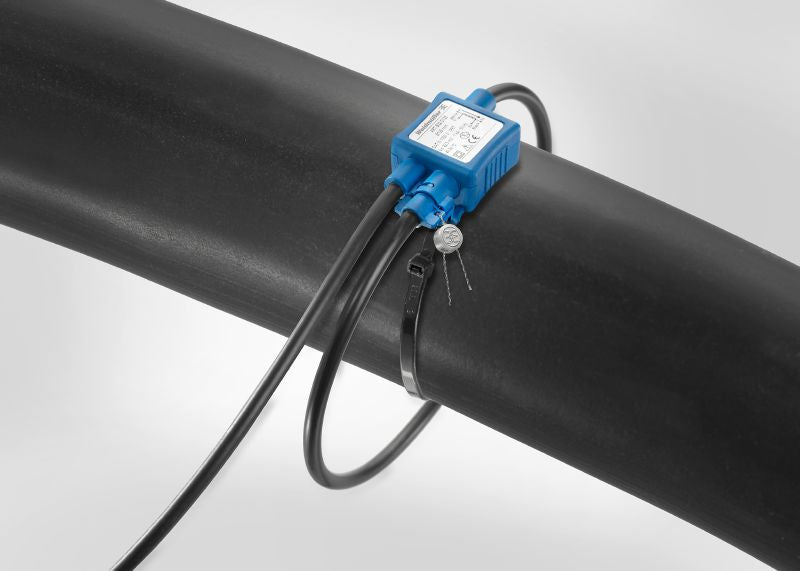

•Includes housing tabs for secure attachment using cable ties.

•Features a sealable bayonet fastening.

•Electronic measurement of alternating current.

Specifications:

Storage temperature	-40 °C to 80 °C
Operating temperature	-40 °C to 80 °C
Humidity at operating temperature	5 - 90 %, no condensation
Frequency band	50...60 Hz
Measurement error	<± 0.5% (of measuring range limit)
Nominal turns ratio	44.44 kA/V
Phase shift	0.004 °
Primary conductor temperature	105 °C
Primary current	5000 A
Secondary voltage	22.5 mV (@ 50Hz I primary = 1 kA), 30 V (max)
Tolerance class	0.5
Protection degree	IP57
Coil resistance	56 Ω
Cable diameter	6.1 mm
Regulation compliance	RoHS compliant without exemption
Insulation coordination	{'Impulse withstand voltage': '12.8 kV (1.2/50 ms)', 'Insulation voltage': '7.4 kV RMS (50 Hz, 1 min)', 'Rated insulation voltage': '1000V reinforced insulation according to IEC 61010-1, CAT III, PD2'}
