2456200000 - Intrinsically Safe Signal Transmitter for Hazardous Areas

Description:

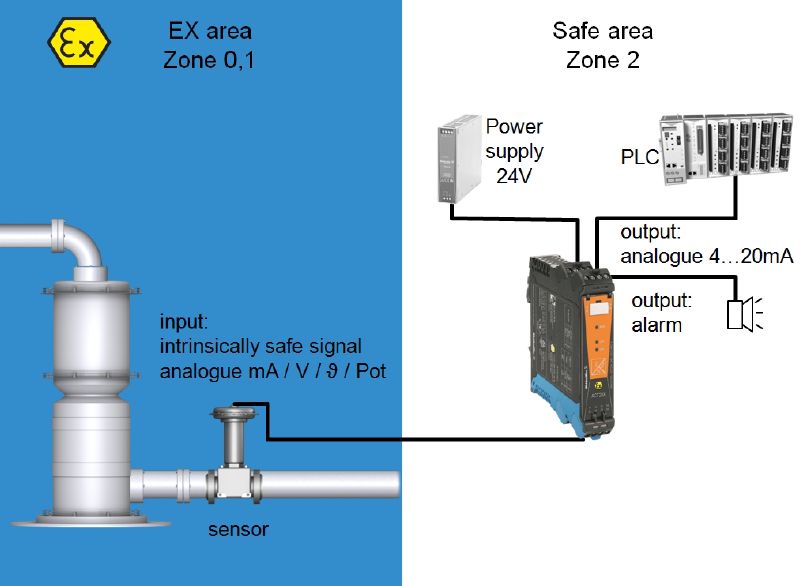

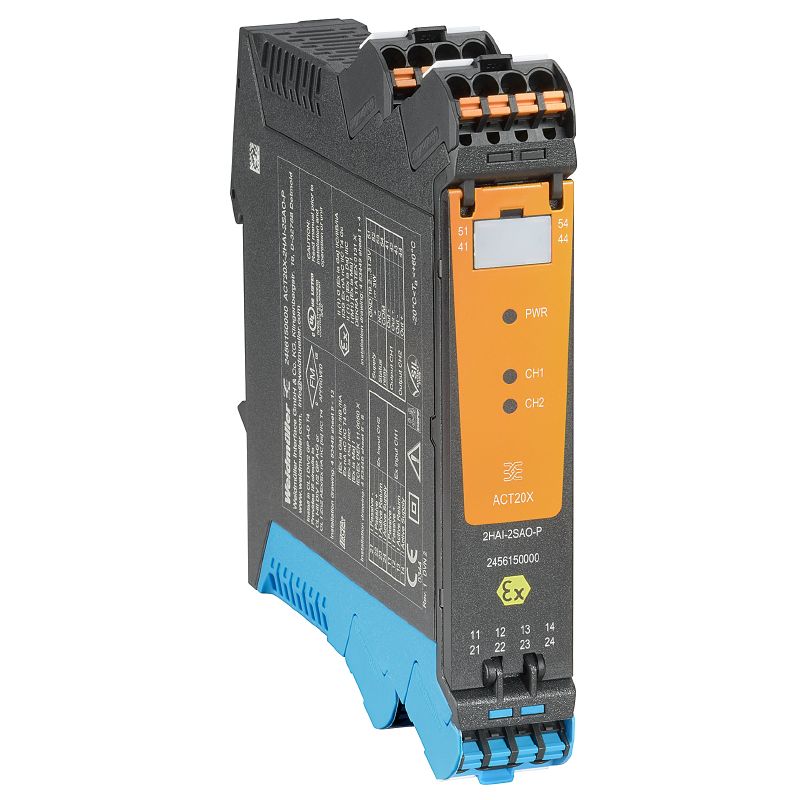

Introducing the ACT20X-HUI-SAO-P device, engineered to ensure safe transmission of analog signals from hazardous zones to less dangerous environments through galvanic isolation Its input circuits are built to be intrinsically safe, promising dependable operation This device operates seamlessly in safe areas as well as in zone 2 or division 2, accepting signals from hazardous locations such as zones 0, 1, 2, 20, 21, and 22, including Class I/II/III, division 1, groups A-G.

Experience reliable performance and safety with this robust signal transmission solution.

Features and Benefits:

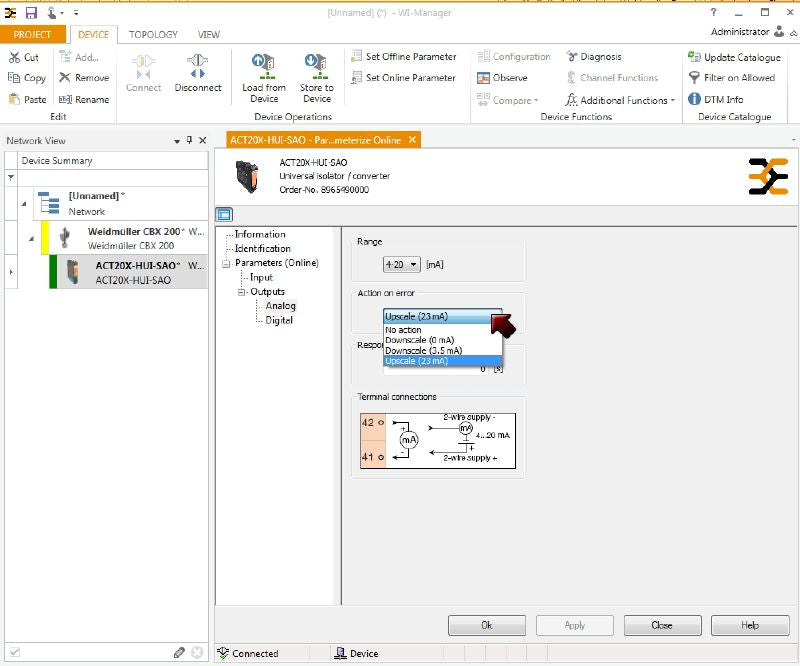

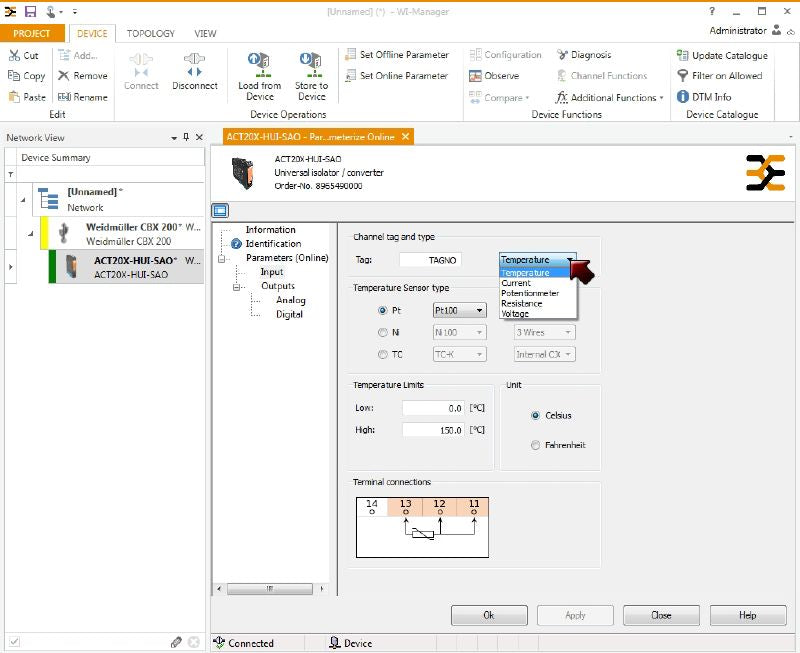

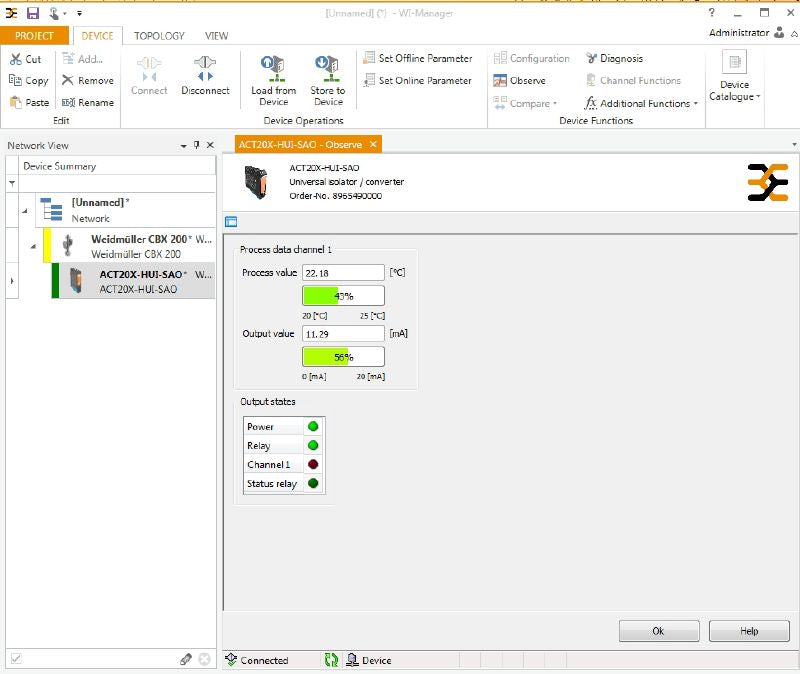

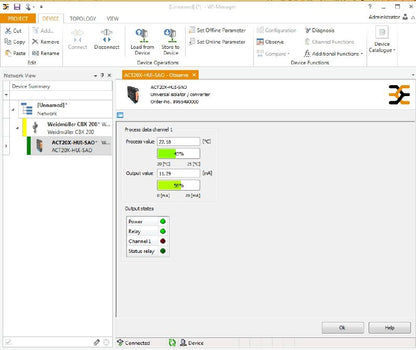

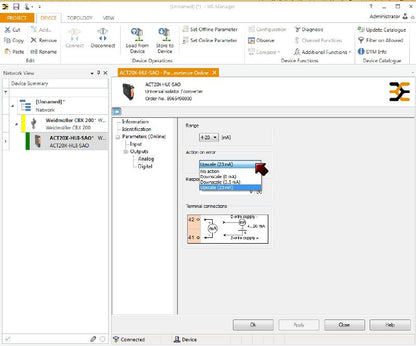

•Configuration and diagnosis via FDT/DTM Software 'WI-Manager'..

•Mountable in safe areas and zone 2/division 2..

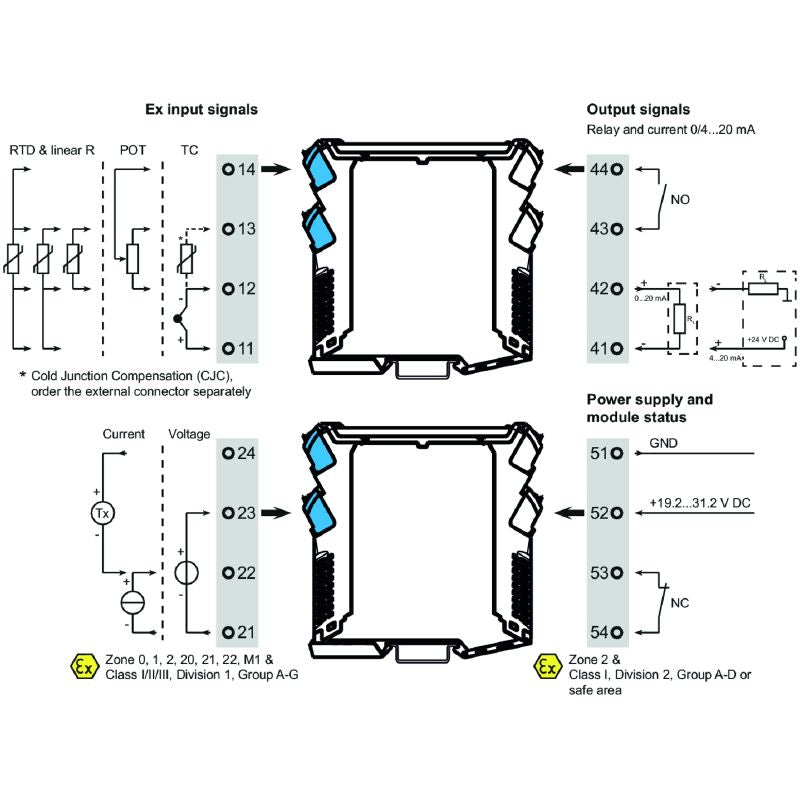

•Supports active or passive signal inputs for RTD, TC, potentiometer, V, and mA with complete electrical isolation..

•Automatic detection of active or passive current signals..

•Cold junction compensation for TC input with an internal system or external terminal for high precision..

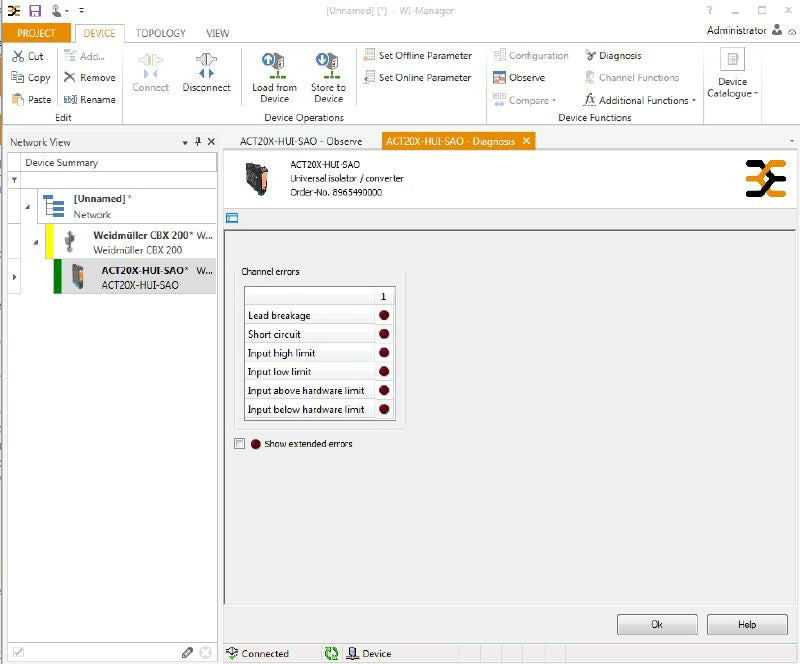

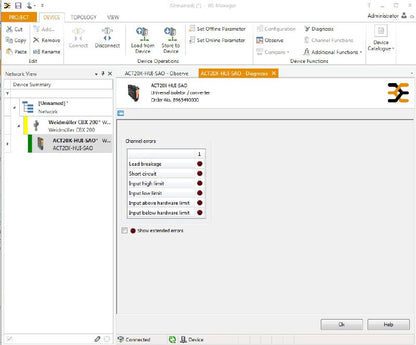

•Extended self-diagnostic features to monitor errors such as cable breakage via status relay..

•Front LEDs display operational status and errors..

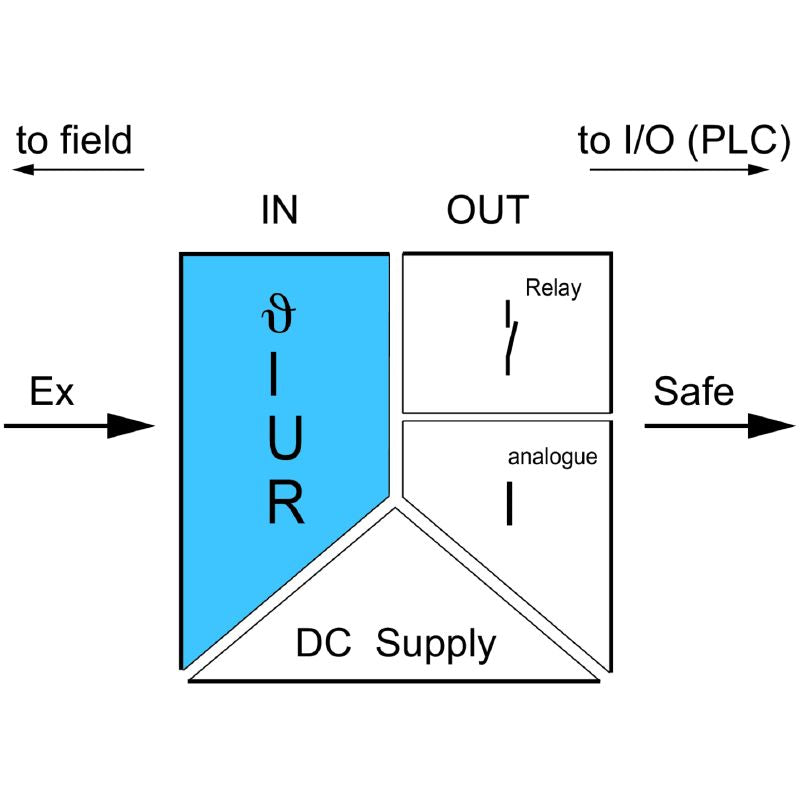

•Three-way galvanic isolation between input, output, and power supply..
