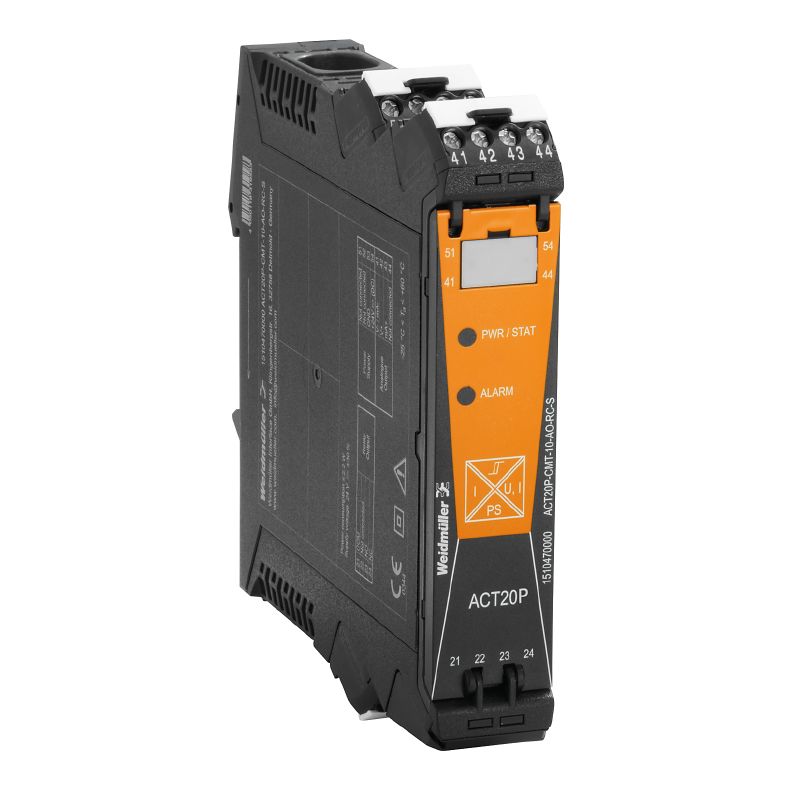

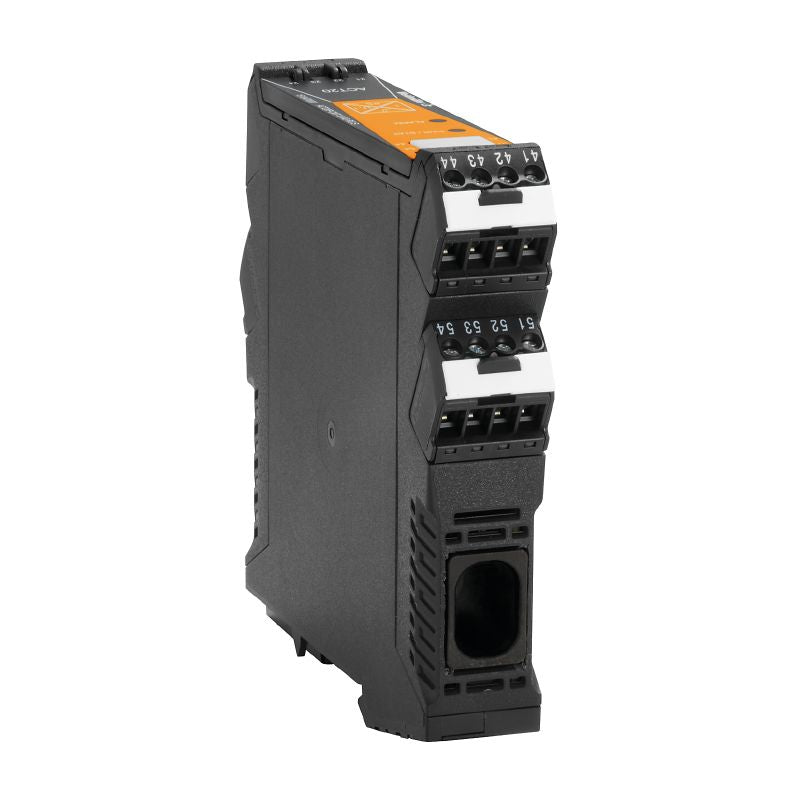

1510390000 - 60A AC/DC Current Transducer with Limit Monitoring

Description:

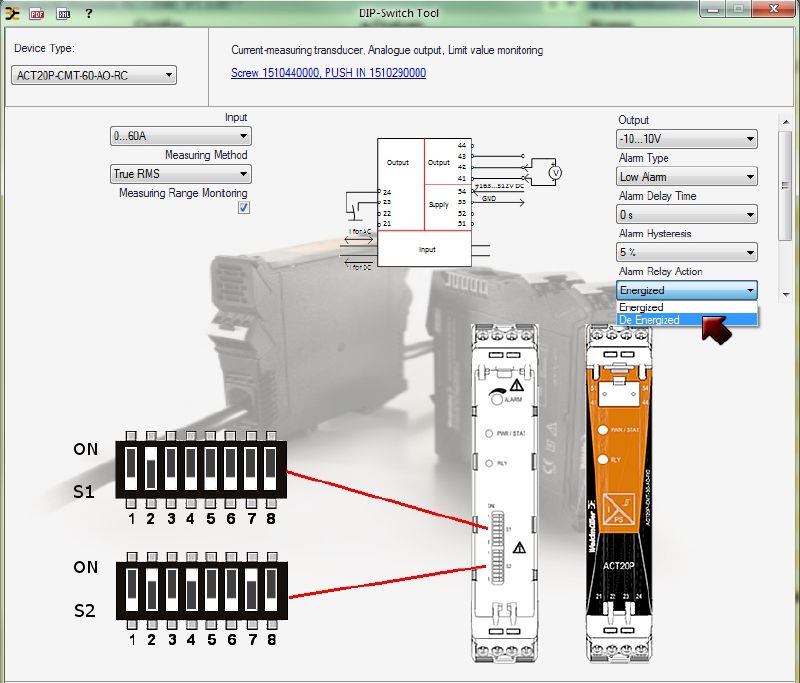

Introducing the ACT20P-CMT-XX-(AO)-RC-S series, your go-to solution for accurate current measurement and monitoring Capable of handling both AC and DC currents up to 60 A, these devices utilize the real effective value method to ensure precise readings, even in the presence of distorted waveforms Equipped with built-in limit value monitoring, you have the flexibility of adjustable thresholds, delays, and hysteresis, complemented by a relay output for seamless operation.

Perfect for both professional and industrial use, this series delivers reliability and performance you can trust.

Features and Benefits:

•Real effective value measurement (True RMS) or arithmetic averaging (AA) measurement along with contactless through-hole technology.

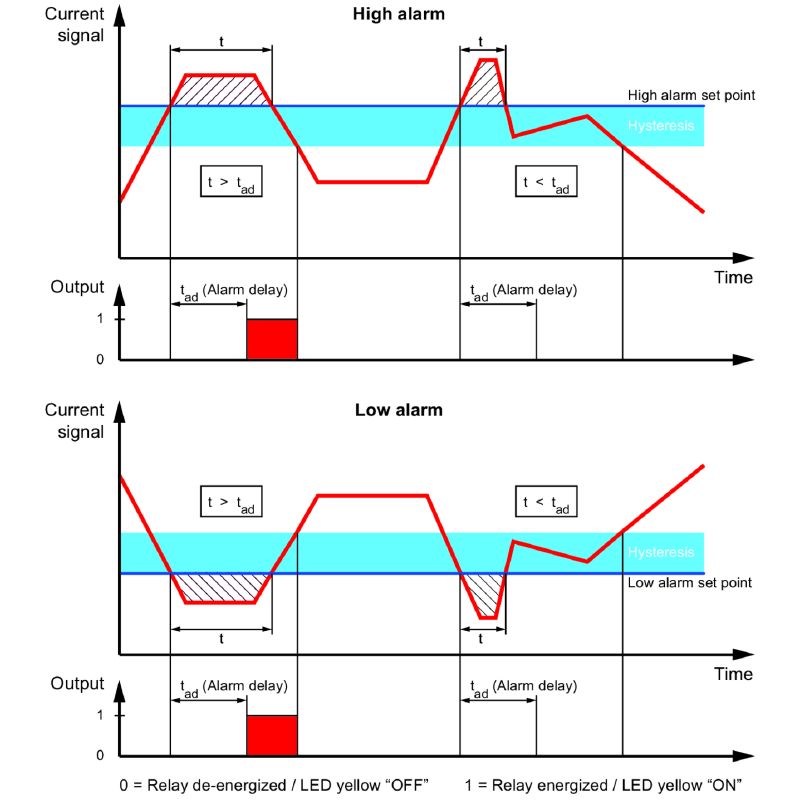

•Limit value monitoring for both overcurrent and undercurrent situations.

•Relay output through open-circuit/closed-circuit principles.

•Adjustable trigger delay for smoothing current peaks.

•Operational status and error notifications via a front panel LED and output signaling conforming to NE43, NE44, and NE107.

•Four-way galvanic isolation providing secure separation in compliance with IEC/EN 61010-2-201.

Specifications:
