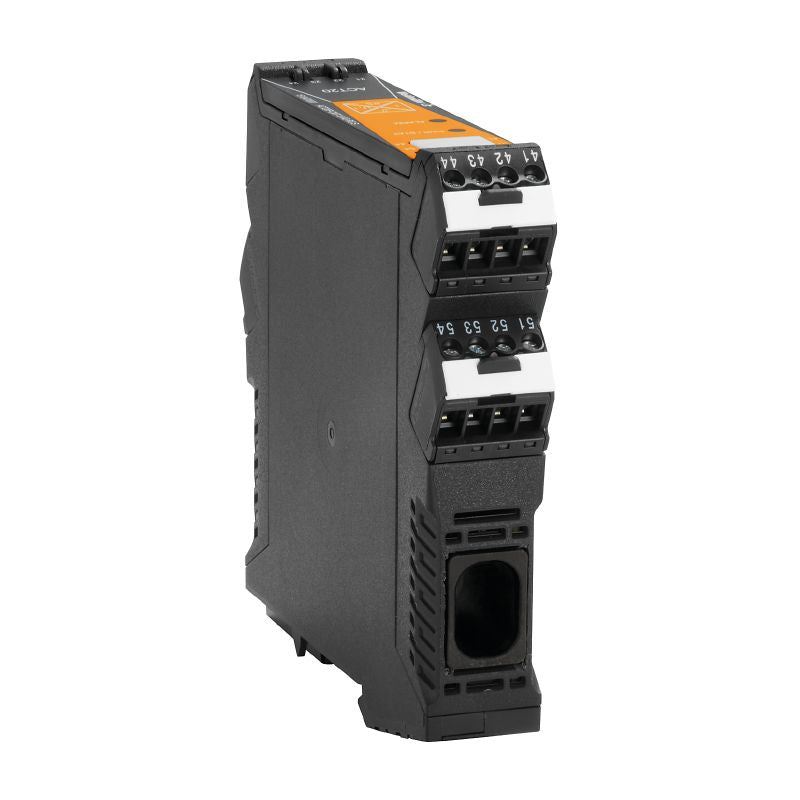

1510290000 - 60A Current Transducer with Limit Monitoring and Relay Output

SKU: SKU: 1510290000 Download PDF

Select a Variant:

1510290000 - 60A Current Transducer with Limit Monitoring and Relay Output

SET THE QTY:

Now $309.34 Web pricing policy

~~BEFORE $0.00~~ Now $309.34 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

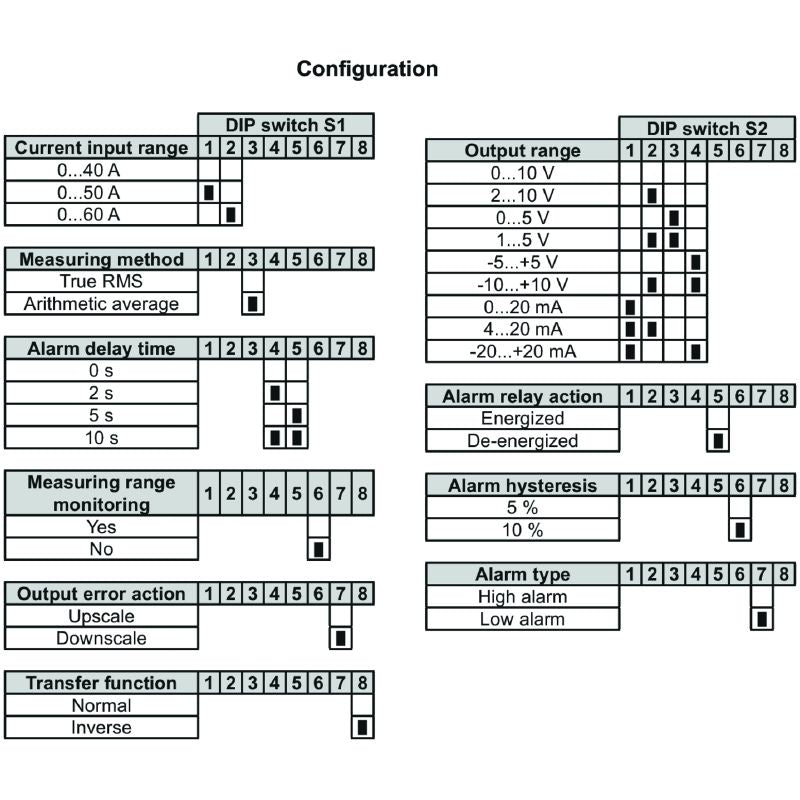

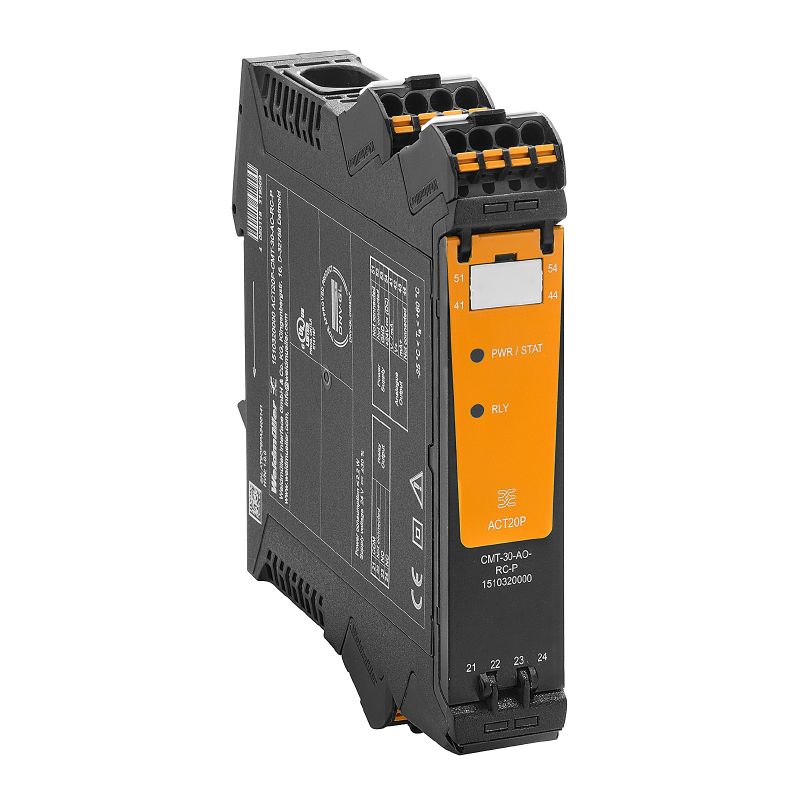

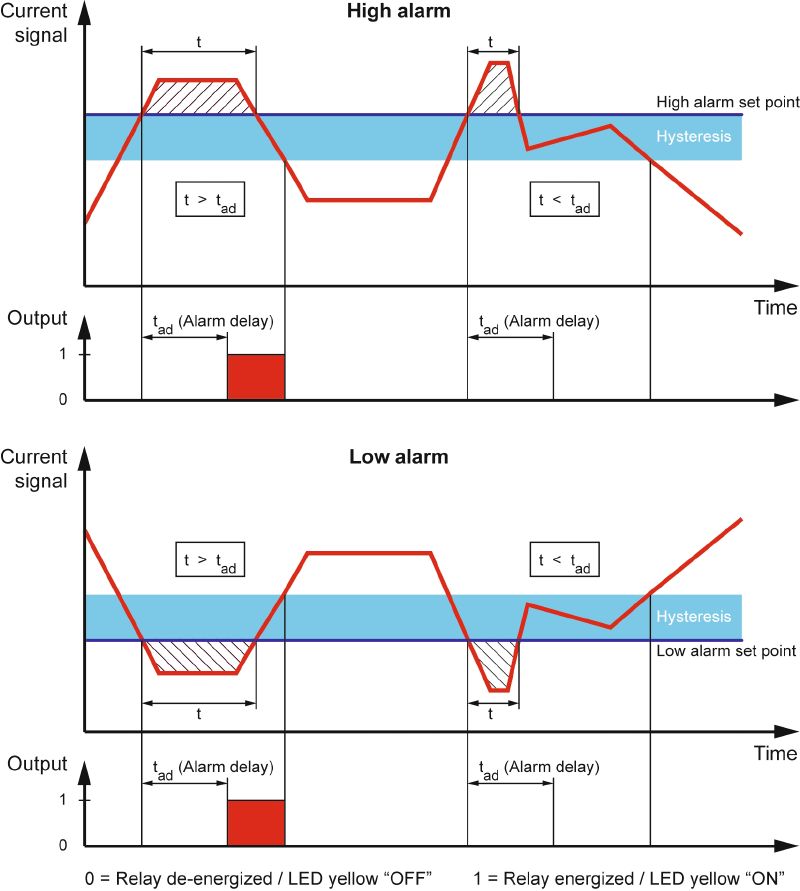

Introducing the ACT20P-CMT-XX-(AO)-RC-P series, expertly crafted to measure and monitor both AC and DC currents with a maximum capacity of 60 A These devices employ true effective value technology, ensuring accurate measurements even with distorted current waveforms They also come equipped with limit value monitoring featuring adjustable thresholds, delays, and hysteresis, along with a reliable relay output for enhanced functionality.

Features and Benefits:

•Real effective value measurement (True RMS) or arithmetic averaging (AA) measurement and contactless through-hole technology.

•Adjustable trigger delay for filtering current peaks.

•Operational status and error display via a front panel LED.

•Galvanic four-way insulation ensuring secure isolation.

Specifications:

Order No.	1510290000
Input frequency	AC: 15…700 Hz (true root mean square)
Input measurement range	0…40/50/60 A AC or DC
Overload behaviour	Max. peak current: 10 × IInput for 1s
Output type	active
Rated switching current	6 A
Protection degree	IP20
Power consumption, max.	2.2 W
Power consumption, typ.	0.9 W
Accuracy	<0.75 % FSR
Supply voltage	16.8 V…31.2 V
Rated voltage	300 V AC rms

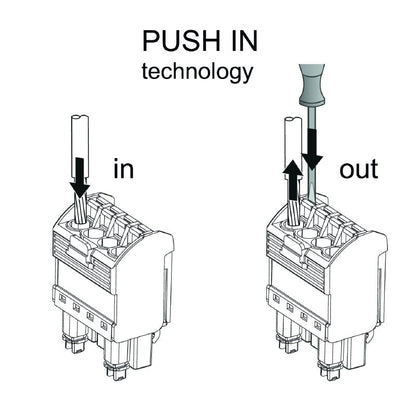

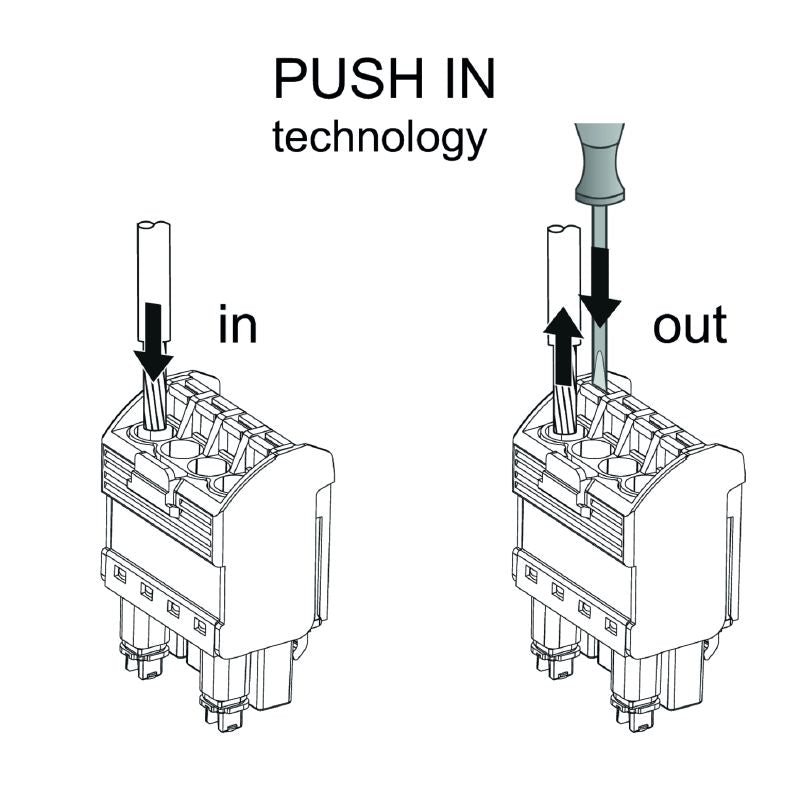

Type of connection	PUSH IN
MTTF	158 a
Insulation voltage	4 kV eff / 1 min.
