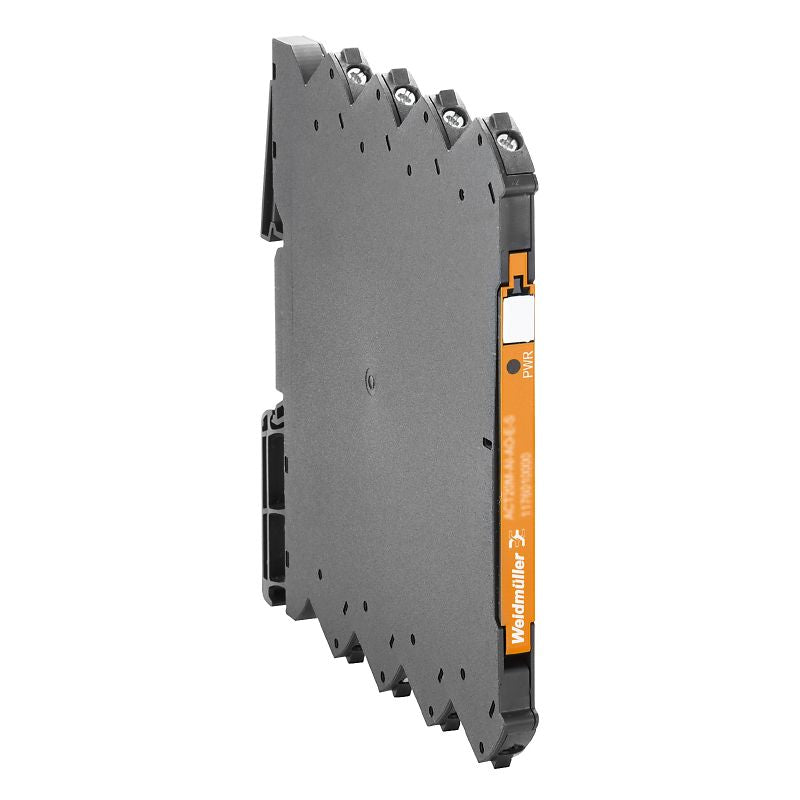

1176010000 - Configurable Analogue Isolating Amplifier with Galvanic Isolation

Description:

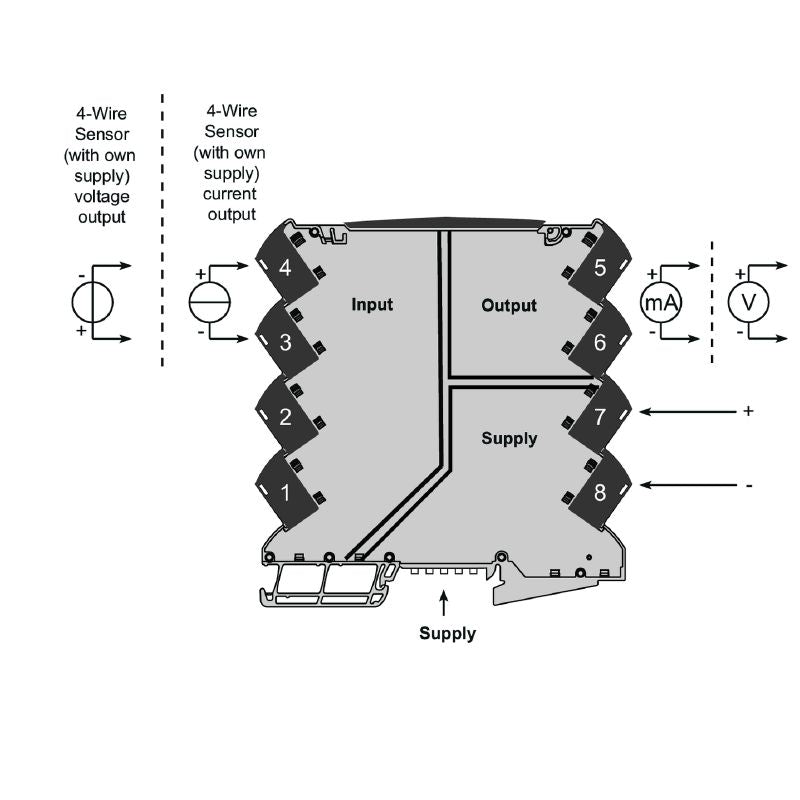

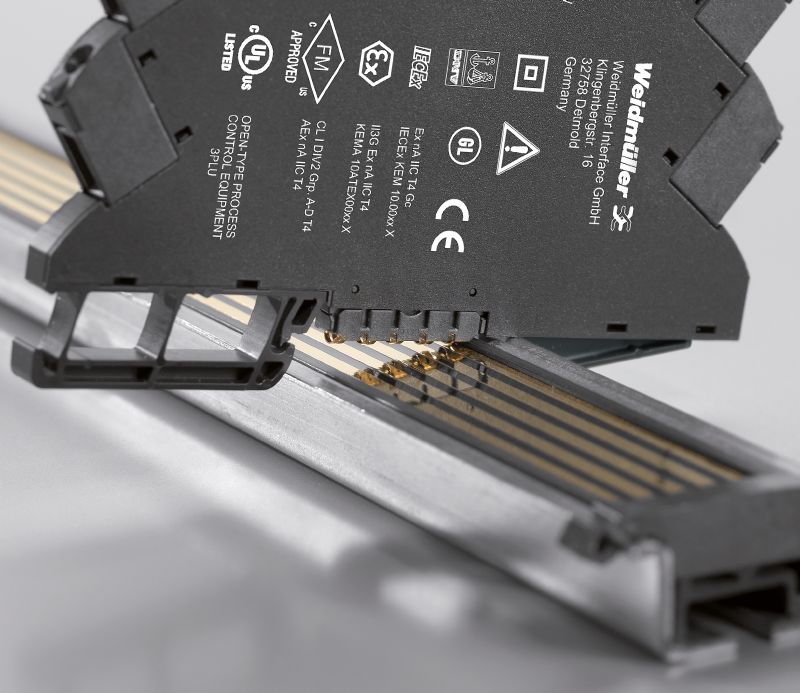

Introducing the ACT20M-AI-AO-E-S, an adaptable analogue isolating amplifier engineered for effective isolation and conversion of analogue signals without needing power from a sensor This versatile device supports both current and voltage inputs, guaranteeing precise conversion of input signals to output signals while delivering galvanic isolation The isolation process can be achieved through either direct wiring or by utilizing a rail bus that connects to the Weidmüller system, making it a reliable choice for various applications.

Features and Benefits:

•Configurable for various applications with the ability to handle both current and voltage signals.

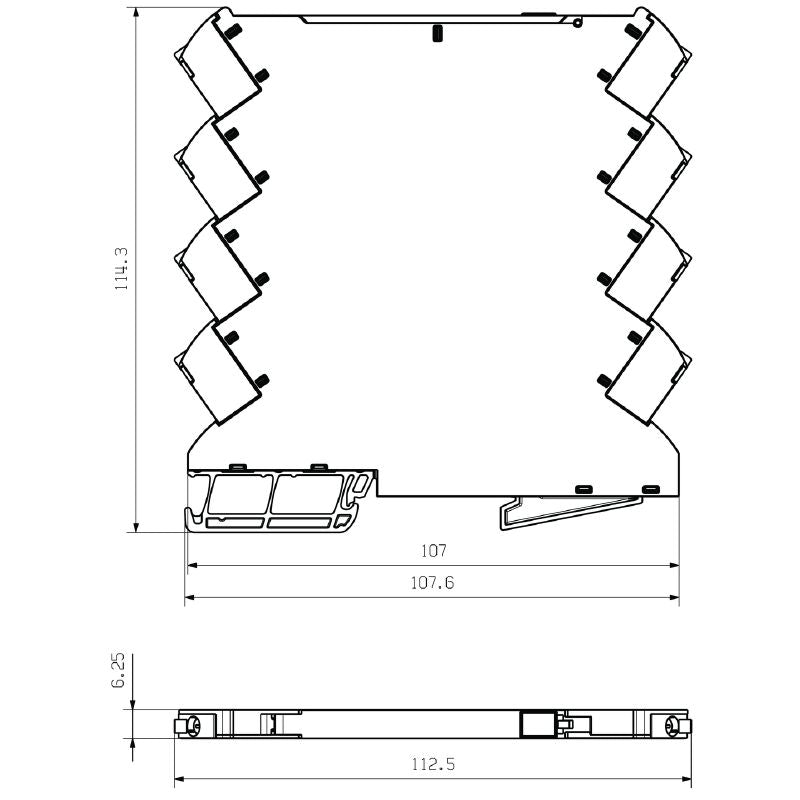

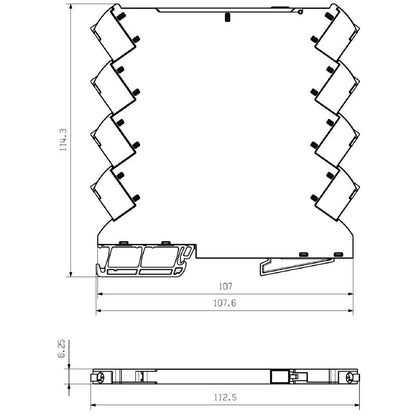

•Compact design at 6.1 mm width for efficient space utilization.

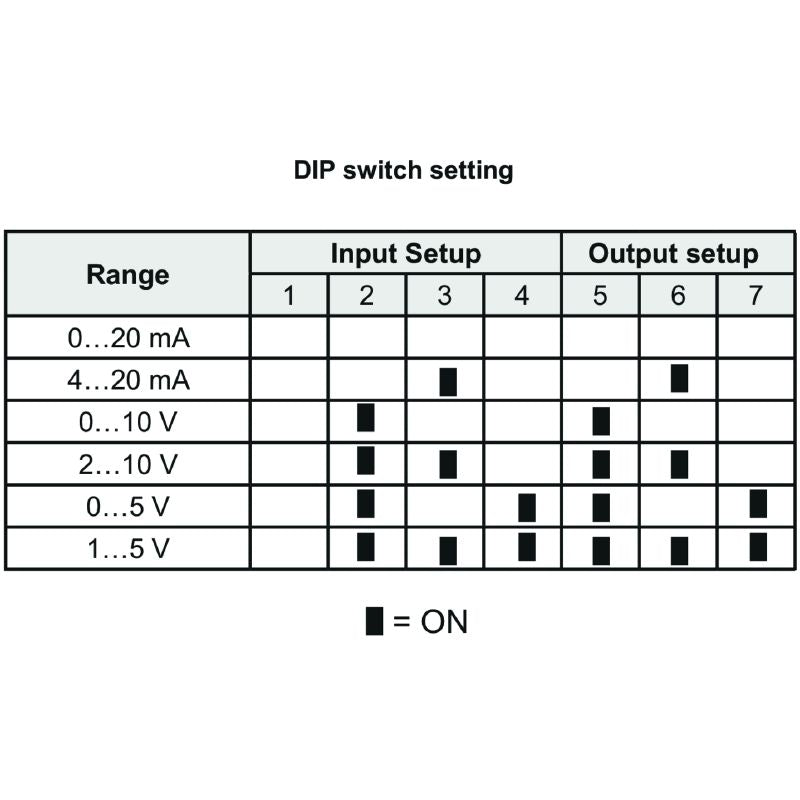

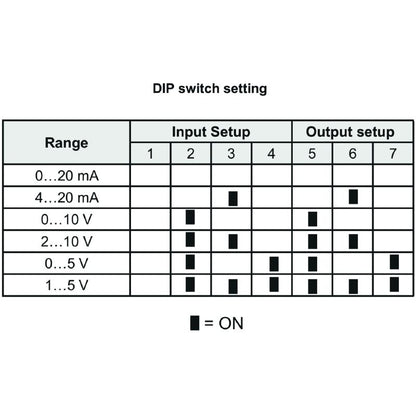

•Compatible with DIP switch configuration for easy setup.

•Galvanic isolation maintains signal integrity and safety.

•Ideal for isolating and converting analogue DC current signals and voltage signals in a variety of industrial applications.

Specifications:
