8965410000 - Versatile EX Signal Isolating Converter for Hazardous Areas

Description:

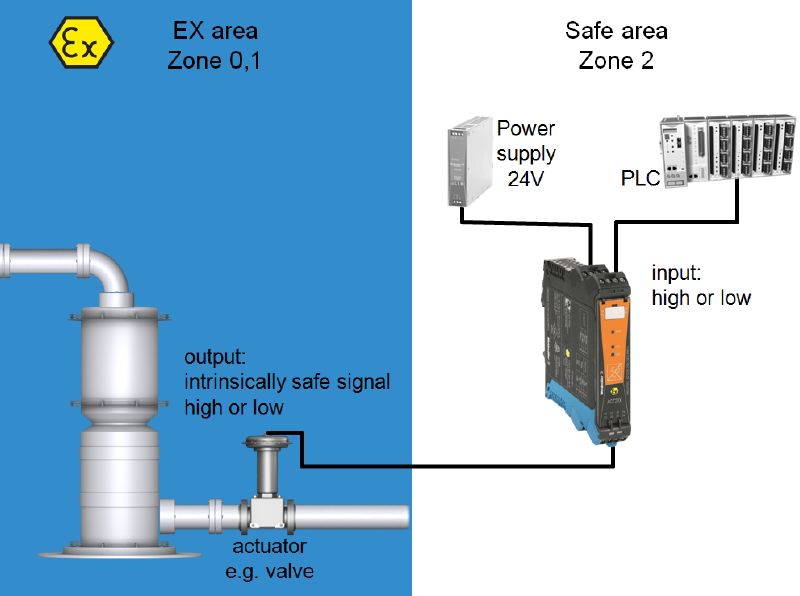

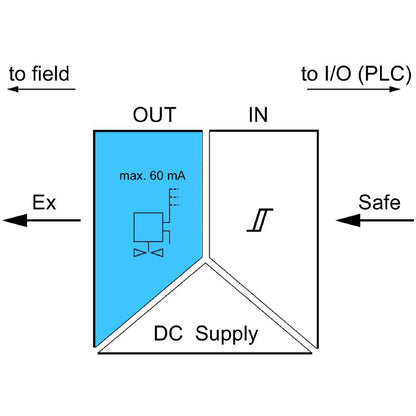

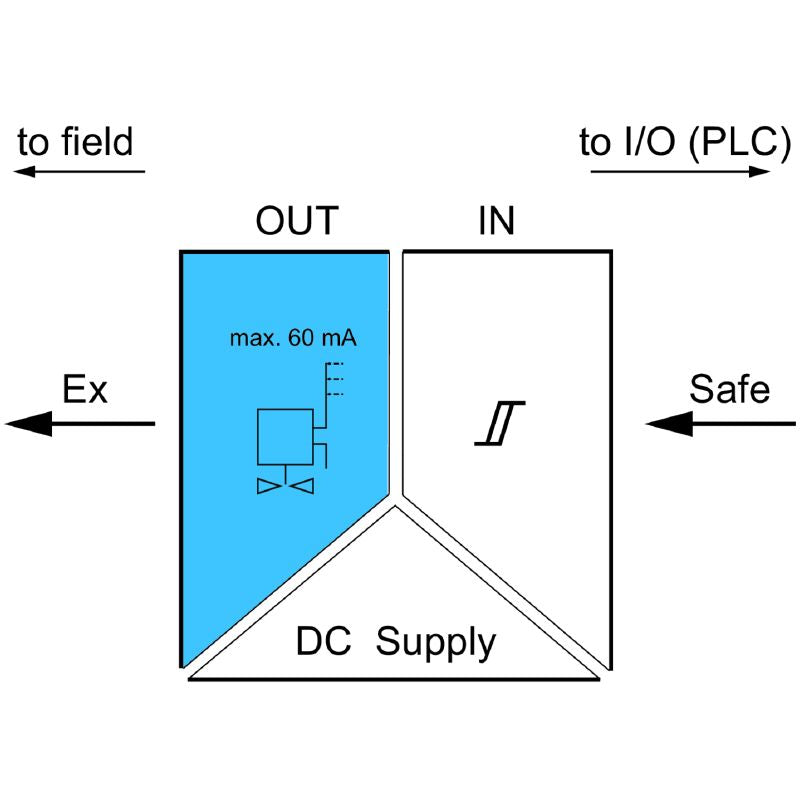

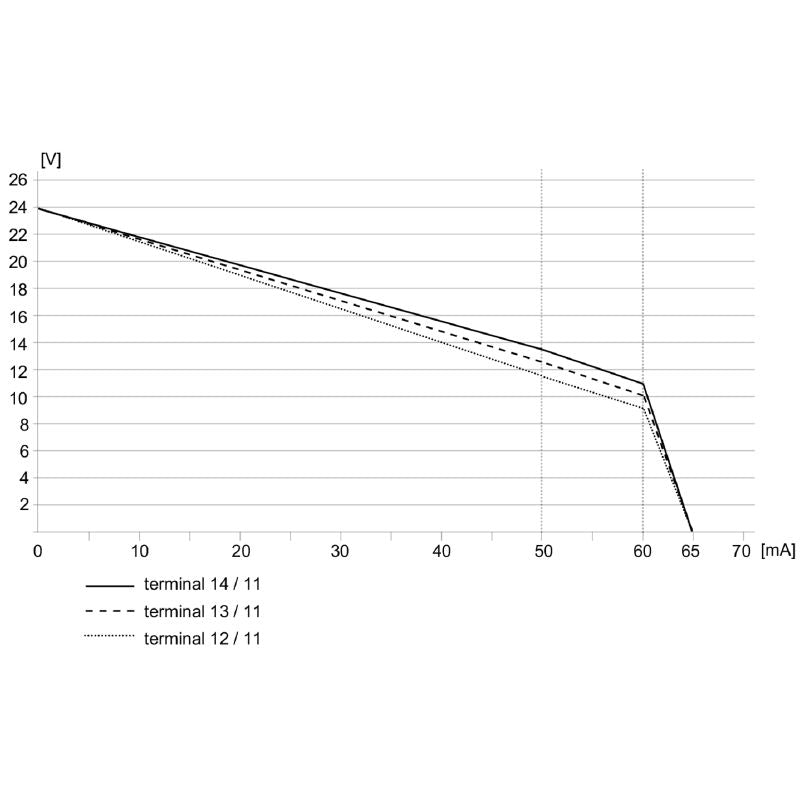

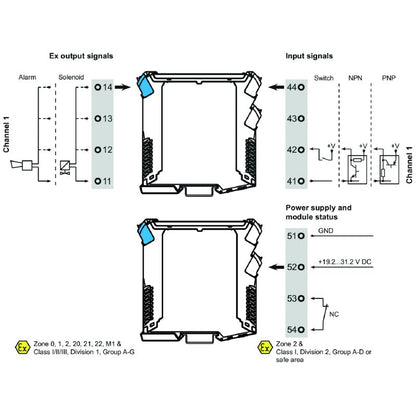

The ACT20X-SDI-HDO-H-S is a robust EX signal isolating converter tailored for secure input and output setups This device operates as a single-channel unit, equipped with a relay input and an opto module output, making it ideal for applications that demand high current, such as solenoid valves and alarm transmitters within hazardous settings, specifically in zones 0, 1, and 2 Available options feature output currents of either 35 mA or 60 mA, ensuring versatility.

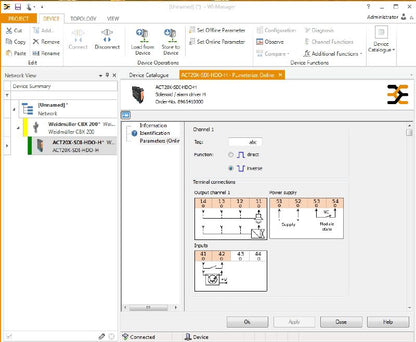

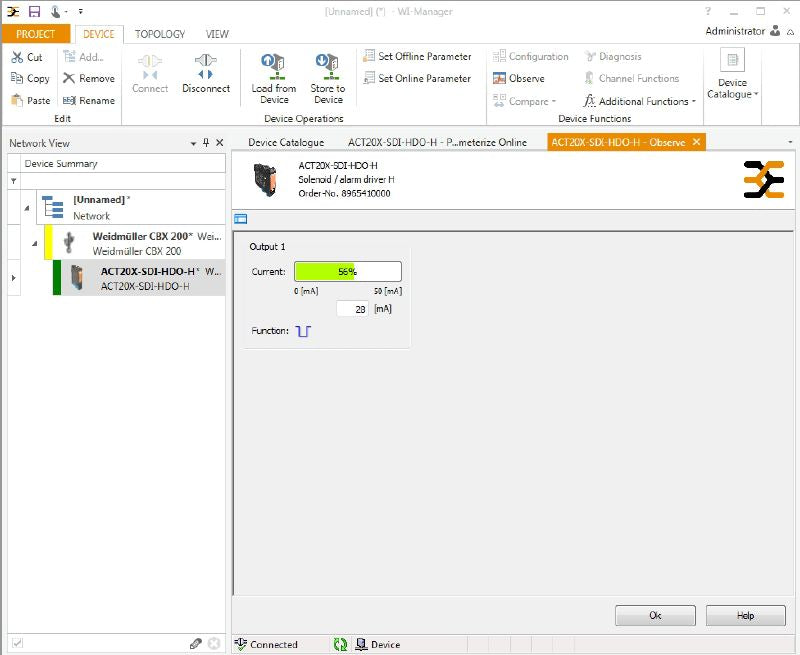

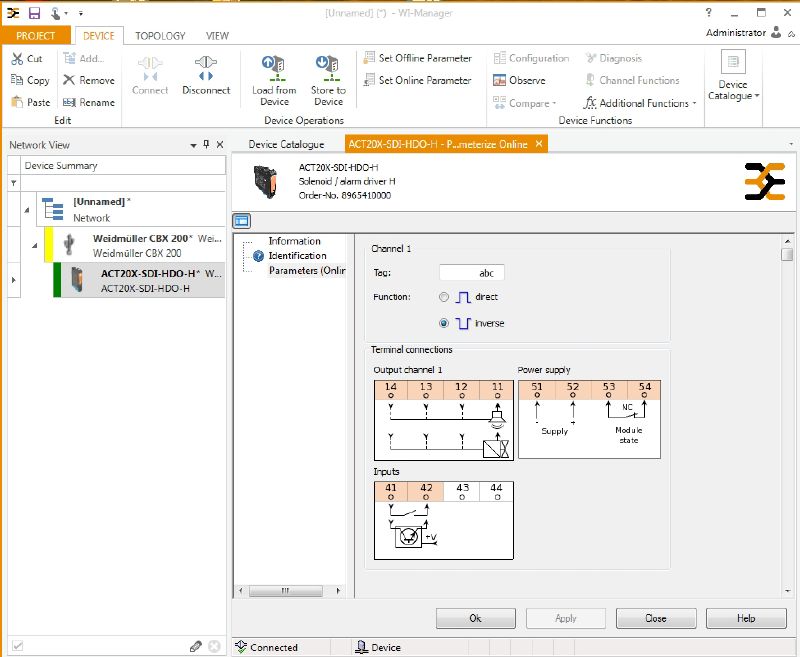

Users can effortlessly configure the device through FDT/DTM software, which also allows for the choice between direct and inverted functions for each channel Additionally, adjustments to output current can be made to suit different needs The converter is designed with self-diagnostic capabilities to monitor error events via a dedicated status relay, complemented by LED indicators that provide clear feedback on operational and error statuses.

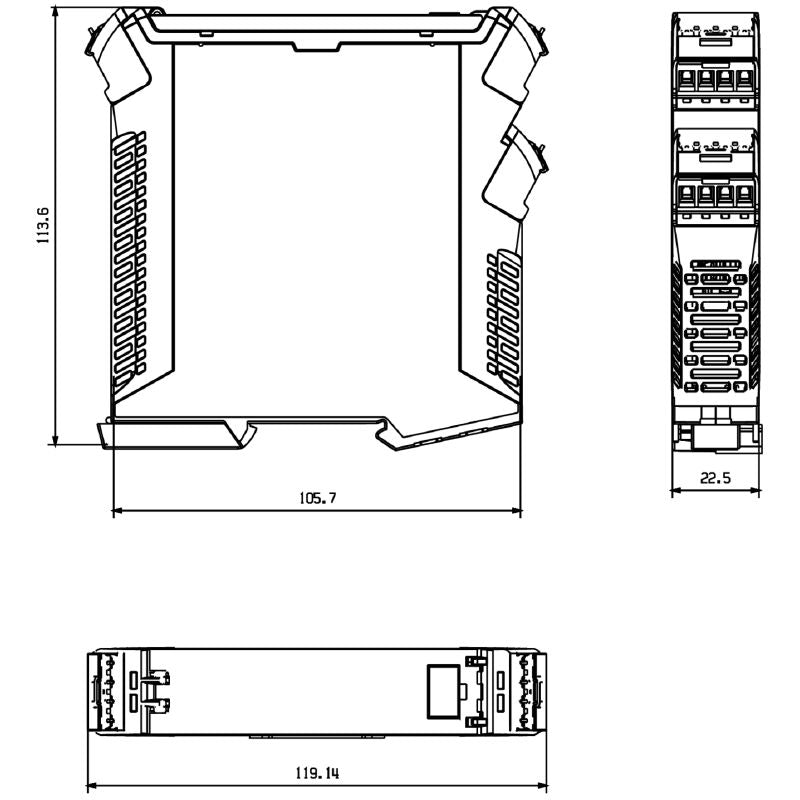

It supports both horizontal and vertical mounting options and adheres to international safety regulations.

Features and Benefits:

•Solenoid valve switch / alarm transmitter for hazardous areas.

•Extended self-diagnostic features monitoring error events.

•Galvanic isolation between input, output, and power supply.

•LED indicators for operational and malfunction status.

•Control of solenoids and acoustic alarms in hazardous areas.

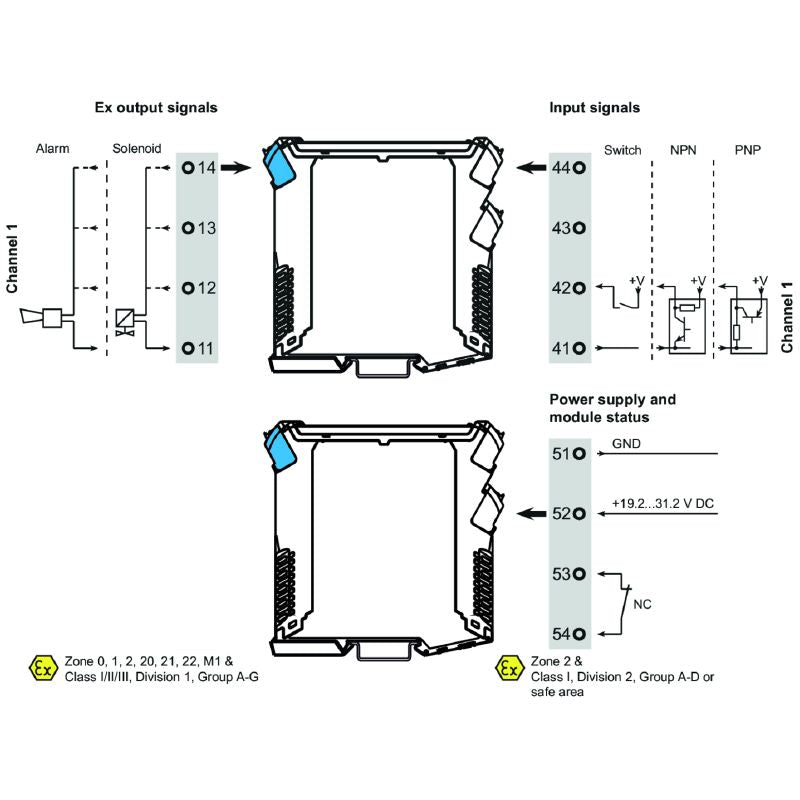

•Connection with NPN/PNP switching sensors.
