1510540000 - Current Transducer 60A, AC/DC Monitoring, Relay Output

1510540000 - Current Transducer 60A, AC/DC Monitoring, Relay Output

SKU: 1510540000   Download PDF

Select a Variant:
  • 1510540000 - Current Transducer 60A, AC/DC Monitoring, Relay Output
Qty:
Now $306.02   Web pricing policy
BEFORE   $0.00 Now $306.02 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

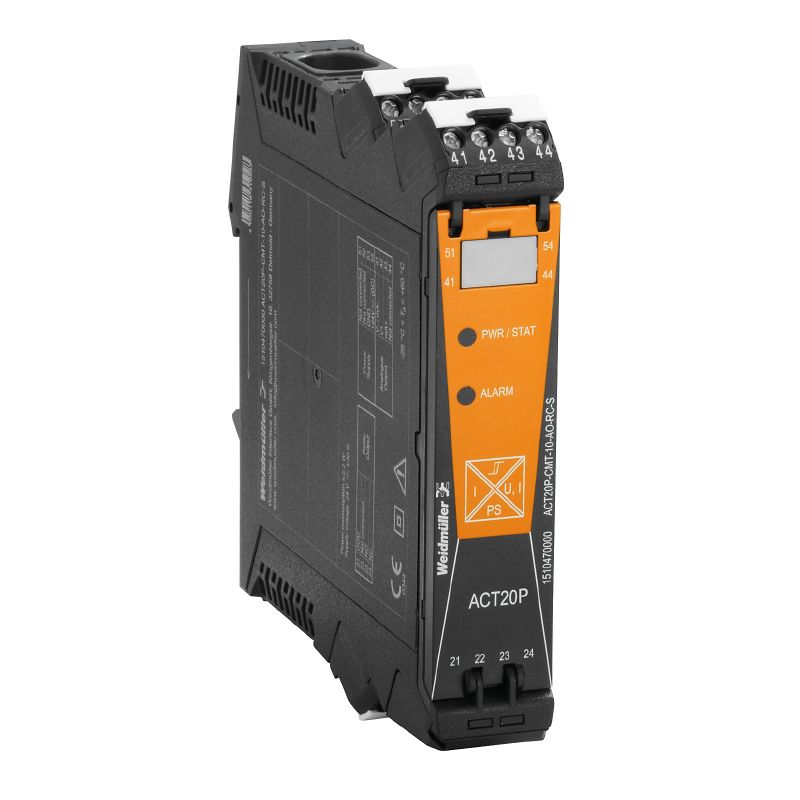

Introducing the ACT20P-CMT-XX-(AO)-RC-S series, expertly crafted to measure and monitor both AC and DC currents up to 60 A These devices employ a true effective value measurement technique, guaranteeing precision even with irregular current waveforms Additionally, they feature integrated limit value monitoring with custom thresholds, adjustable delay settings, hysteresis options, and a relay output function for enhanced versatility.

Perfect for ensuring effective current management in various applications.

Features and Benefits:

    •Real effective value measurement (True RMS) or arithmetic averaging.

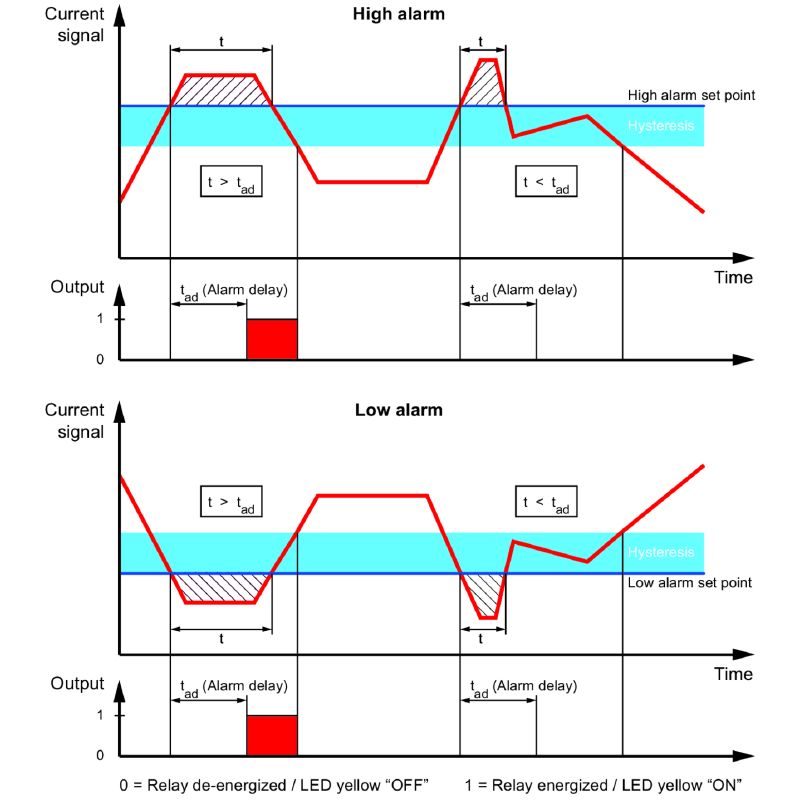

    •Limit value monitoring for both overcurrent and undercurrent conditions.

    •Relay output based on open-circuit/closed-circuit principle.

    •Adjustable delay for filtering of current peaks.

    •Operational status and error notifications via front panel LED.

    •Four-way galvanic insulation for enhanced safety.

Specifications:

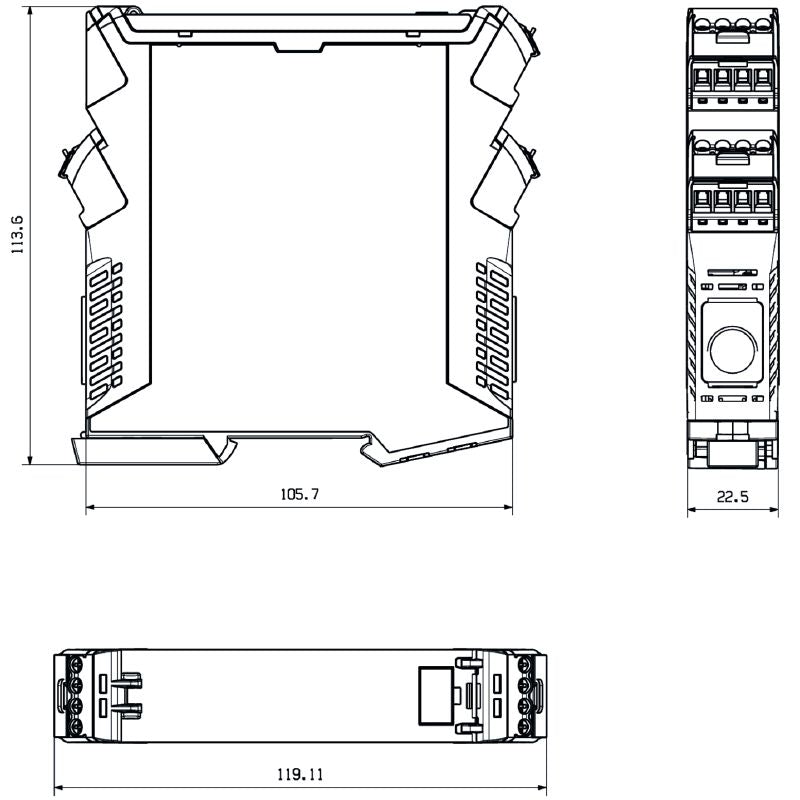

 Depth 113.6 mm
 Height 119.2 mm
 Width 22.5 mm
 Storage temperature -40 °C...85 °C
 Operating temperature -25 °C...60 °C
 Humidity 5...95 %, no condensation
 Input frequency AC: 15…700 Hz
 Input measurement range configurable 0…20/25/30 A AC (RMS) or DC
 Max. peak current 10 × I for 1s
 Max. switching voltage, AC 250 V
 Max. switching voltage, DC 24 V
 Rated switching current 6 A
 Type (Output) Relay, 1 CO contact
 Output current Adjustable 0...20 mA, 4...20 mA, -20…+20 mA
 Output voltage Adjustable 0...10 V, 2…10 V, 1...5 V, -5…+5 V
 Accuracy <0.75 % FSR
 Supply voltage 16.8 V…31.2 V
 Protection degree IP20
 Power consumption, max. 2.2 W
 Power consumption, typ. 0.9 W
 Insulation voltage 4 kV
 Rated voltage 300 V AC
 Connection type Screw connection
