Product Information

Description:

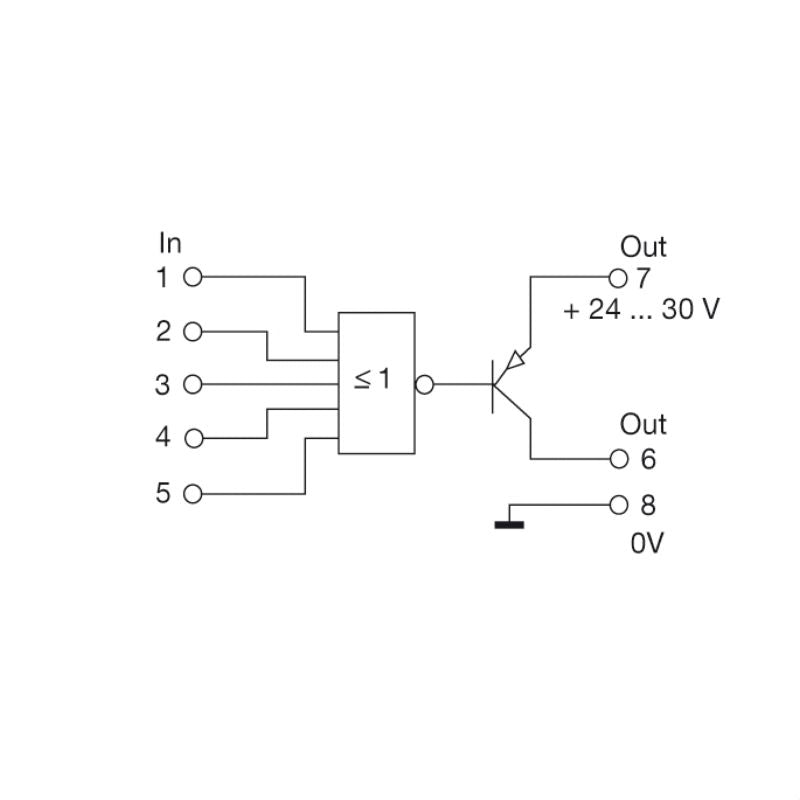

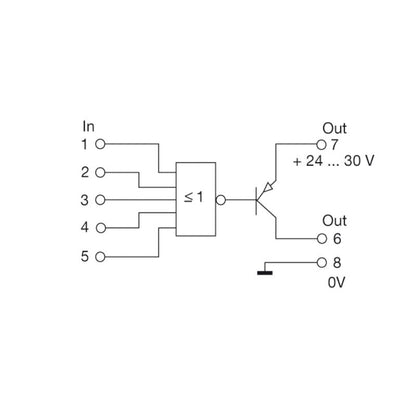

Introducing the DK NOR 35, a specialized function component designed as a NOR gate, suitable for supply voltages ranging from 24 to 30 V DC This component boasts a low current draw of under 5 mA, ensuring efficient operation within its defined temperature ranges It features a convenient screw connection for easy wiring, accommodating up to 5 inputs along with an 8-bit output configuration, making it a versatile choice for your circuit designs.

Features and Benefits:

•Logic function: NOR.

•Protection degree: IP20.

•Mounting rail: TS 35.

•Rated input level: 24 V DC= High, 0 V = Low.

•Output level: PNP, Ub-1.8 V.

•Rated voltage: Max. 30 V.

•Input current approximately: 1.5 mA per input (24 V).

Specifications:

Depth	65 mm
Height	57 mm
Width	12 mm
Storage temperature	-40 °C...60 °C
Operating temperature	0 °C...50 °C
Current consumption	<5 mA
Nominal power consumption	0.03 VA
Power consumption	30 mW
Supply voltage	24...30 V DC
Humidity	40 °C / 93 % rel. humidity, no condensation
Number of inputs	5
Number of outputs	8-bit (1-bit signed)
Output current	max. 20 mA
Switching thresholds	High <15 V, low <9 V
Clamping range, rated connection	4 mm²
Clamping range, min.	0.5 mm²
Clamping range, max.	4 mm²
Galvanic isolation	Without isolation
Insulation coordination	Galvanic isolation
