2495690000 - Dual-Channel Current & Voltage Monitor with Alarms

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

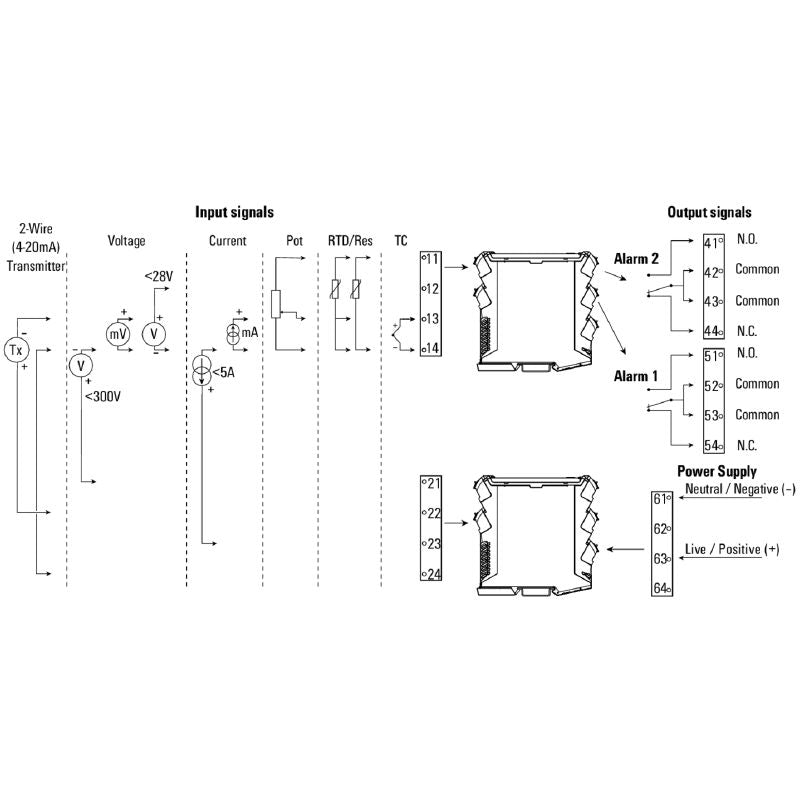

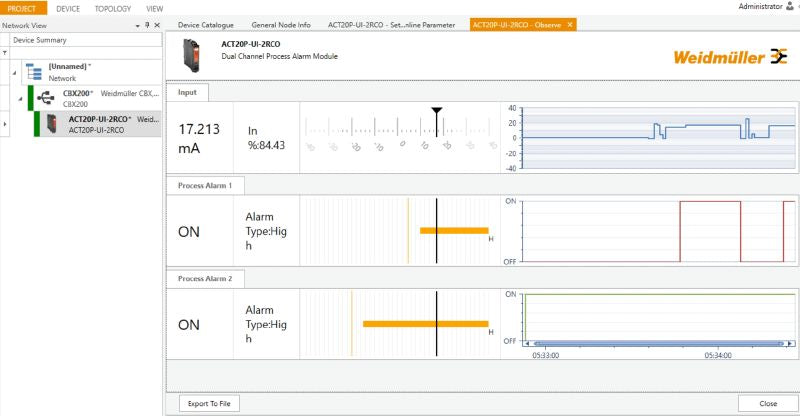

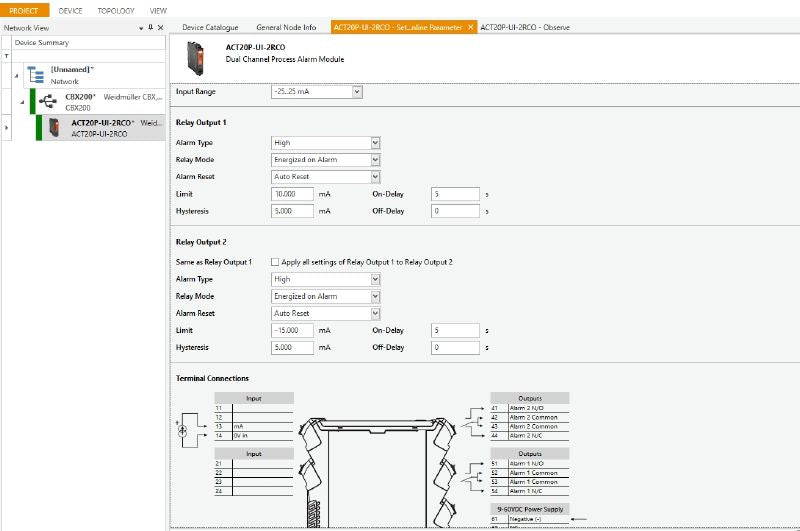

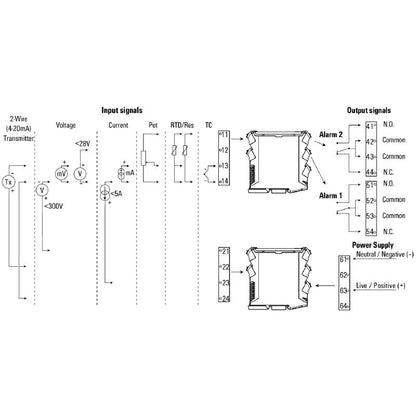

Introducing the ACT20P-UI-2RCO-XX-x series devices, expertly crafted to monitor various signals including current, voltage, and temperature sensor inputs This versatile unit accommodates inputs from both potentiometers and temperature sensors Equipped with two distinct relay outputs, it triggers alarms when conditions exceed predetermined levels Users can easily configure settings and perform diagnostics using FDT/DTM software known as 'WI-Manager' or directly through the device's user-friendly LED display, buttons, and encoders.

The dual-channel trip amplifier is designed to manage a variety of alarm scenarios, including window alarms, alarm delays, and the detection of wire breaks, as well as hysteresis and upper/lower limit alarms All inputs for RTD, TC, voltage, and current are completely galvanically isolated, preserving the integrity of operation Furthermore, the device also supports remote diagnostics for efficient error reporting, ensuring reliable performance in any application.

Features and Benefits:

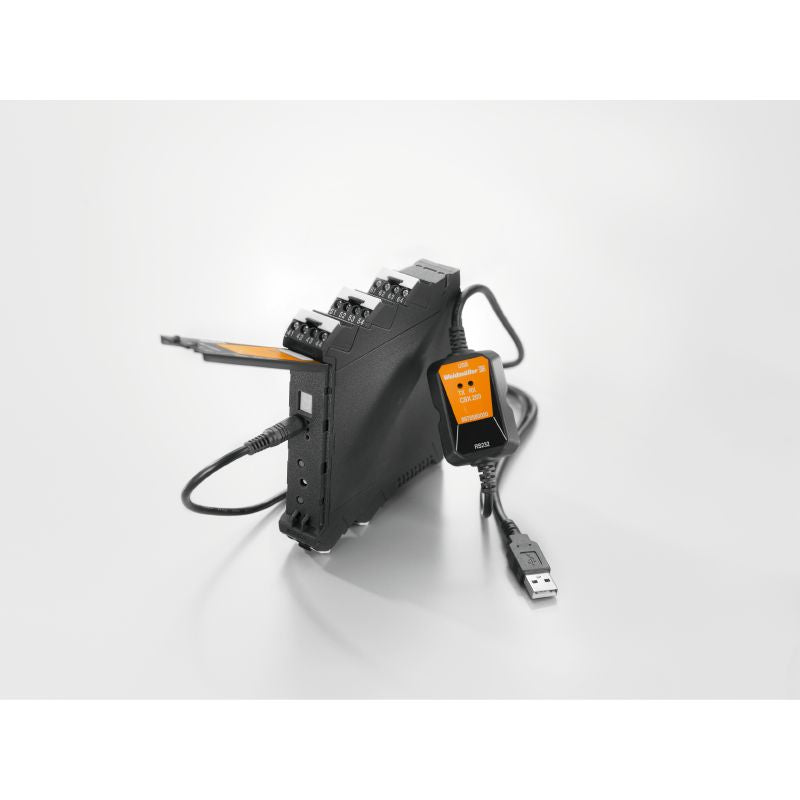

•Configuration and diagnosis can be done using FDT/DTM software or through the device interface.

•Two independent relay outputs for alarm notifications when limits are surpassed.

•Various alarm functions available including window alarm, alarm delay, and hysteresis settings.

•Galvanic 4-way isolation between input, output, and supply ensures safety and reliability.

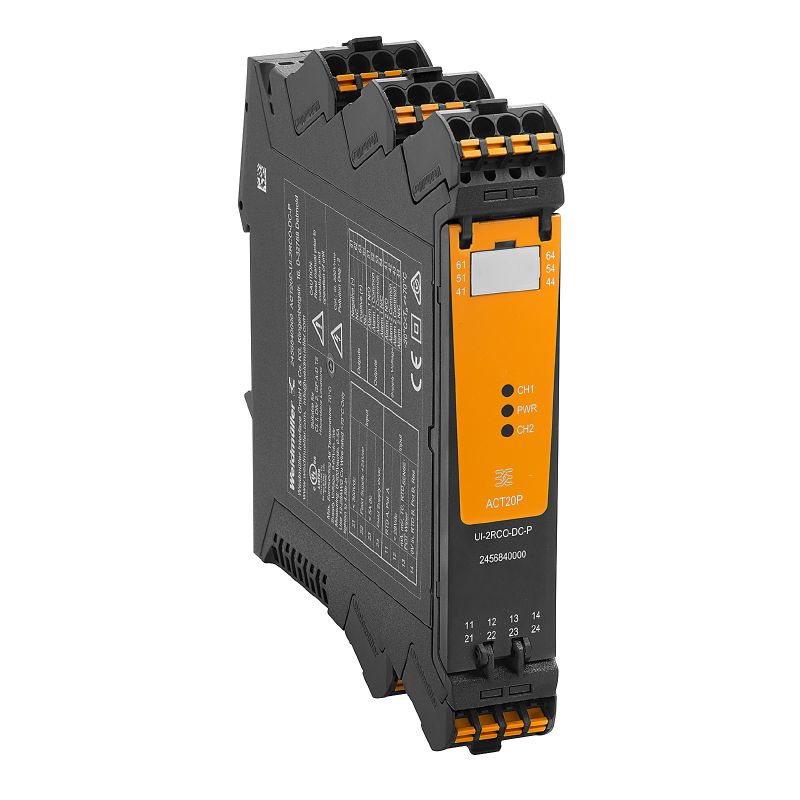

•Front panel LEDs indicate operational and relay statuses.

Specifications:
