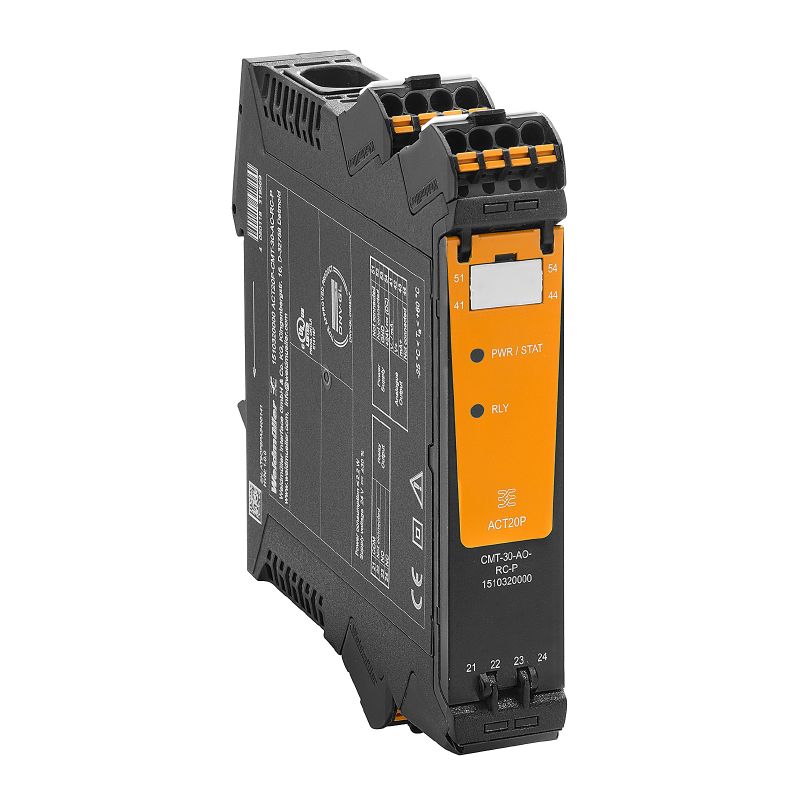

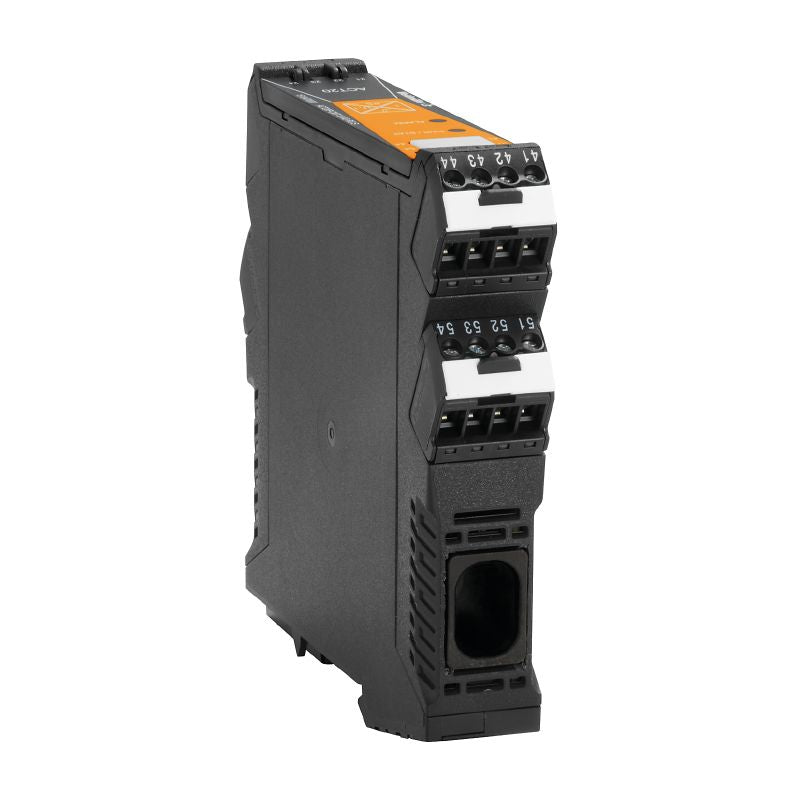

1510330000 - Current Transducer for AC/DC Up to 60A with Monitoring

Description:

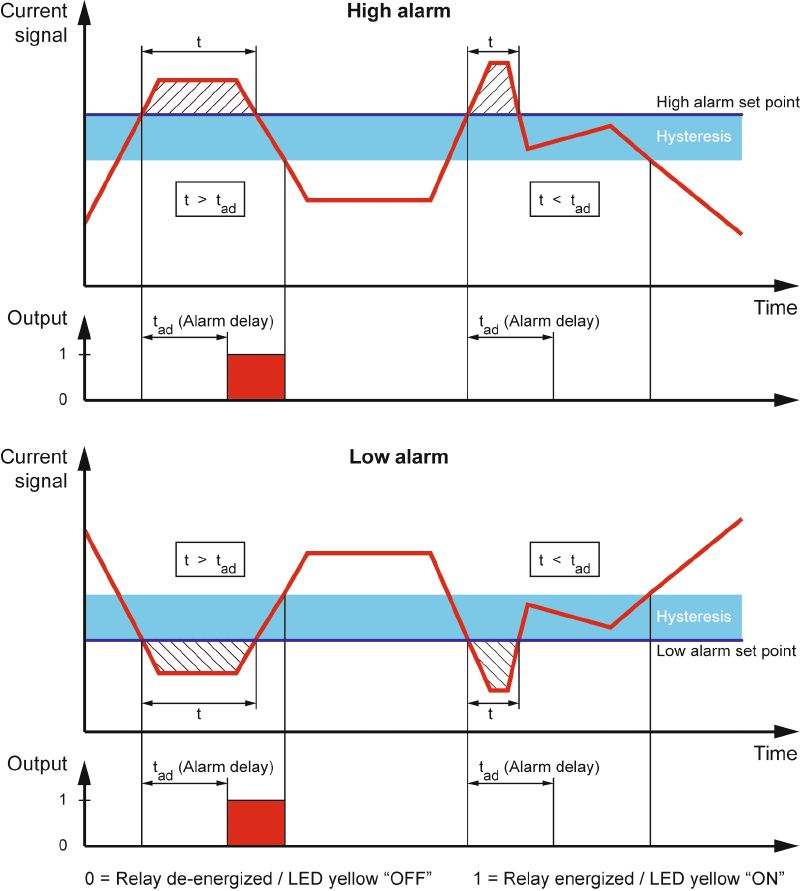

Introducing the ACT20P-CMT-XX-(AO)-RC-P series, expertly crafted to provide precise measurement and monitoring of both AC and DC currents, accommodating levels of up to 60 A Utilizing a true effective value methodology ensures reliable readings, even in scenarios with distorted current waveforms Each unit is also equipped with advanced limit value monitoring, featuring adjustable thresholds, delay, and hysteresis, along with a convenient relay output for added functionality.

Features and Benefits:

•True RMS measurement or arithmetic average measurement options.

•Contactless through-hole technology for limit value monitoring for both overcurrent and undercurrent.

•Relay output operates on an open-circuit and closed-circuit principle.

•Adjustable delay feature to filter out current peaks.

•Operational status and error indicators displayed via front panel LED, with output signaling according to NE43, NE44, NE107.

•Four-way galvanic insulation for robust isolation in compliance with IEC/EN 61010-2-201.

Specifications:
