2593340000 - 70mm Rogowski Coil with 4.5m Cable for Current Measurement

2593340000 - 70mm Rogowski Coil with 4.5m Cable for Current Measurement

SKU: 2593340000   Download PDF

Select a Variant:
  • 2593340000 - 70mm Rogowski Coil with 4.5m Cable for Current Measurement
Qty:
Now $150.61   Web pricing policy
BEFORE   $0.00 Now $150.61 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

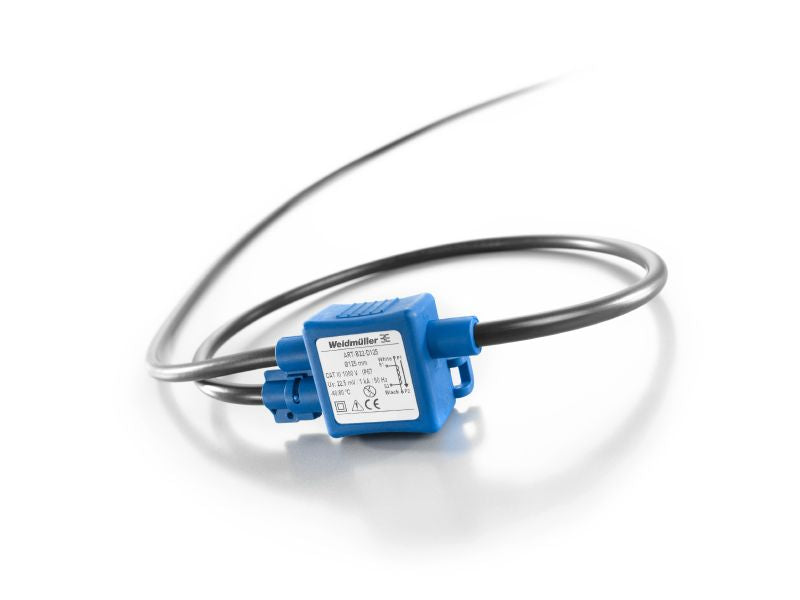

Introducing the RCMA-B22-D70-45, a highly efficient device crafted for measuring alternating current electronically It features a robust Rogowski coil with a substantial diameter of 70 mm and a generous cable length of 45 m for versatile application This model operates within a primary current range of 100 to 5000 A, providing reliable output in the form of pulse and mV signals Thanks to its galvanic isolation, the primary circuit remains separate from the secondary measurement circuit, ensuring precise readings free from saturation effects.

Features and Benefits:

    •Conductor diameter of the measuring coil: 6.1 mm.

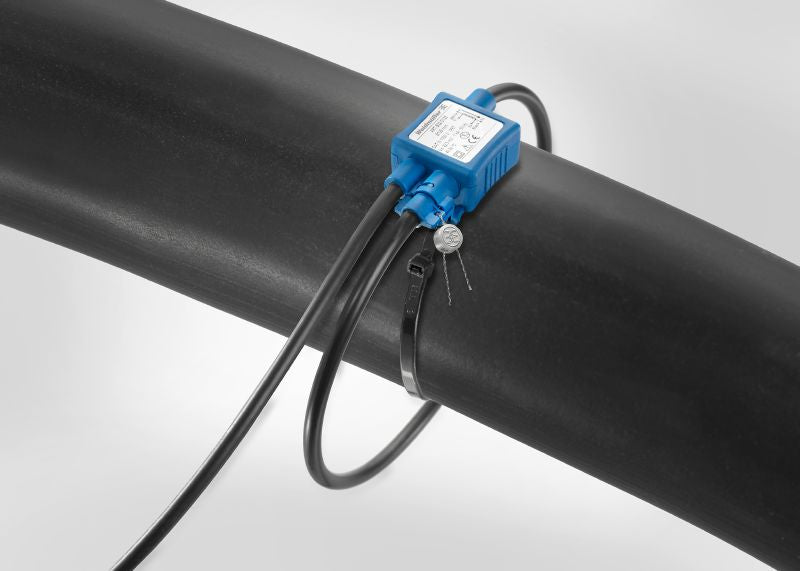

    •Housing tabs for attachment with cable ties.

    •Sealable bayonet fastening.

Specifications:

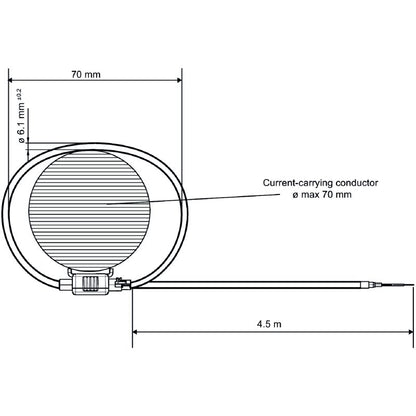

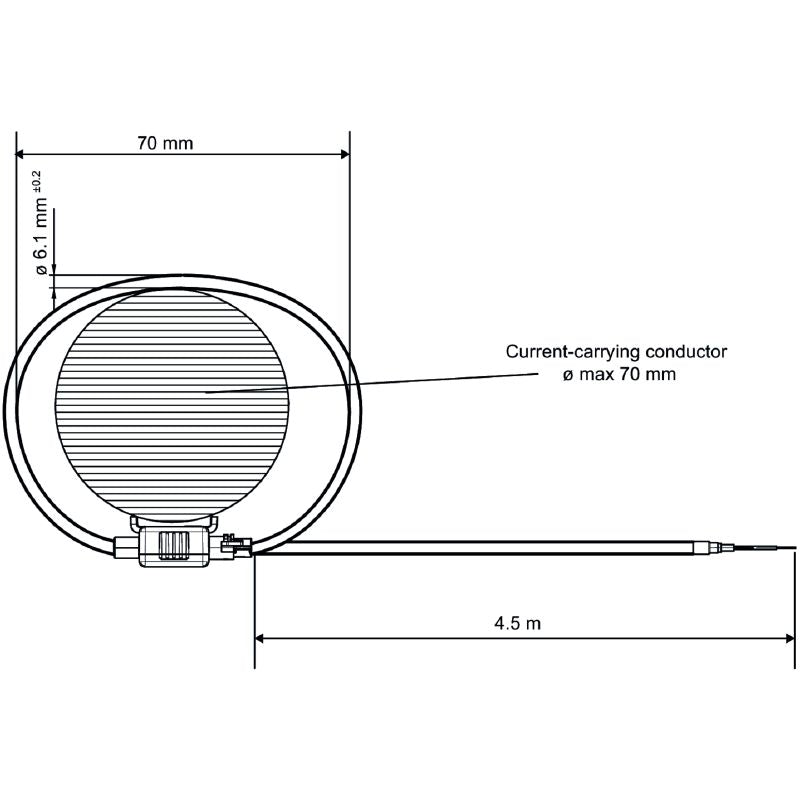

 Diameter 70 mm
 Cable length 4.5 m
 Primary current 5,000 A
 Secondary voltage 22.5 mV
 Operating temperature -40 °C...80 °C
 Storage temperature -40 °C...80 °C
 Measuring error <± 0.5%
 Nominal turns ratio 44.44 kA/V
 Protection degree IP57
 Cable diameter 6.1 mm
 Frequency band 50...60 Hz
 Measurement error <± 0.5% (of measuring range limit)
