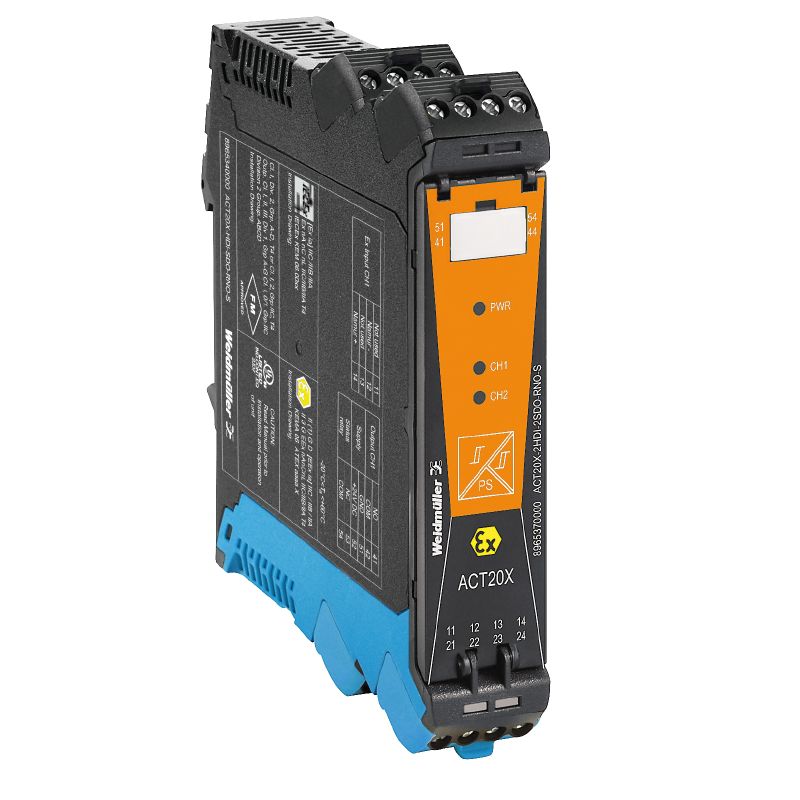

8965400000 - Single-Channel Solenoid Valve Switch with Status Relay
8965400000 - Single-Channel Solenoid Valve Switch with Status Relay
SKU: SKU: 8965400000 Download PDF
- 8965400000 - Single-Channel Solenoid Valve Switch with Status Relay
- 8965400000 - Single-Channel Solenoid Valve Switch with Status Relay
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

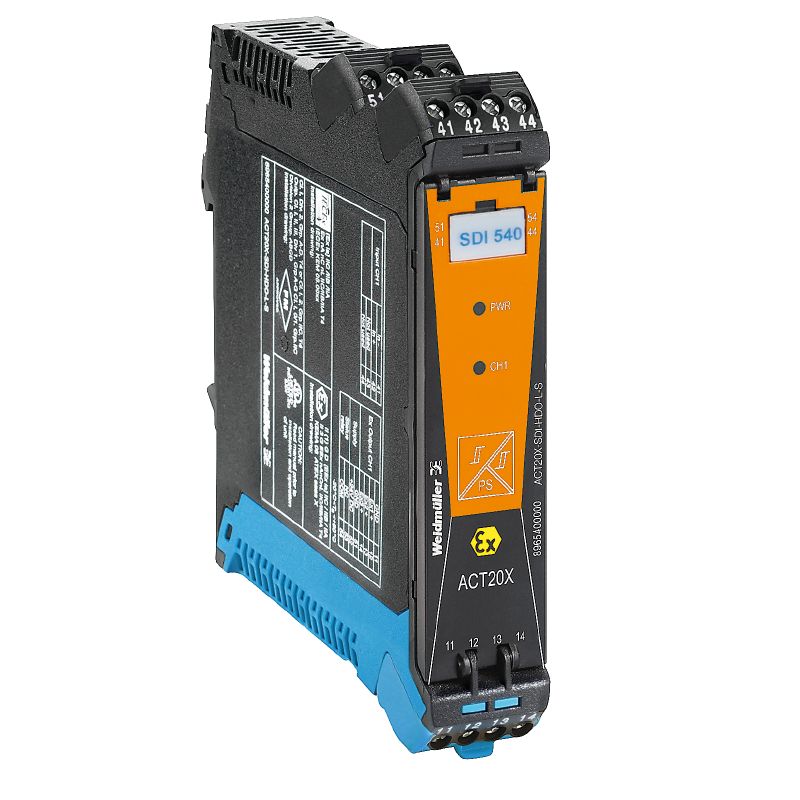

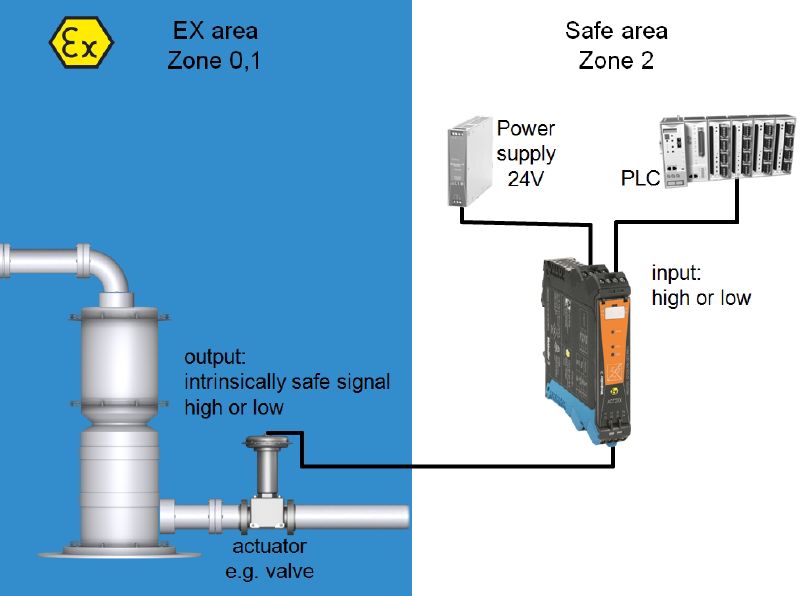

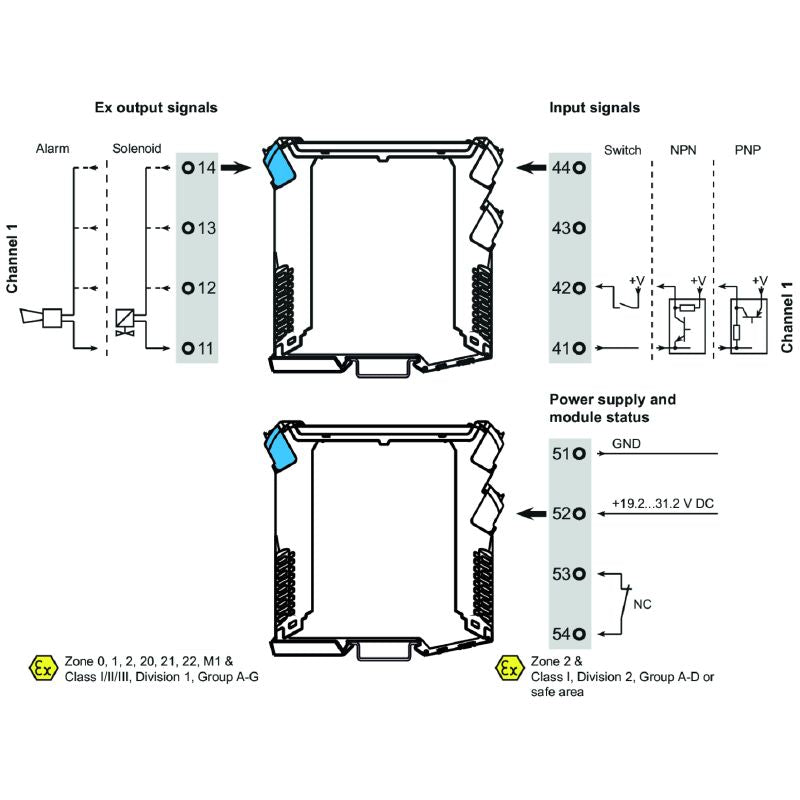

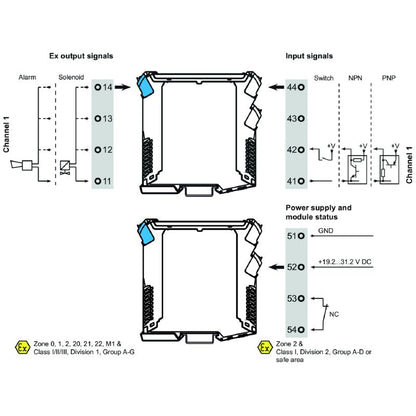

Introducing the ACT20X-SDI-HDO-S device, a versatile solenoid valve switch and alarm transmitter designed for demanding environments This unit features one input positioned in a non-hazardous zone and an output designed for Zone 0 hazardous areas, making it suitable for controlling applications like magnetic valves and alarm systems Available in both single and dual-channel options, it boasts the ability to operate in Zone 2 and handle signals from various zones.

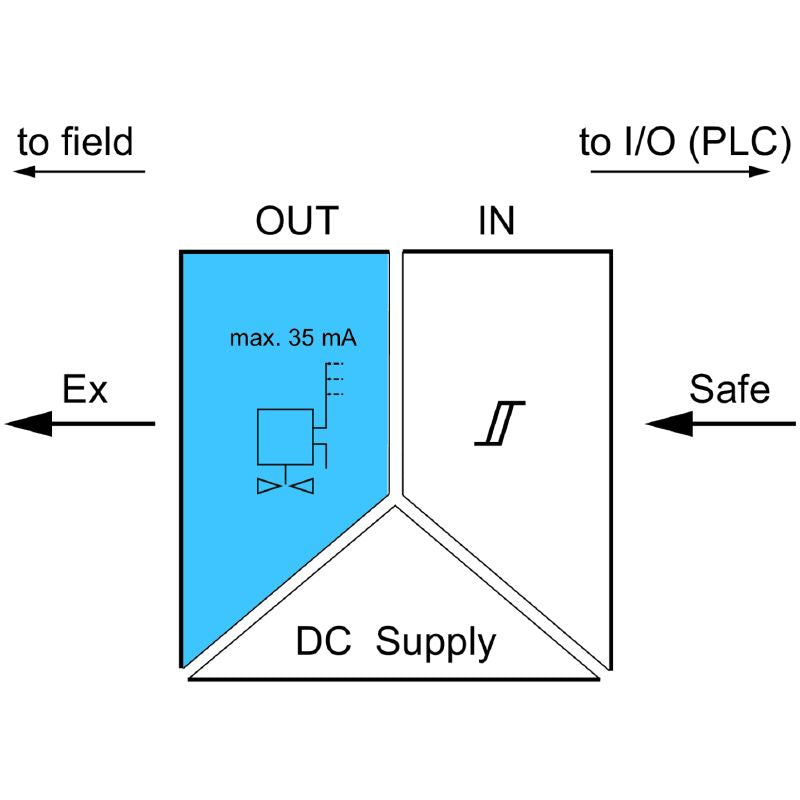

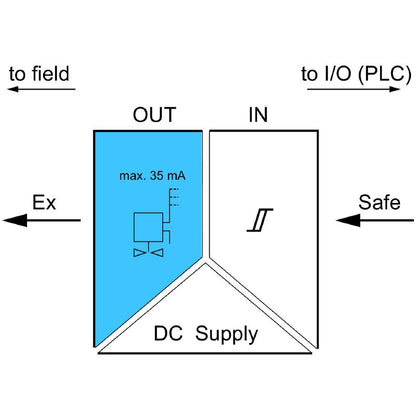

The unit's self-diagnostic functions provide real-time monitoring of errors via a dedicated status relay, ensuring reliability Additionally, the module includes three-way isolation between the input, output, and power supply for enhanced safety and performance.
Features and Benefits:
•Control for solenoids, acoustic alarms, and LEDs in hazardous areas.

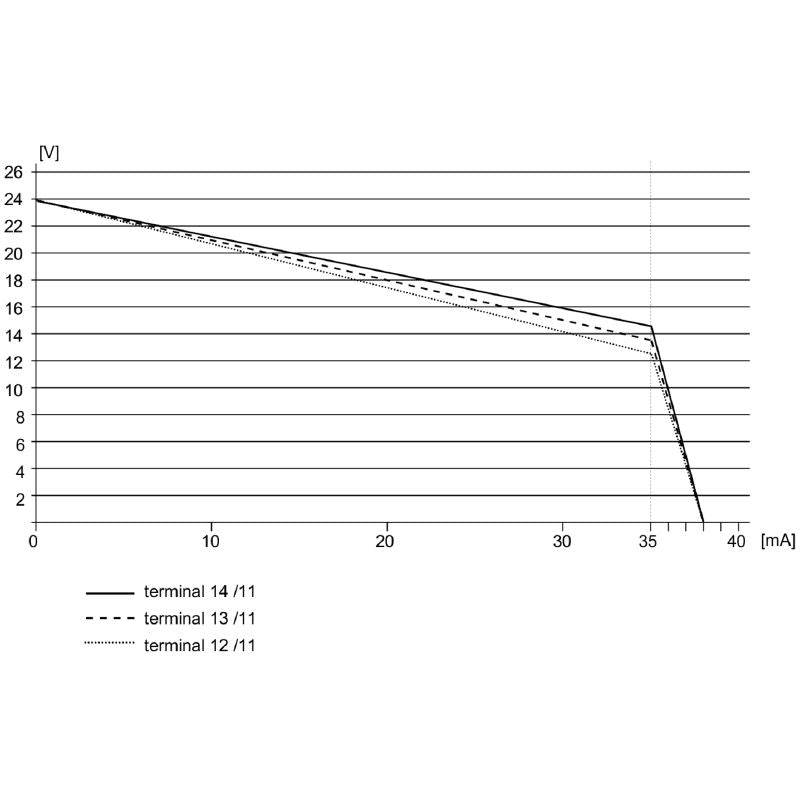

•Options for 35 mA or 60 mA output current in 1-channel or 2-channel configurations.

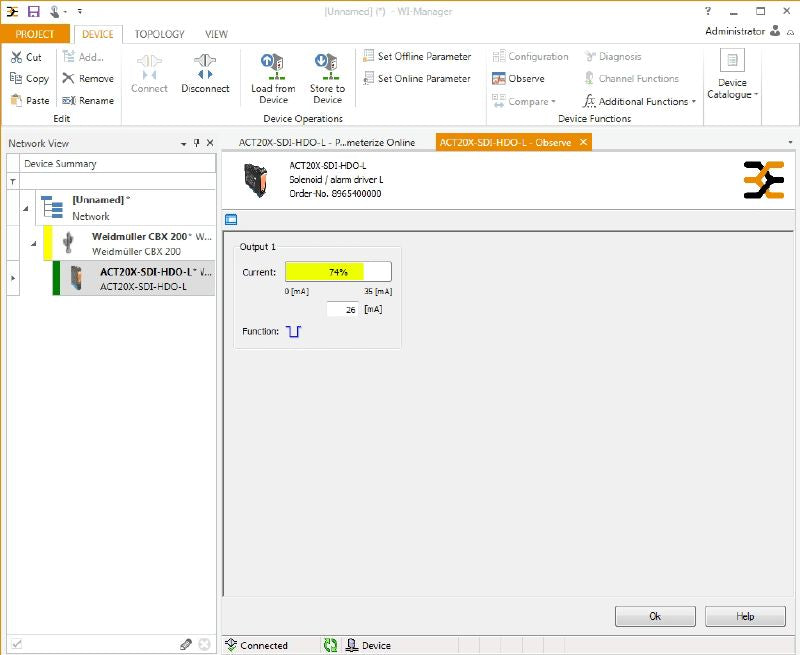

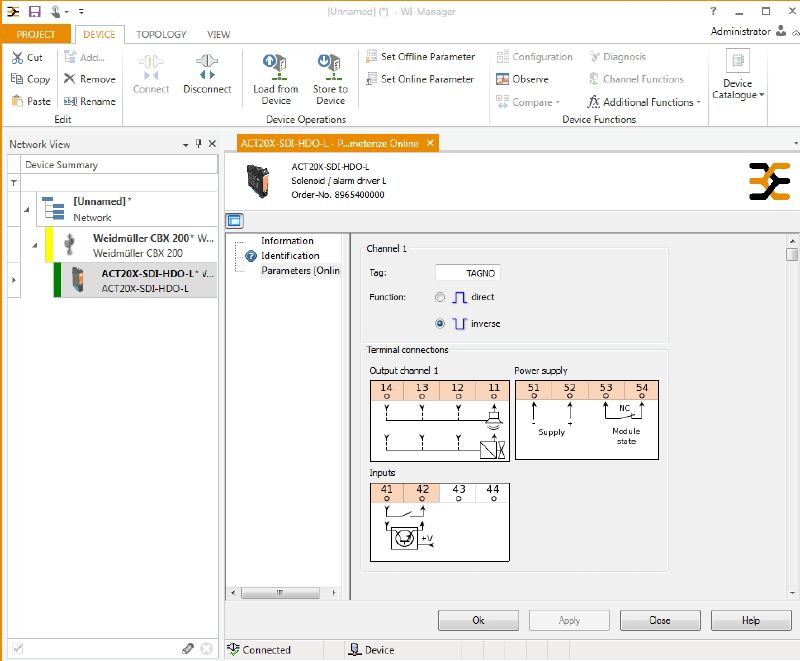

•Configuration and diagnostics possible using FDT/DTM Software.
•Choice of direct or inverted functionality for channels.
•LED indicators for operational status and errors.
•Extended self-diagnostics for error monitoring.
•Suitable for use in hazardous areas for controlling valves and alarms.
Specifications:

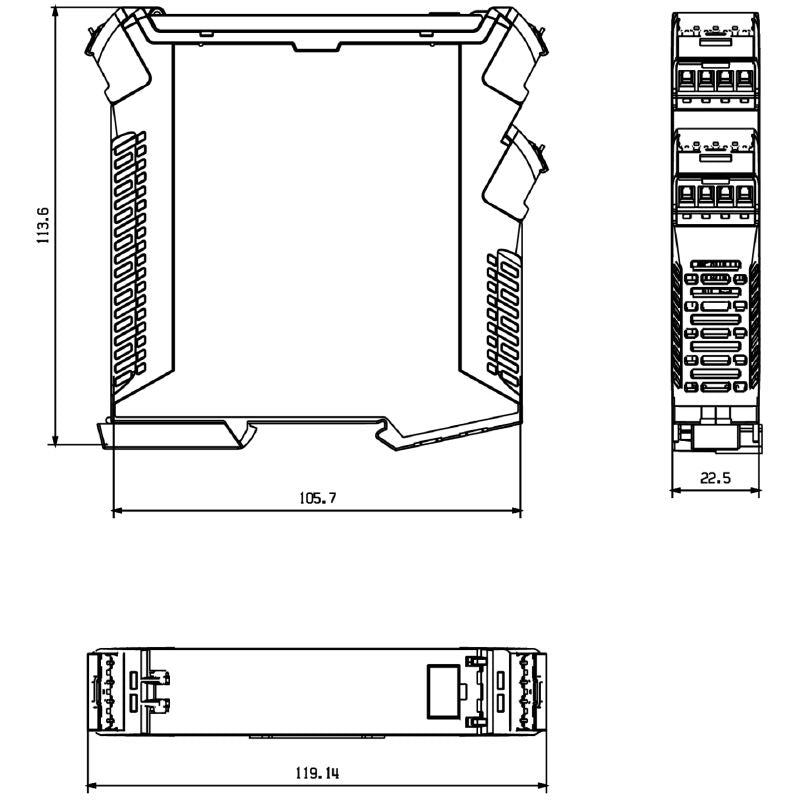

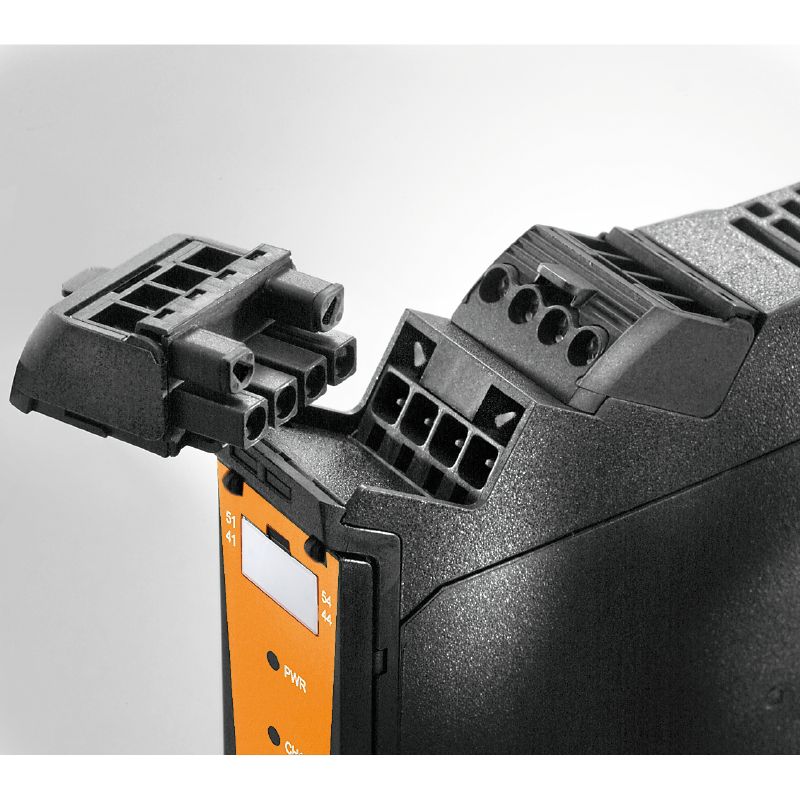

| Depth | 113.6 mm |
| Height | 119.2 mm |
| Width | 22.5 mm |
| Net weight | 170 g |
| Operating temperature | -20 °C...60 °C |
| Storage temperature | -20 °C...85 °C |
| Protection degree | IP20 |
| Supply voltage | 19.2…31.2 V DC |
| Input voltage | ≤ 28 V DC |
| Type of connection | Screw connection |
| Trigger level low | ≤ 2.0 V DC (NPN), ≤ 8.0 V DC (PNP) |
| Trigger level high | ≥ 4.0 V DC (NPN), ≥ 10.0 V DC (PNP) |
| Number of inputs | 1 |
| Number of outputs, Ex | 1 |
| Alarm function | No supply voltage, Device error |
| Continuous current | ≤ 0.5 A AC / 0.3 A DC (safe zone) |
| Nominal switching voltage | ≤ 125 V AC / 110 V DC (safe area) |
| Safety category | SIL 2 |
| MTBF | 175 a |
| Insulation voltage | 2.6 kV (input / output) |
| Rated voltage | 300 V |
