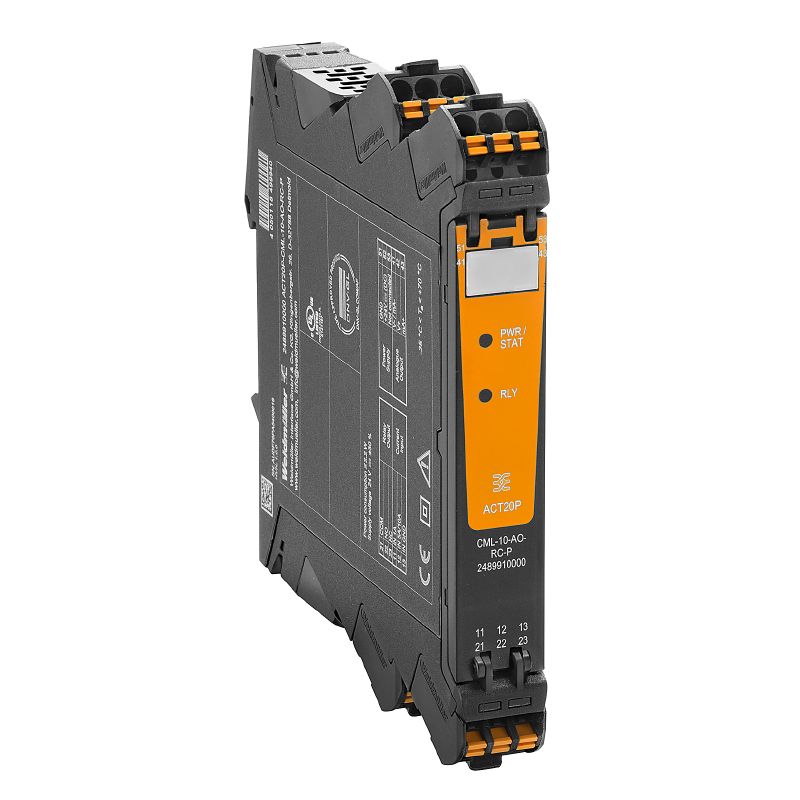

2489910000 - 10A Current Transducer with Limit Monitoring & LED Indicator

Description:

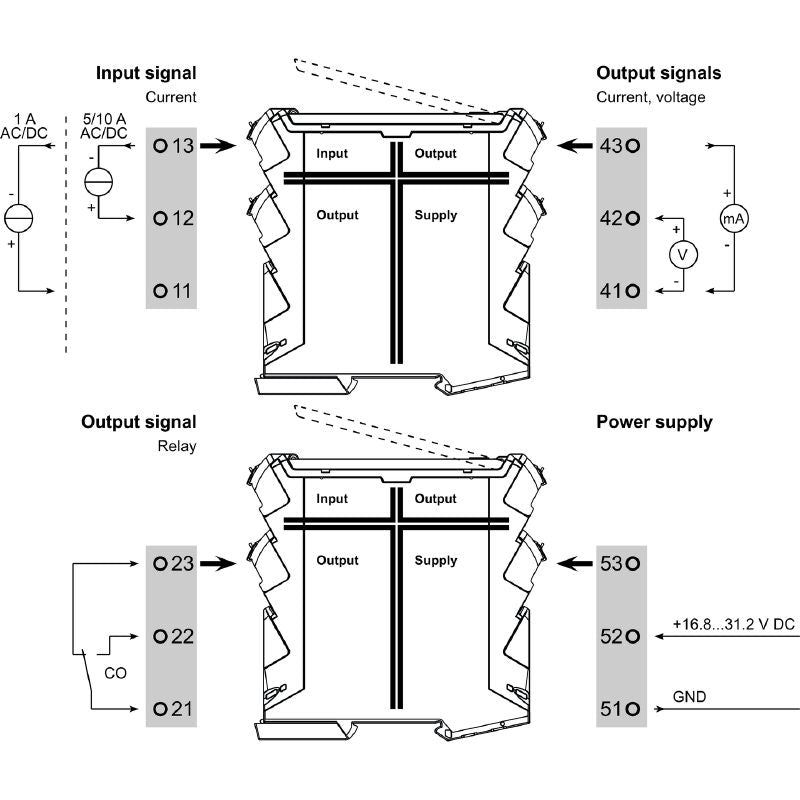

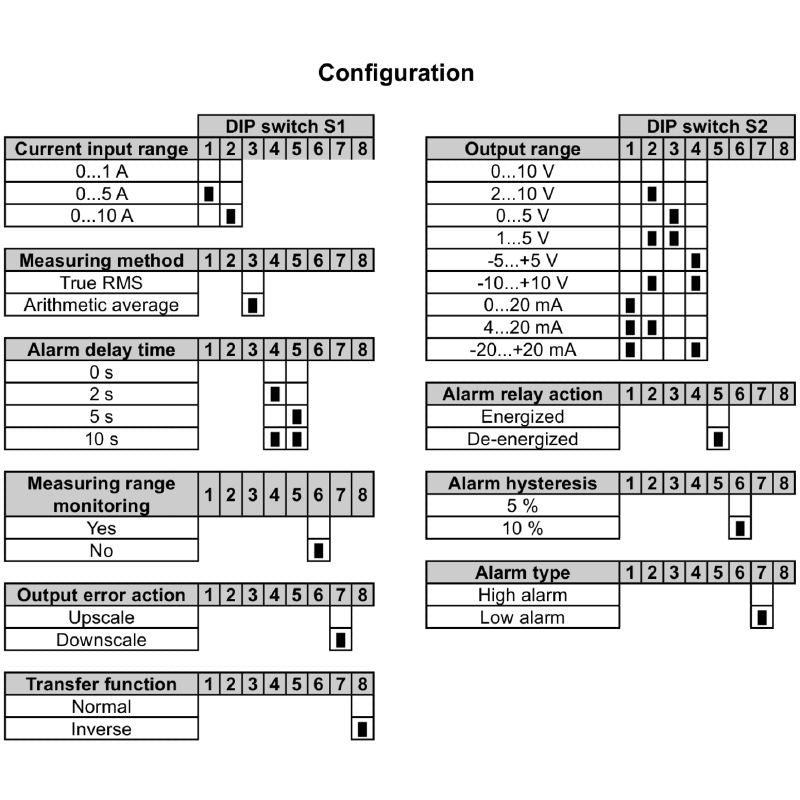

Introducing the ACT20P-CML-10-AO-RC-P, a versatile device designed for precise measurement and monitoring of AC and DC currents up to 10 A Utilizing the real effective value method, it guarantees accurate readings even when faced with distorted current waveforms This unit features built-in limit value monitoring with adjustable thresholds, lag, and hysteresis settings, along with a relay output for additional signaling.

An LED indicator is prominently displayed on the front panel, providing clear visibility of its practical functions Compliant with NE43, NE44, and NE107 standards, it maintains safety with a four-way galvanic separation in accordance with IEC/EN 61010-2-201.

Features and Benefits:

•Real effective value measurement (True RMS) or arithmetic average measurement.

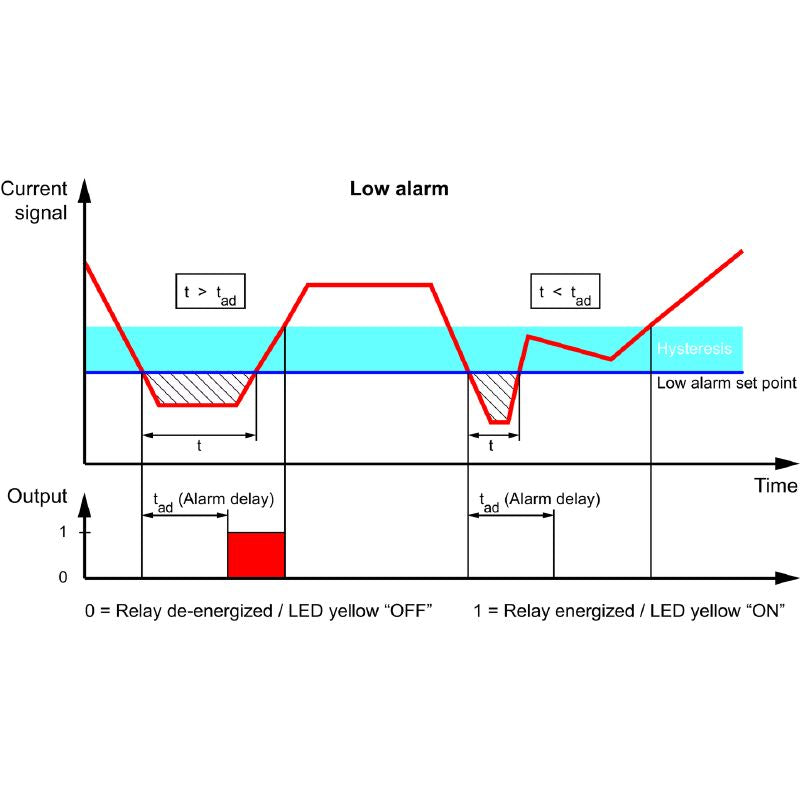

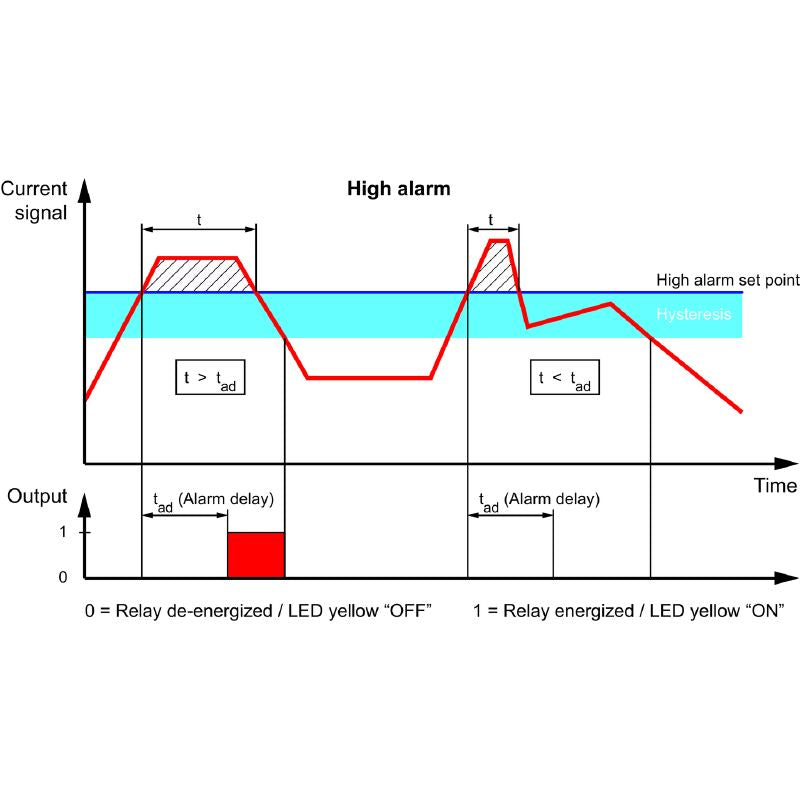

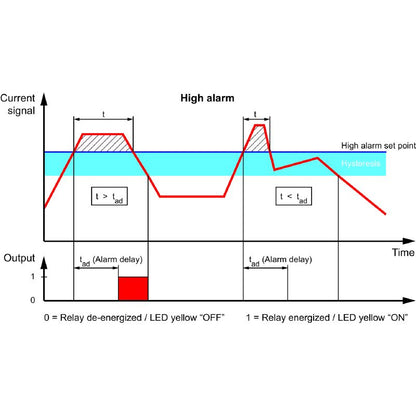

•Limit value monitoring for both overcurrent and undercurrent.

•Relay output using the open-circuit/closed-circuit method.

•Adjustable trigger delay to filter out current peaks.

•Operational status and error indication through front panel LED.

Specifications:
