7760054247 - 89mm Depth Digital Device, IP20, Compliant with RoHS Standards

Description:

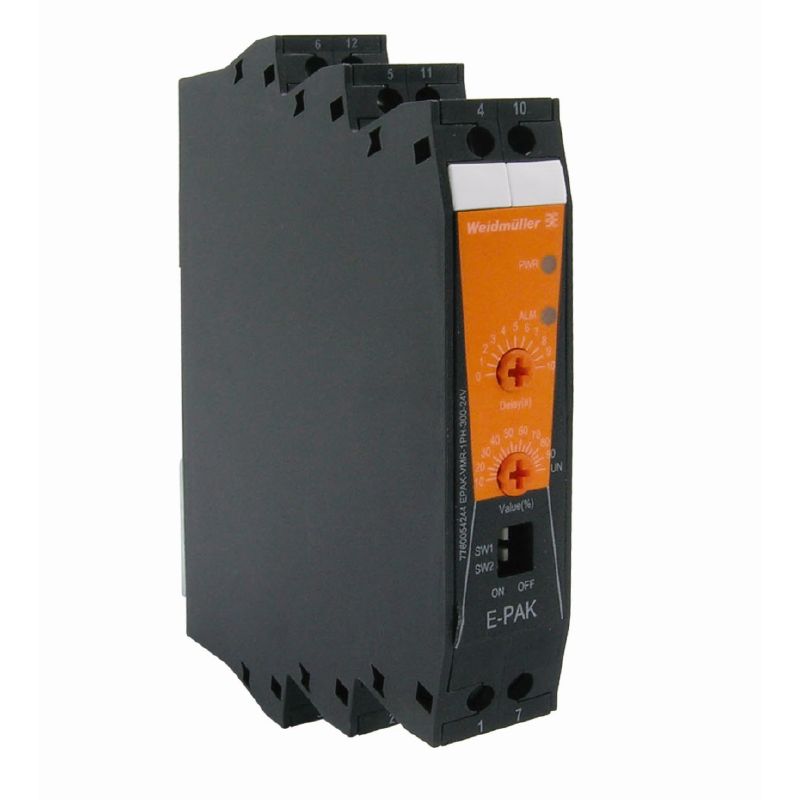

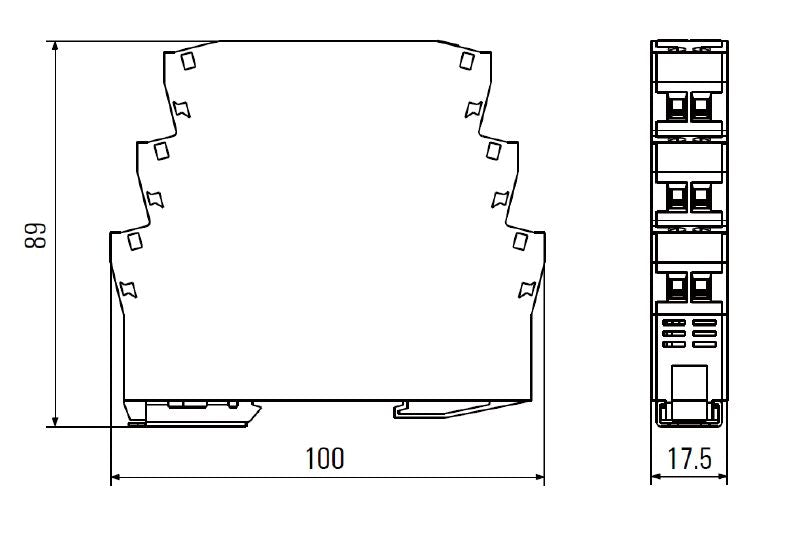

Introducing the EPAK-CMR-1PH-5-230V, a compliant device adhering to RoHS standards Its compact dimensions of 89 mm in depth, 100 mm in height, and 175 mm in width make it suitable for a variety of applications, while its lightweight design at 80 grams ensures easy handling This device is engineered to operate effectively within a temperature range of -20 °C to 60 °C, and withstands storage temperatures from -40 °C to 85 °C.

With humidity resistance of 0 to 95% during operation (no condensation), it accommodates input currents from 01 to 5 A for both AC and DC usage within a frequency range of 40 to 60 Hz The device features a digital output with multiple alarm functionalities and supports a continuous current capacity of 3 A, enabling it to switch voltages up to 250 V AC and 30 V DC Configuration adjustments are easy with the use of DIP switches and potentiometers.

Consuming a nominal power of 15 VA, this device is capable of operating at altitudes up to 2000 meters It is protected at an electrical rating of IP20, providing an accuracy of ±5% of the nominal current and a repeat accuracy of 2% Additionally, it meets EMC compliance in accordance with IEC 61000 standards and offers robust overvoltage insulation exceeding 22 kVAC for one minute For connections, it features screw terminals with a clamping capacity rated at 2 mm², accommodating wire sizes from AWG 30 to AWG 14.

Features and Benefits:

•Screw connection type.

•Accurate within 5% of nominal current.

•IP20 protection degree.

•Compact dimensions for easy integration.

Specifications:
