2593350000 - Rogowski Coil 125mm Diameter, 4.5m Cable, 5000A Capacity

2593350000 - Rogowski Coil 125mm Diameter, 4.5m Cable, 5000A Capacity

SKU: 2593350000   Download PDF

Select a Variant:
  • 2593350000 - Rogowski Coil 125mm Diameter, 4.5m Cable, 5000A Capacity
Qty:
Now $173.64   Web pricing policy
BEFORE   $0.00 Now $173.64 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

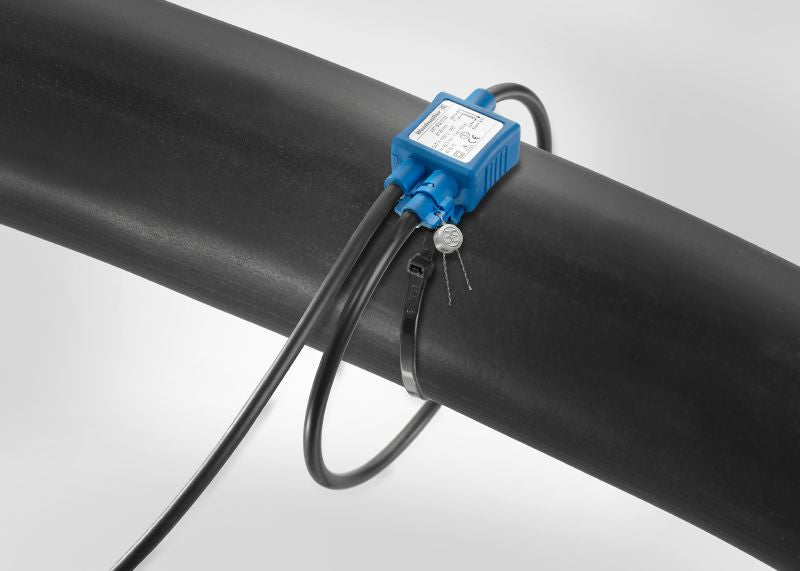

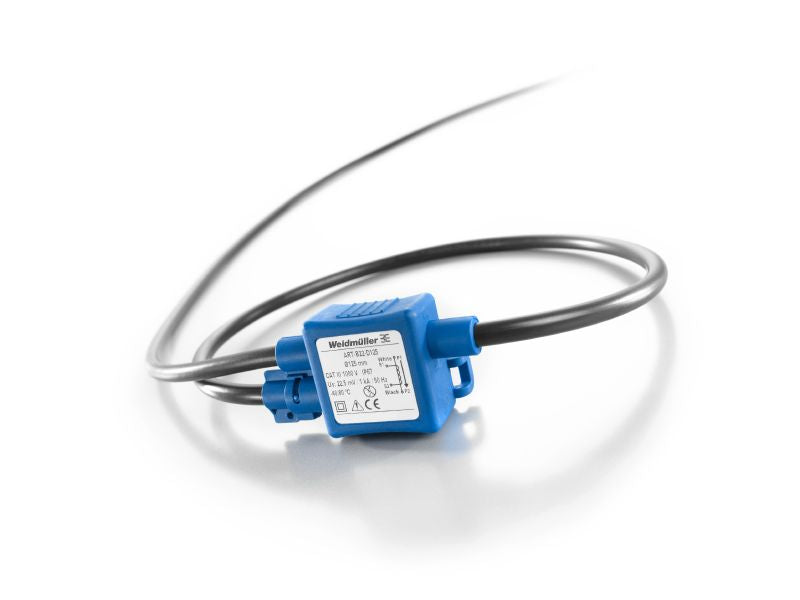

Introducing the RCMA-B22-D125-45 Rogowski coil, expertly crafted for precise electronic measurements of alternating current This coil features a measuring component with a conductor diameter of 61 mm and is housed in a durable casing that can be easily secured using cable ties Equipped with a bayonet fastening that can be sealed, this product works seamlessly with compatible Weidmüller transducers, ensuring accurate current measurements across a broad range without the risk of saturation effects.

Features and Benefits:

    •Conductor diameter of the measuring coil is 6.1 mm.

    •Housing tabs for secure attachment with cable ties.

    •Sealable bayonet fastening.

    •Measurement remains accurate across a broad current range.

Specifications:

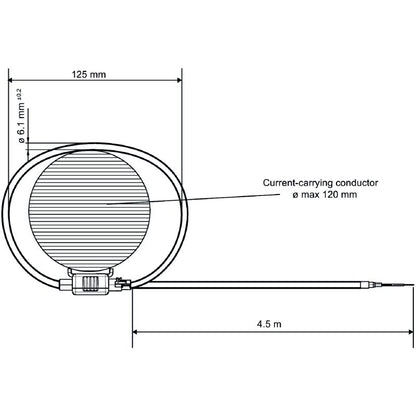

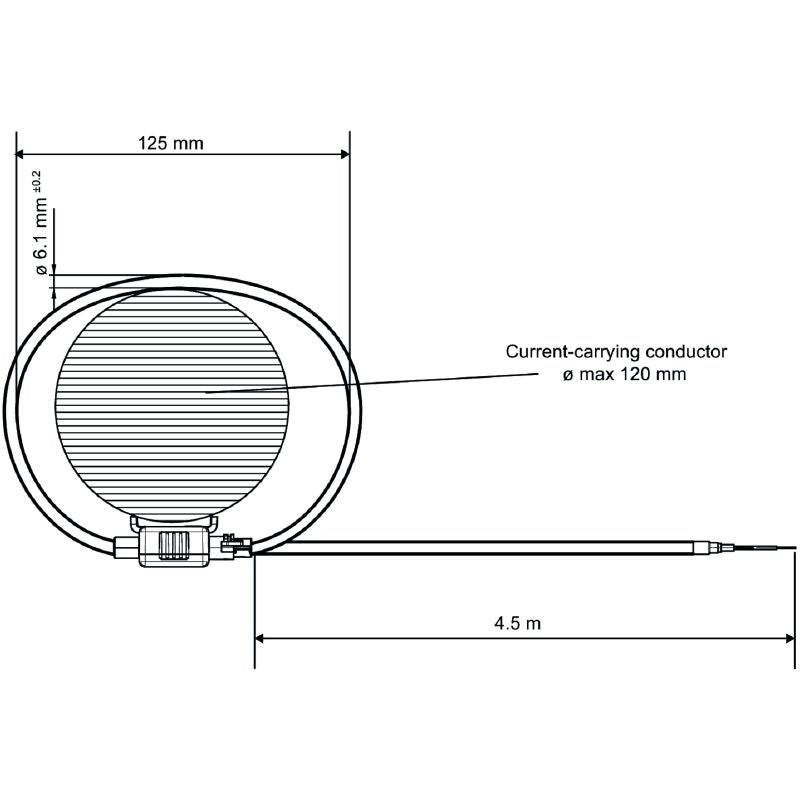

 Diameter 125 mm
 Cable length 4.5 m
 Cable diameter 6.1 mm
 Primary current 5000 A
 Operating temperature -40 °C to 80 °C
 Storage temperature -40 °C to 80 °C
 Frequency band 50...60 Hz
 Measurement error <± 0.5% (of measuring range limit)
 Nominal turns ratio 44.44 kA/V
 Phase shift 0.004 °
 Secondary voltage 22.5 mV
 IP Protection degree IP57
 Tolerance class 0.5
 RMS Insulation voltage 7.4 kV
