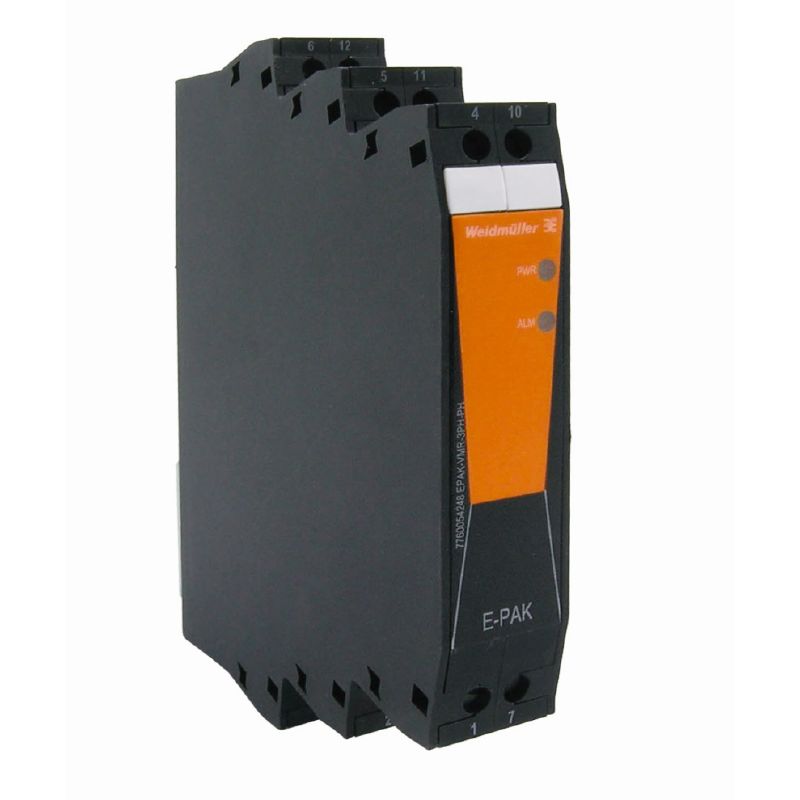

7760054178 - Compact EPAK-VI-CO Device, 89mm Deep, SIL Compliant

Description:

Experience efficient functionality with the compact EPAK-VI-CO device Measuring just 89 mm in depth, 100 mm in height, and 175 mm in width, this device is designed for a range of environments It operates optimally in temperatures between -20 °C and 60 °C and can be stored safely from -40 °C to 85 °C, making it versatile even under extreme conditions With humidity tolerance from 5% to 95% (without condensation), it’s reliable in various settings.

The device meets SIL standards per IEC 61508, ensuring dependable performance during operation An input voltage range of 0 to 10 V and a rated switching current of 01 A are integral to its functionality, along with an IP20 protection rating to guard against dust.

Features and Benefits:

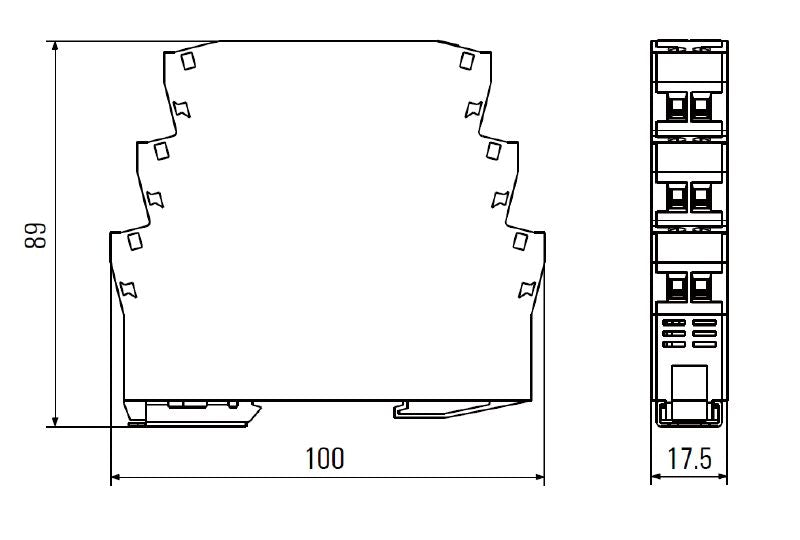

•Dimensions: Depth 89 mm, Height 100 mm, Width 17.5 mm.

•Net weight of 80 g.

•Accuracy rated at 0.15% of FSR.

•IP20 protection level.

•Nominal power consumption of 1.7 VA.

•State-of-the-art EMC standards compliant.

•Rated voltage capacity of 300 V AC.

Specifications:
