1176020000 - Configurable DC Isolating Amplifier with 4-Way Isolation

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the ACT20M-AI-2AO-S, a versatile DC isolating amplifier engineered for the reliable isolation and transformation of standard analog signals This sophisticated device effectively converts analog input signals into analog output signals while ensuring galvanic isolation It offers the added advantage of functioning as an active current loop, with the amplifier supplying the necessary loop current.

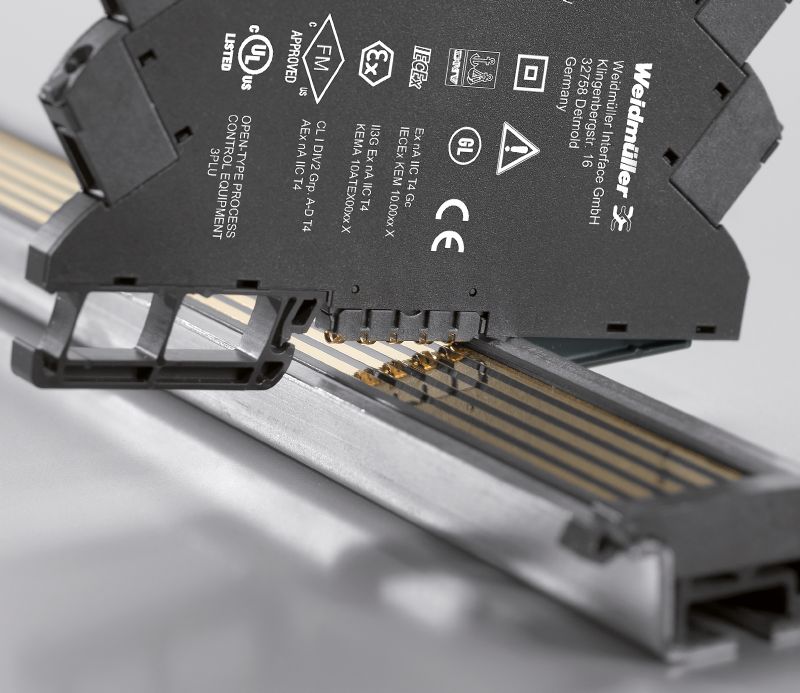

Designed for safety and efficiency, this model features a power supply that is galvanically isolated from both the input and output, allowing for direct wiring or connection through the Weidmüller rail bus With two galvanically isolated outputs, it provides an impressive four-way isolation, making it a robust solution for a variety of applications.

Features and Benefits:

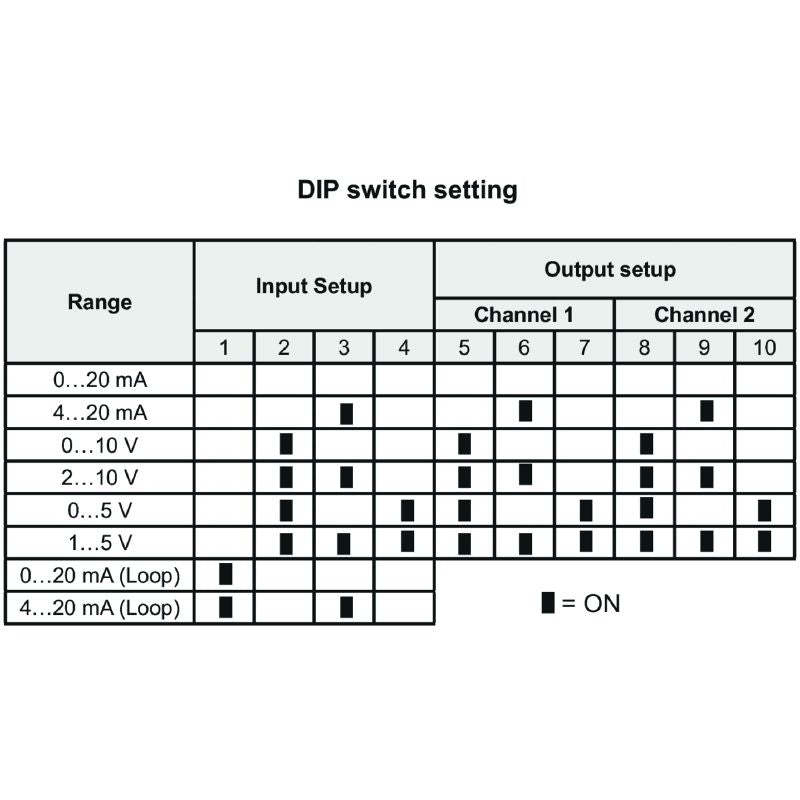

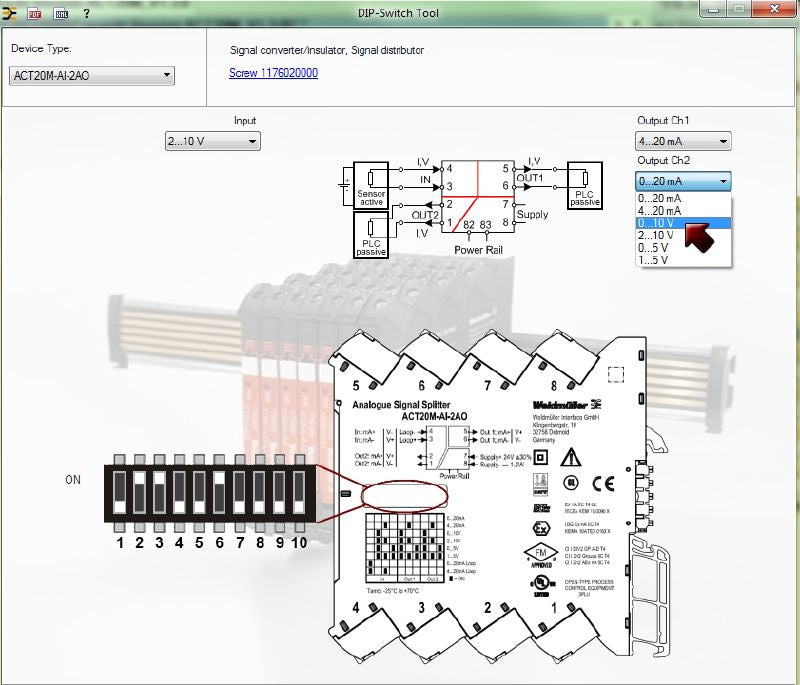

•Configurable input and output signals using DIP switches.

•Width of only 6.1 mm for space efficiency.

•Designed for mounting on TS35 rail for easy installation.

•Isolation and splitting of analogue DC current signals.

•Transmitting voltage signals.

Specifications:
