Description:

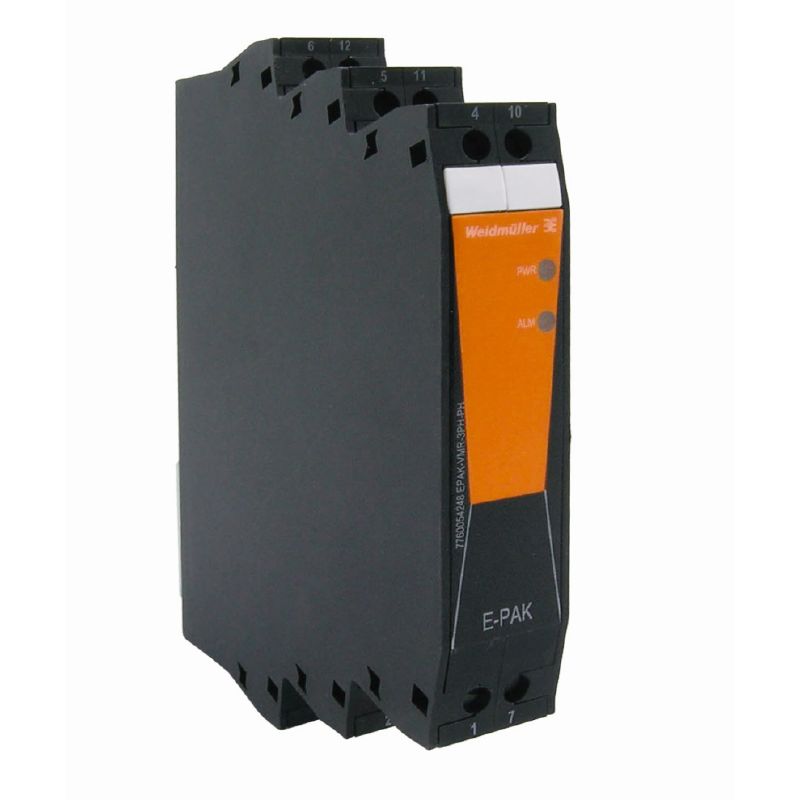

Meet the EPAK-CI-2CO-EP, a RoHS-compliant device tailored for precise performance This model measures 89 mm in depth, 100 mm in height, and 175 mm in width, with a lightweight design at just 80 g It operates effectively in temperatures ranging from -20 °C to 60 °C and can be stored safely between -40 °C and 85 °C The input current ratings are flexible, accommodating both 0 to 20 mA and 4 to 20 mA with an input resistance of ≤ 100 Ω.

It also boasts two output ports capable of the same current handling Additionally, it maintains a load impedance current of ≤ 300 Ω, making it a reliable choice for your needs.

Features and Benefits:

•Screw connection for secure data transmission.

•Protection degree of IP20.

•Nominal power consumption is low at 1.7 VA.

•Accurate with 0.1% FSR.

Specifications:

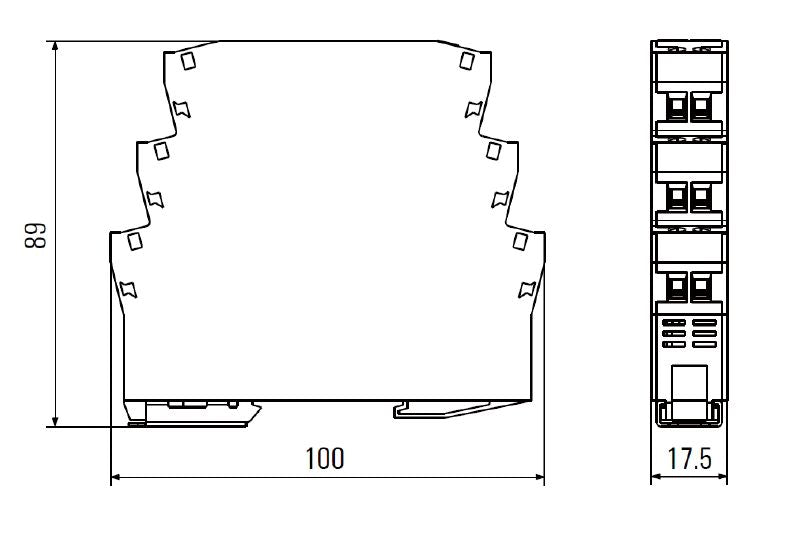

Depth	89 mm
Height	100 mm
Width	17.5 mm
Net weight	80 g
Storage temperature	-40 °C to 85 °C
Operating temperature	-20 °C to 60 °C
Input current	0...20 mA, 4...20 mA
Input resistance, current	≤ 100 Ω
Number inputs	1
Number of outputs	2
Output current	0...20 mA, 4...20 mA
Rated switching current	0.1 A
Number analogue outputs	2
Accuracy	0.1% FSR
Nominal power consumption	1.7 VA
Power consumption	≤ 1.4 W
Supply voltage	20...35 V DC
Insulation voltage	1.5 kV
Rated voltage	300 V
Surge voltage category	II
Protection degree	IP20
