8604430000 - MCZ PT100/3 CLP 4-20 mA Temperature Converter, -40 to 100 °C (Pack of 10)

8604430000 - MCZ PT100/3 CLP 4-20 mA Temperature Converter, -40 to 100 °C (Pack of 10)

SKU: 8604430000   Download PDF

Select a Variant:
  • 8604430000 - MCZ PT100/3 CLP 4-20 mA Temperature Converter, -40 to 100 °C (Pack of 10)
Qty:
Now $1,024.30   Web pricing policy
BEFORE   $0.00 Now $1,024.30 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

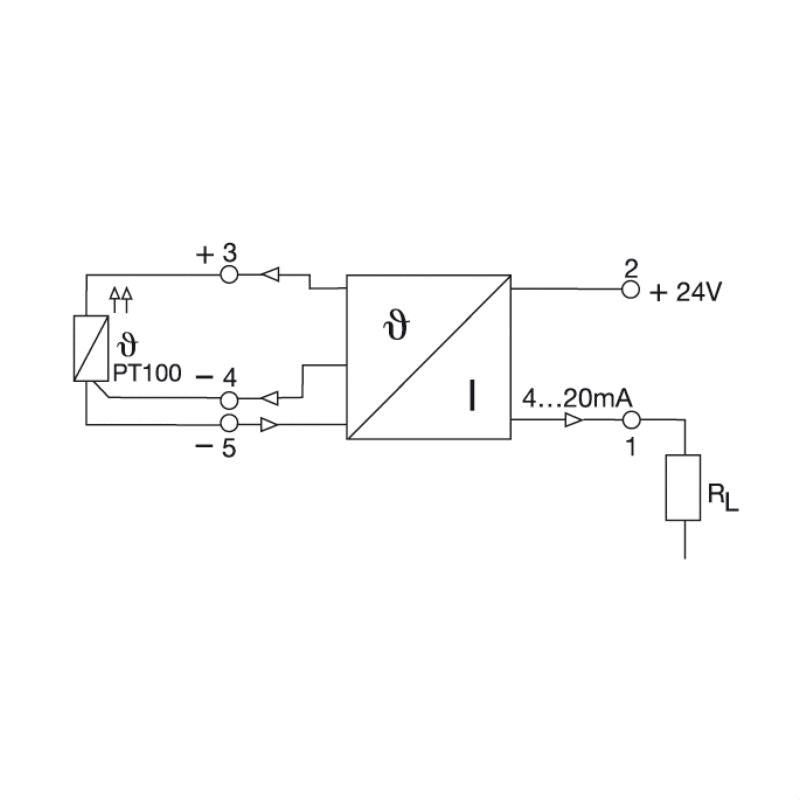

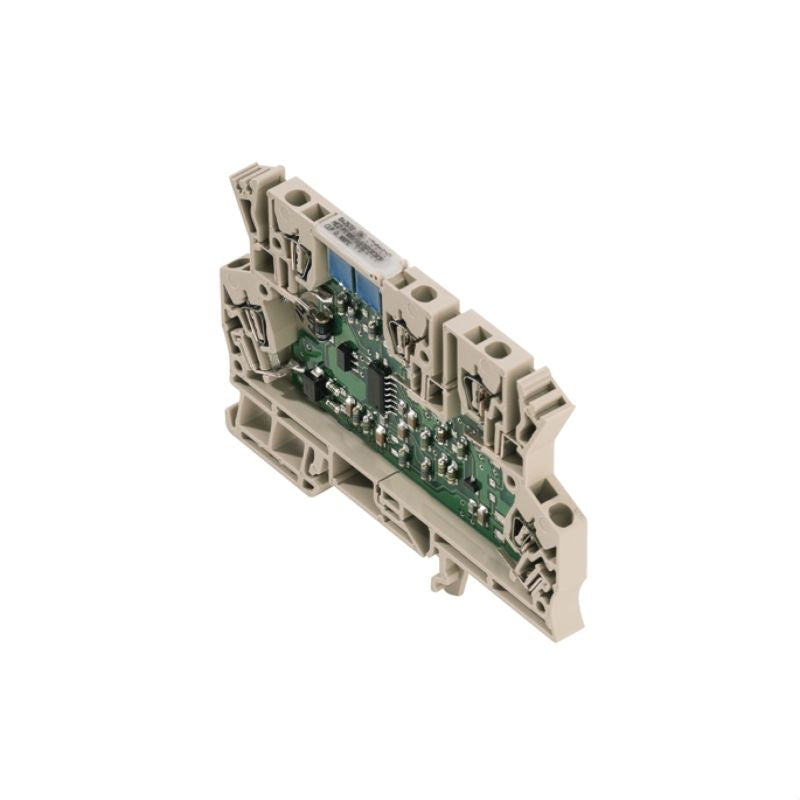

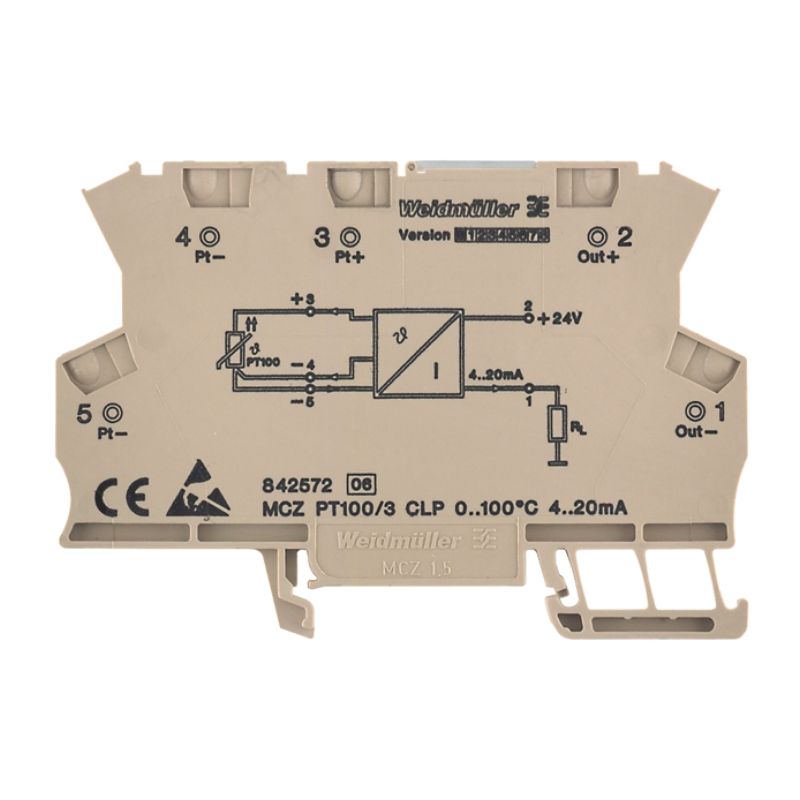

The MCZ PT100/3 CLP is an advanced temperature converter tailored for 2- or 3-wire connection setups Utilizing current loop power, this device features a tension-clamp connection and outputs a consistent 4-20 mA signal With a temperature measurement range of -40 to +100 °C, it’s an ideal solution for a variety of industrial applications Additionally, this model comes with safety certifications to verify its compliance with industry standards.

Features and Benefits:

    •Output current powered by a loop at 4-20 mA.

    •Tension-clamp connection for easy installation.

    •Compact design with a width of 6 mm.

    •Supports temperatures from -40 to +100 °C.

    •Compliant with RoHS regulations.

Specifications:

 Dimensions 91 mm x 6 mm x 63.2 mm
 Storage temperature -25 °C...85 °C
 Operating temperature -25 °C...50 °C
 Accuracy Typ.: 0.2 %, max. 0.5 %
 Output current (loop) 4...20 mA
 Supply voltage max. 30 V / min. 9 V + (20 mA x RL)
 Protection degree IP20
 Clamping range, rated connection 1.5 mm²
 Number of inputs 1
 Sensor PT100 (3 wire)
 Number of outputs 1
 Long-term drift 0
 Step response time 10 ms
