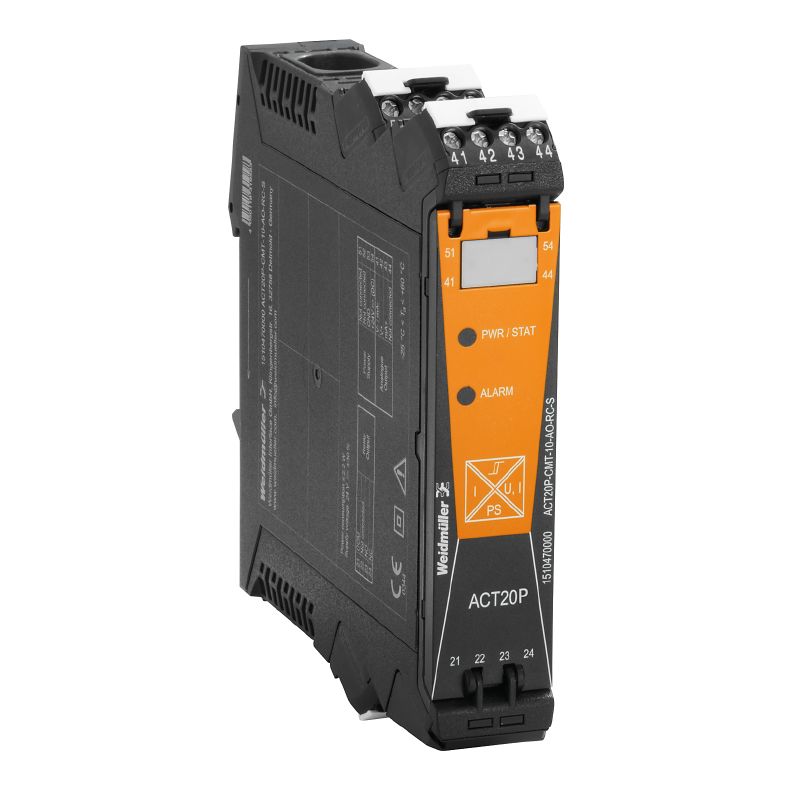

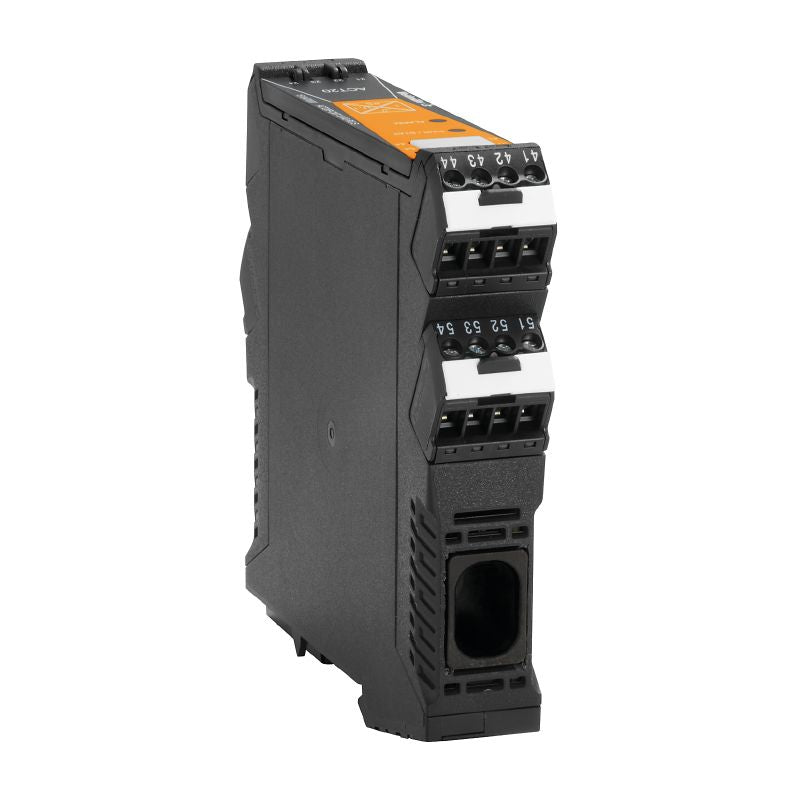

1510470000 - 60A AC/DC Current Monitor with Relay and Adjustable Limits

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the ACT20P-CMT-XX-(AO)-RC-S series monitoring devices, specifically engineered to accurately measure and track both AC and DC currents with a capacity of up to 60 A These sophisticated tools leverage the real effective value method, guaranteeing precise measurements even in the presence of distorted current waveforms The built-in limit value monitoring feature allows for adjustable thresholds, delays, and hysteresis, further enhanced by the ability to connect relay outputs for added functionality.

Perfect for comprehensive current management and monitoring.

Features and Benefits:

•True RMS and arithmetic averaging measurement capabilities.

•Contactless through-hole technology for current measurement.

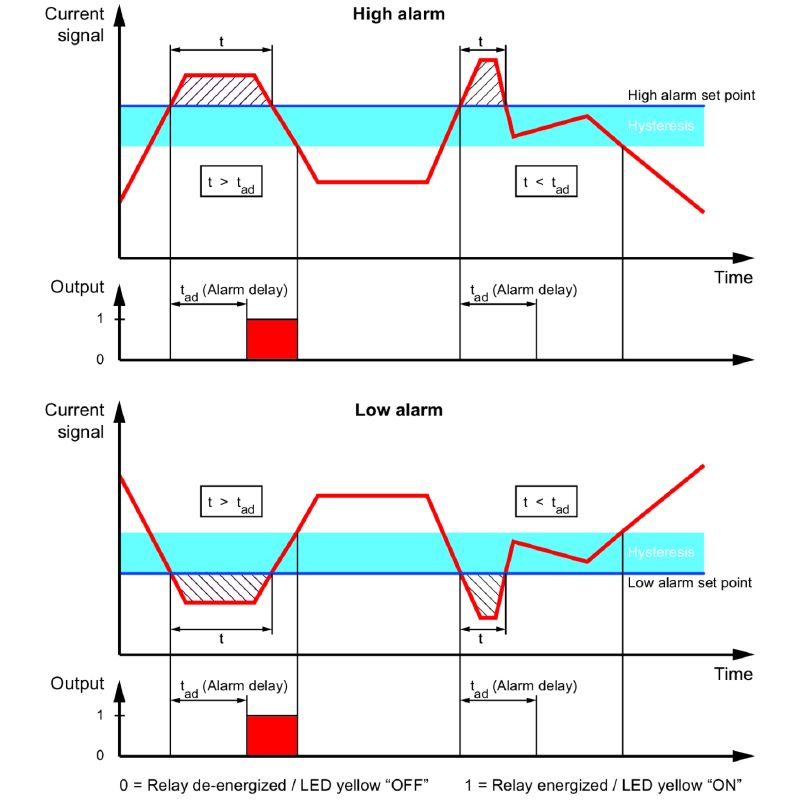

•Integrated limit monitoring for both overcurrent and undercurrent situations.

•Relay output following open/closed-circuit principles.

•Adjustable trigger delay for managing current peaks.

•Operational status and error indicators via front panel LED and output signaling.

•Four-way galvanic isolation for enhanced safety as per IEC/EN 61010-2-201.

Specifications:
