Description:

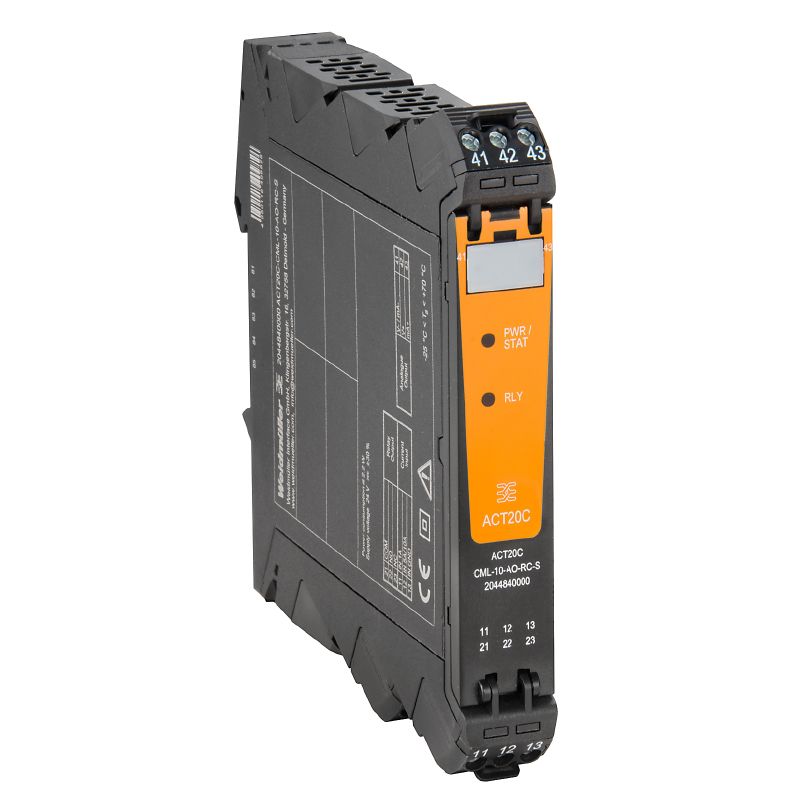

Introducing the ACT20C-CML-10-AO-RC-S, an advanced device designed for precise measurement and monitoring of both AC and DC currents, capable of handling up to 10 A Utilizing the real effective value method, it guarantees accurate readings even with complex current waveforms Additionally, it features a built-in monitoring system with customizable thresholds, delays, and hysteresis, along with a relay output for enhanced functionality.

Perfect for applications requiring reliable current management.

Features and Benefits:

•Real effective value measurement (True RMS) or arithmetic averaging measurement.

•Limit value monitoring for overcurrent or undercurrent.

•Relay output based on the open-circuit/closed-circuit principle.

•Variable trigger delay that can be adjusted.

•Operational status and error indication via a front panel LED.

•Galvanic four-way isolation for protection according to IEC/EN 61010-2-201.

Specifications:

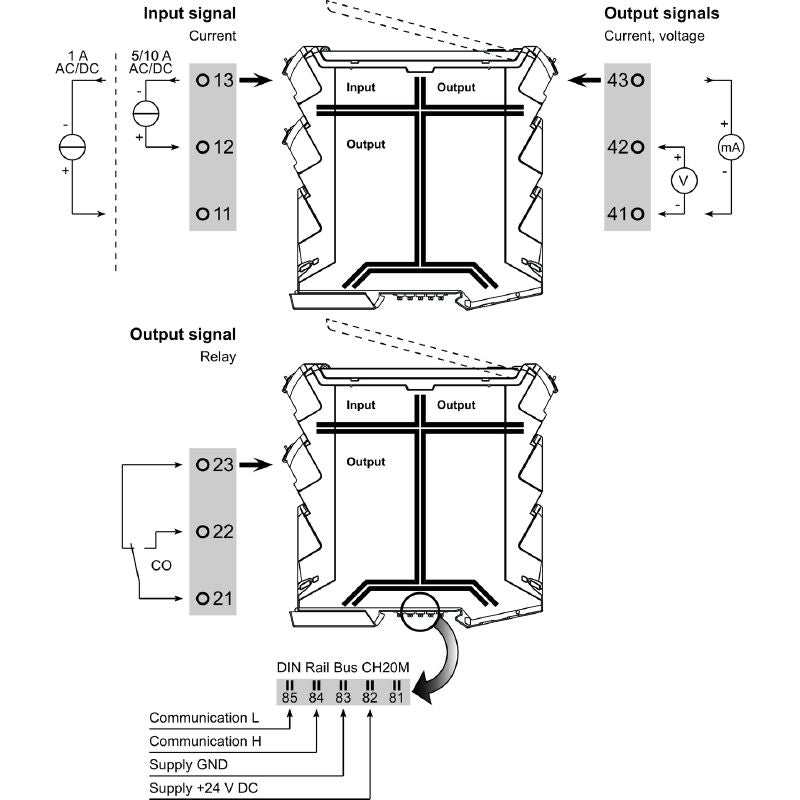

Input	0…5/10 A, Output: 0(4)-20 mA, 0-10 V, Relay
Dimensions	{'Depth': '113.6 mm', 'Height': '117.2 mm', 'Width': '17.5 mm'}
Input Frequency	AC: 15…400 Hz (true root mean square), AC: 50 Hz (arithmetic average)
Output Voltage	0...10 V, 2…10 V, 0...5 V, 1...5 V, -5…+5 V, -10...+10 V
Protection Degree	IP20
Supply Voltage	24 V DC ± 30 %
Rated Voltage	300 V AC rms
Nominal Power Consumption	3 VA
Max. Switching Voltage	{'AC': '250 V', 'DC': '24 V'}
Rated Switching Current	2 A
Relay Type	1 CO contact
Accuracy	≤ ±0.3 % @ 1 A / 5 A, ≤ ±0.6 % @ 10 A
Temperature Coefficient	≤ ±100 ppm/K @ -25…+55 °C, ≤ ±200 ppm/K @ +55…+70 °C
MTTF	130 a
Input Measurement Range	configurable 0…1/5/10 A AC (RMS) or DC
