1531940000 - ROHS Compliant 100A Output 0-20mA/2-10V Device

SKU: SKU: 1531940000 Download PDF

Select a Variant:

1531940000 - ROHS Compliant 100A Output 0-20mA/2-10V Device

SET THE QTY:

Now $461.41 Web pricing policy

~~BEFORE $0.00~~ Now $461.41 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

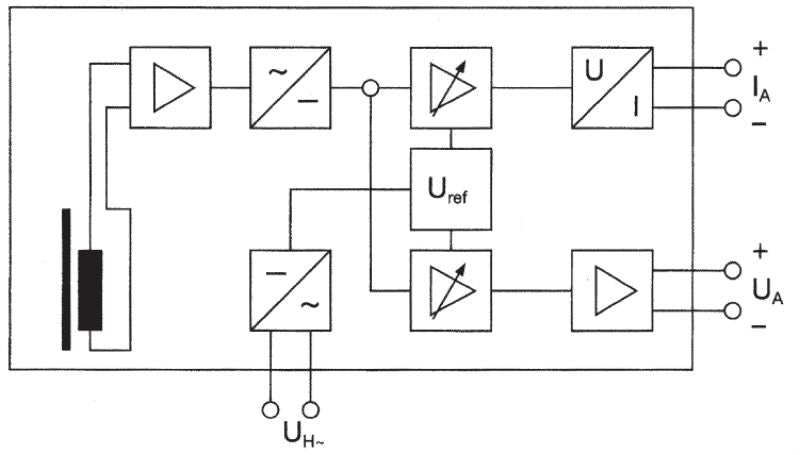

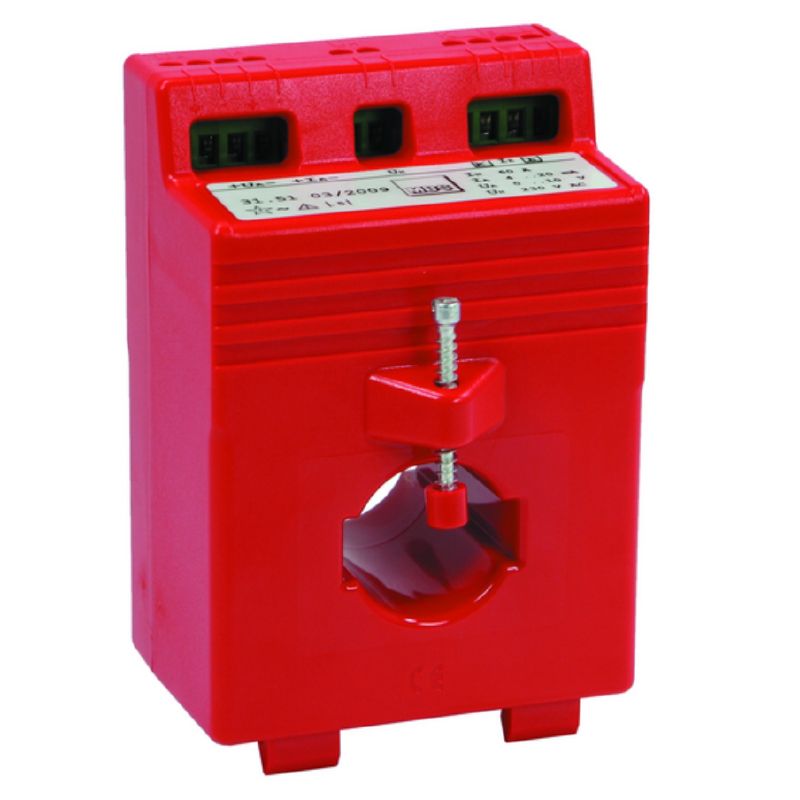

Introducing the CMA-3151-100-AO-24DC-05, a reliable device conforming to ROHS standards It boasts a primary operating current of 100 A and has the capability to output signals of 0(4)-20 mA and 0(2)-10 V, handling a load of 1 VA With an order number of 1531940000 and a GTIN (EAN) of 4050118337211, this product is readily available for purchase in single unit quantities Perfect for a variety of applications, it ensures compliance and efficiency in performance.

Features and Benefits:

•Operates within an ambient temperature range of -20 °C to 60 °C.

•Galvanic isolation is provided between input and output.

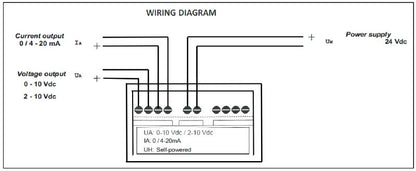

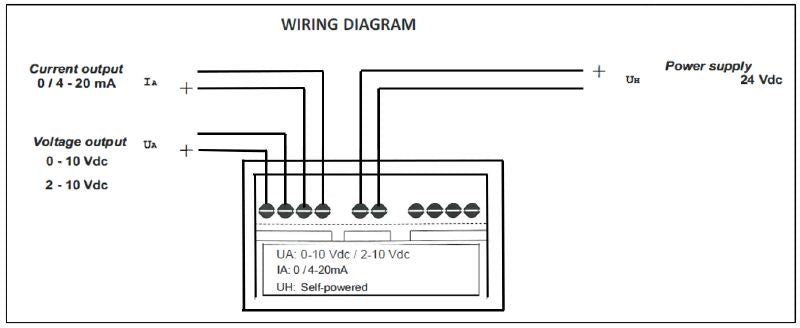

•Offers a range of output currents including 0...20 mA and 4...20 mA with a 24V DC auxiliary voltage.

•Insulation class is E.

•Protection degree is IP20.

Specifications:

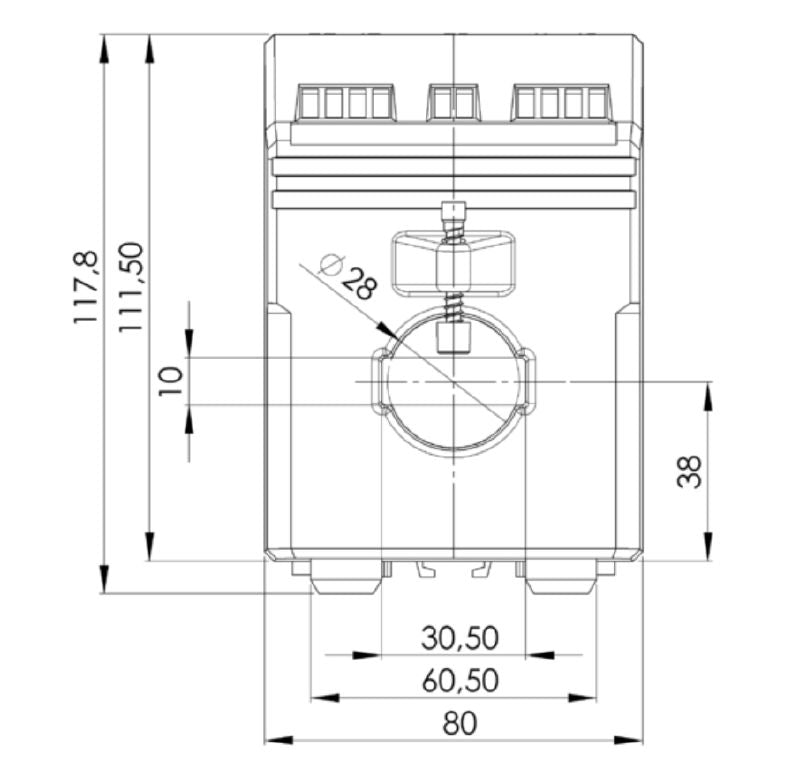

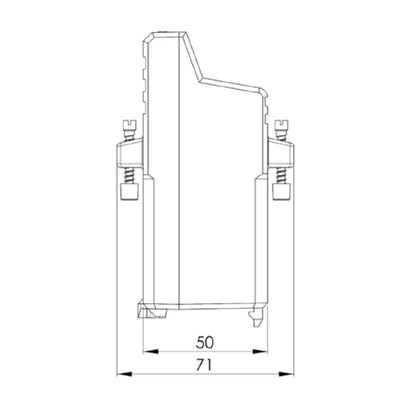

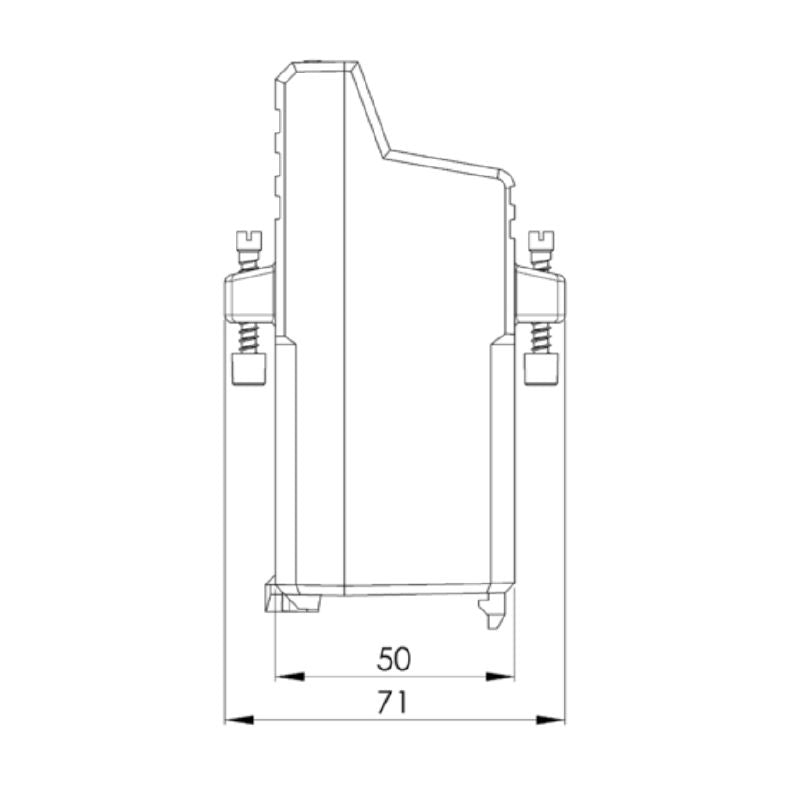

Depth	71 mm
Height	117.8 mm
Width	80 mm
Operating temperature	-20 °C...60 °C
Load	1 VA
Nominal turns ratio	10 kA/V
Secondary current	0...0.02 A
Tolerance class	0,5
Nominal frequency	50 Hz
Test voltage	4 kV
Insulation rated continuous current	1.5 x I rated
Frequency range, min.	40 Hz
Frequency range, max.	60 Hz
Dimensions of live conductors	{'Round conductor': '28 mm', 'Rail': '30 x 10 mm'}
RoHS Compliance Status	Compliant
REACH SVHC	No SVHC above 0.1 wt%
Classification	{'ETIM 6.0': 'EC002048', 'ETIM 7.0': 'EC002048', 'ETIM 8.0': 'EC002048', 'ETIM 9.0': 'EC002048', 'ETIM 10.0': 'EC002048', 'ECLASS 9.0': '27-21-09-02', 'ECLASS 9.1': '27-21-09-02', 'ECLASS 10.0': '27-21-09-02', 'ECLASS 11.0': '27-21-09-02', 'ECLASS 12.0': '27-21-09-02', 'ECLASS 13.0': '27-21-09-02', 'ECLASS 14.0': '27-21-09-02', 'ECLASS 15.0': '27-21-09-02'}
