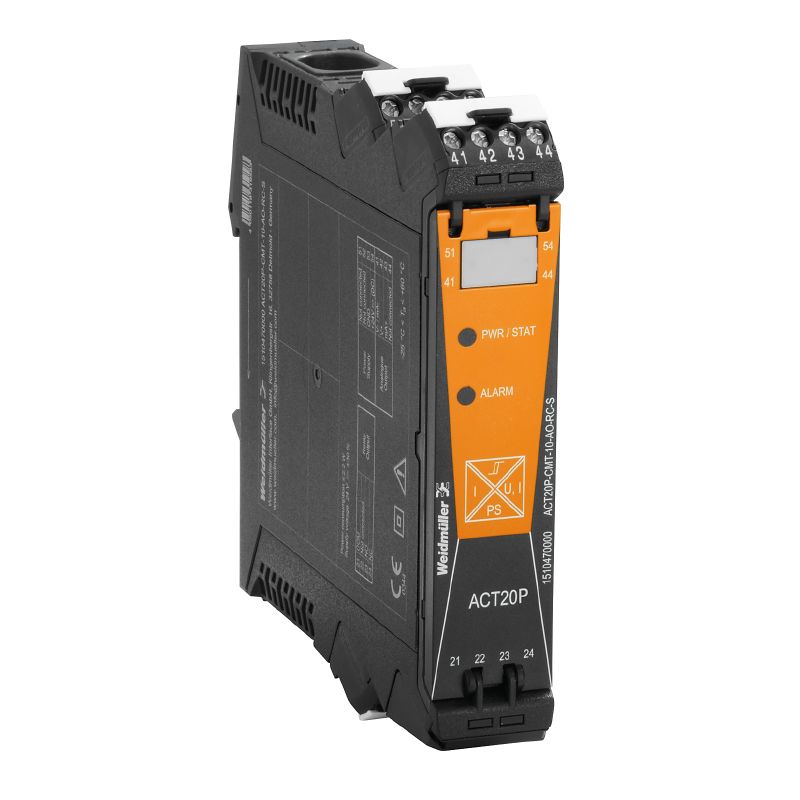

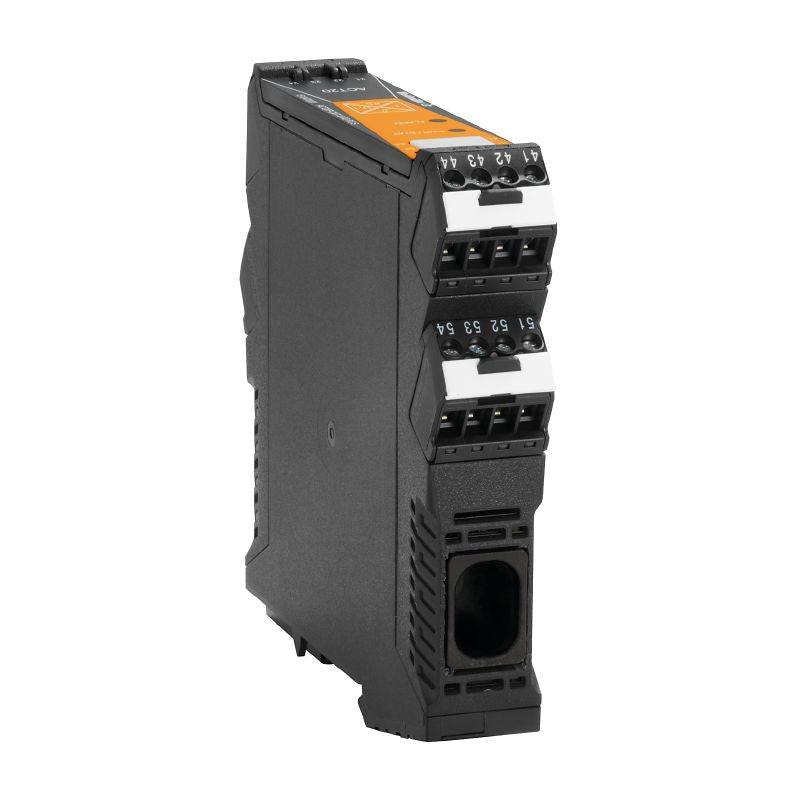

1510440000 - 60A AC/DC Current Monitor with Relay Output

Description:

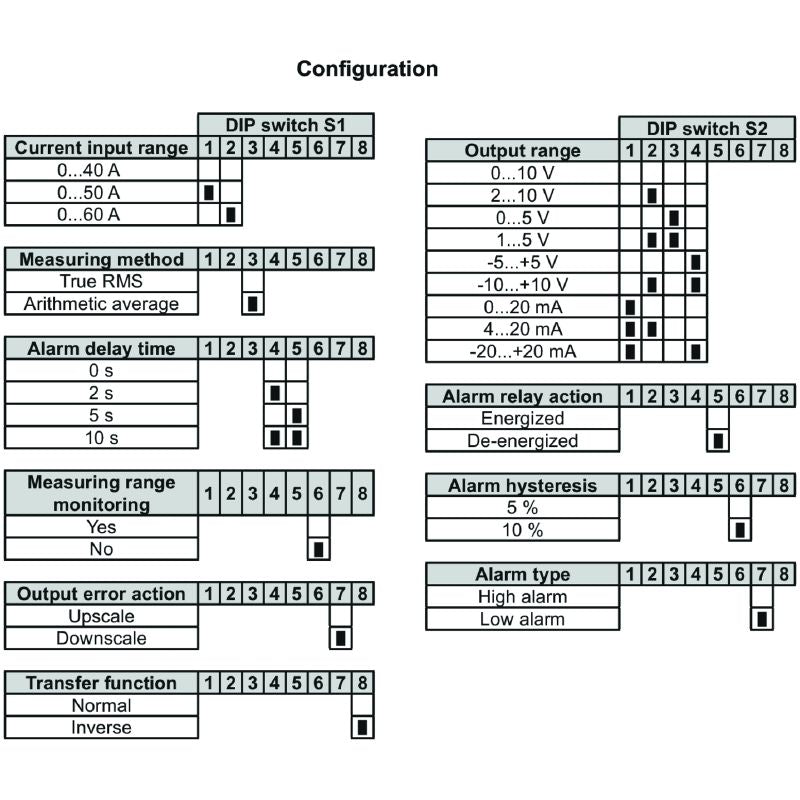

The ACT20P-CMT-XX-(AO)-RC-S series is engineered for precise measurement and monitoring of AC and DC currents, accommodating up to 60 A This innovative line employs a real effective value technique that ensures accuracy, even in the presence of distorted current waveforms Features include built-in monitoring for limit values with customizable thresholds, delays, and hysteresis, as well as a relay output for efficient functionality.

Features and Benefits:

•Real effective value measurement (True RMS) or arithmetic averaging (AA) measurement and contactless through-hole technology.

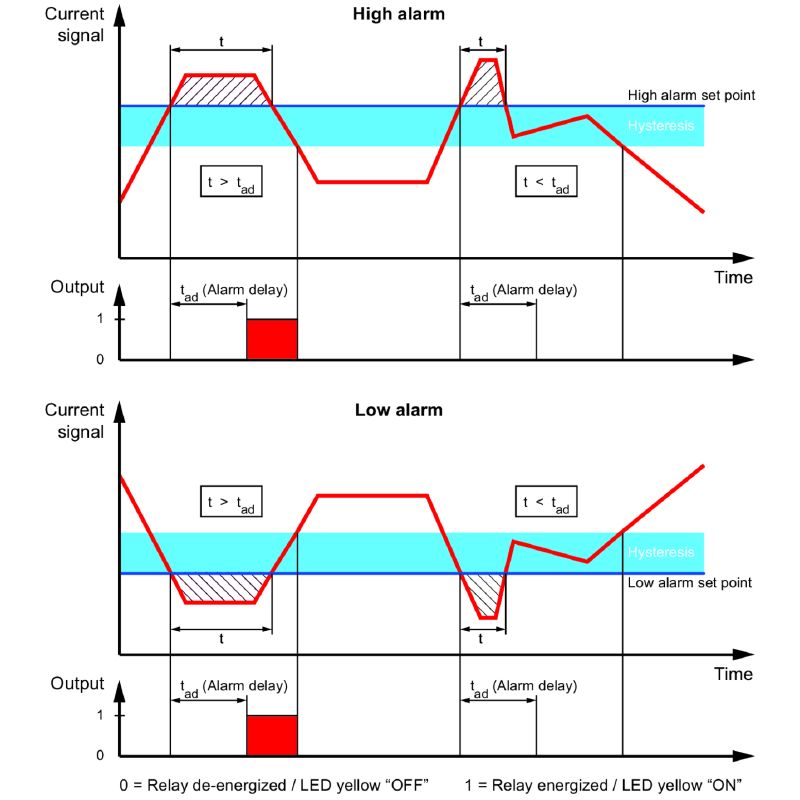

•Integrated limit value monitoring for both overcurrent and undercurrent.

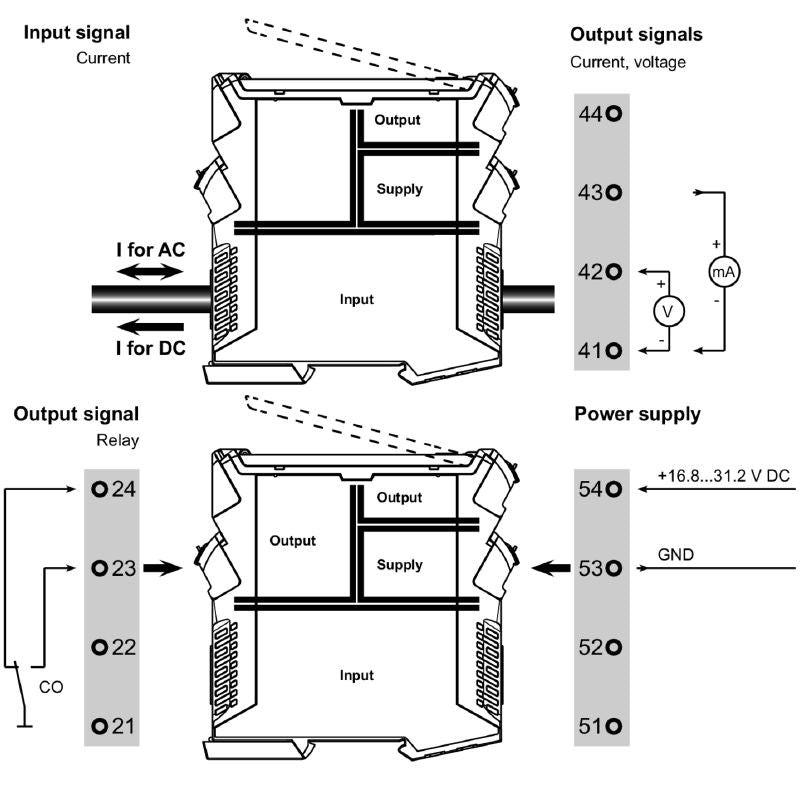

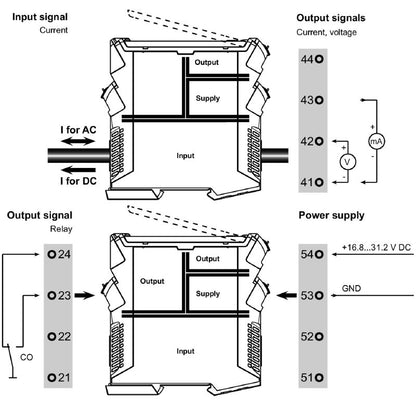

•Relay output employing open-circuit/closed-circuit principles.

•Adjustable trigger delay to filter out current peaks.

•Operational status and error indications via a front panel LED, plus output signaling as per NE43, NE44, NE107.

•Galvanic four-way isolation for safety as per IEC/EN 61010-2-201.

Specifications:
