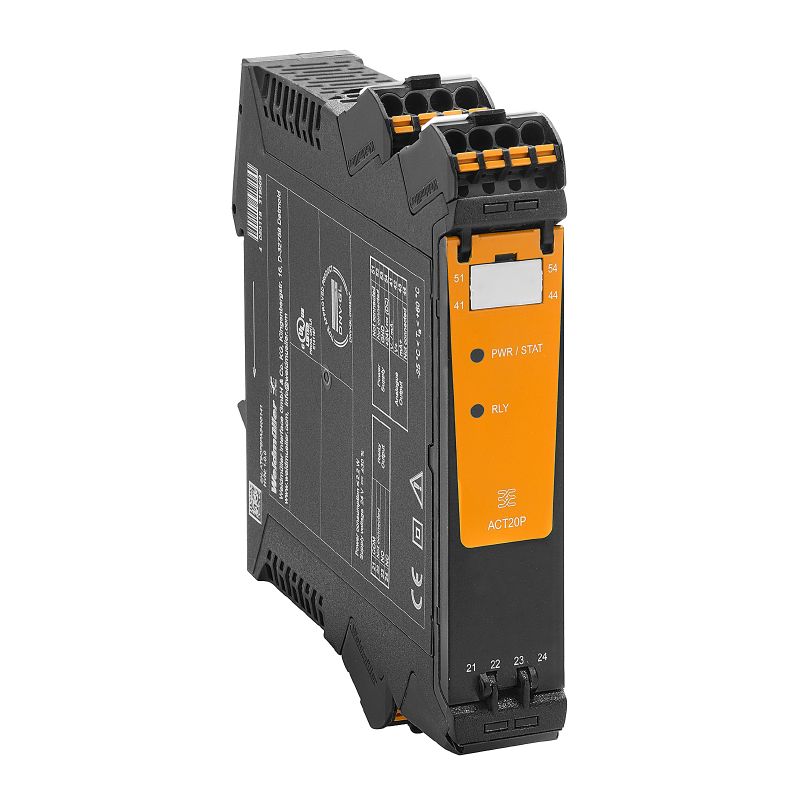

7760054361 - Three-Phase Voltage Relay with Alarms and Delay Feature

Description:

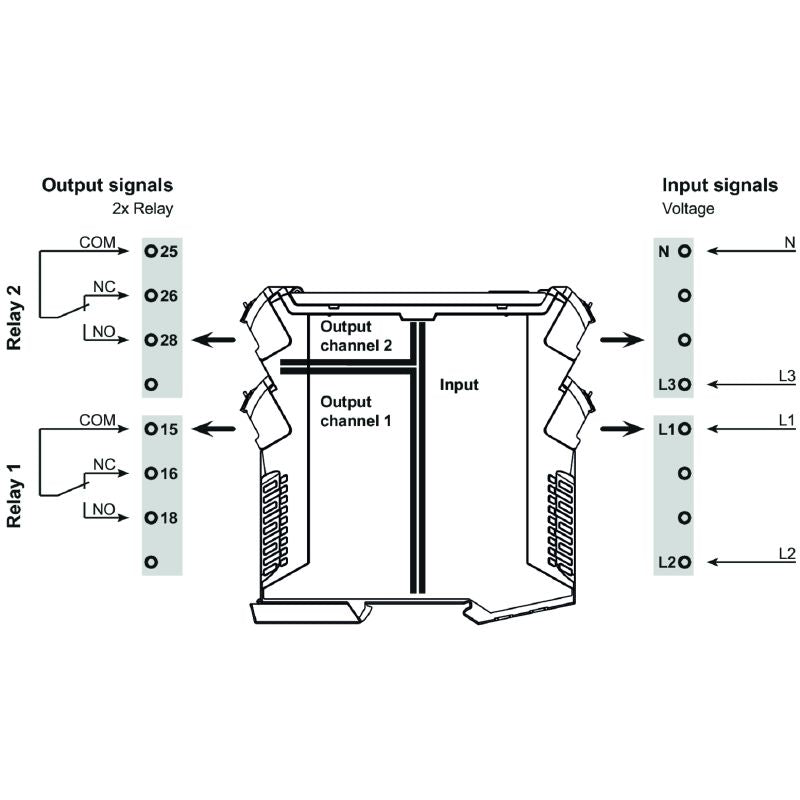

Introducing the ACT20P-VMR-3PH-ILP-H relay, expertly engineered for monitoring three-phase voltage parameters This unit is compatible with three-phase inputs and can also accommodate a three-phase plus zero conductor setup It utilizes an input measuring circuit to provide precise monitoring and features two independent relay outputs for enhanced functionality The device signals alarms for critical conditions, including phase asymmetry, phase loss, phase sequence errors, and phase angle variations when voltages drift beyond the configured thresholds.

Additionally, users can set a customizable delay time before the alarm is triggered, ensuring timely notifications This relay is an essential component for ensuring the stability and reliability of your electrical systems.

Features and Benefits:

•Powered from the input measuring circuit.

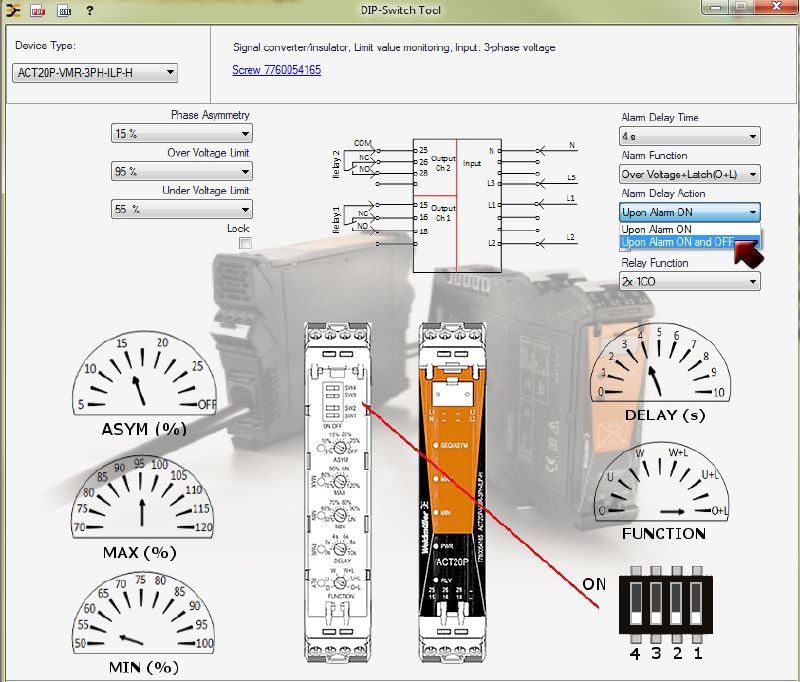

•Manual configuration available via DIP switch, potentiometer, and rotary switch.

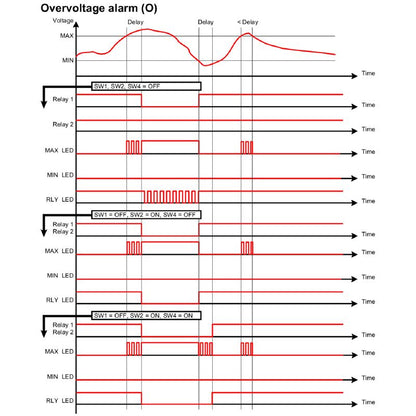

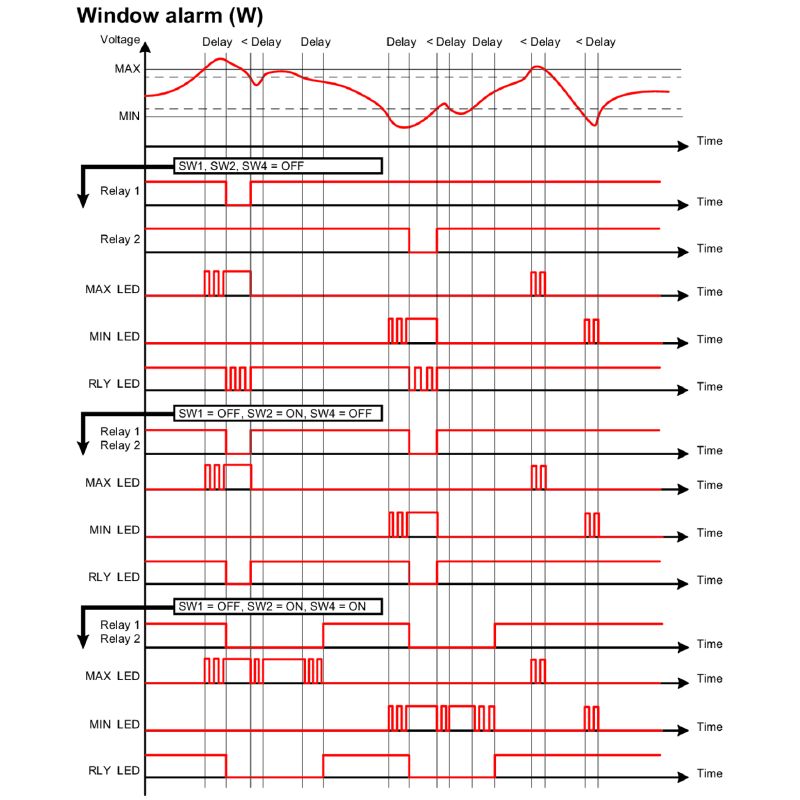

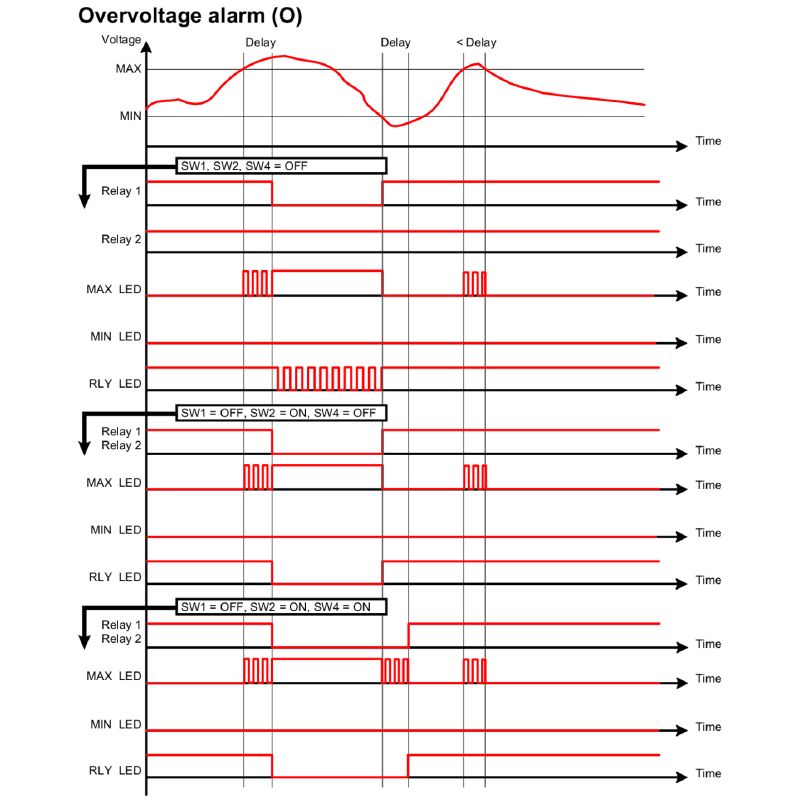

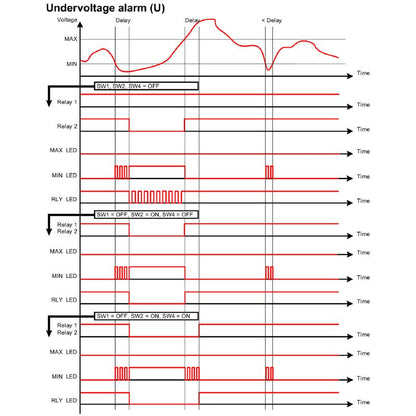

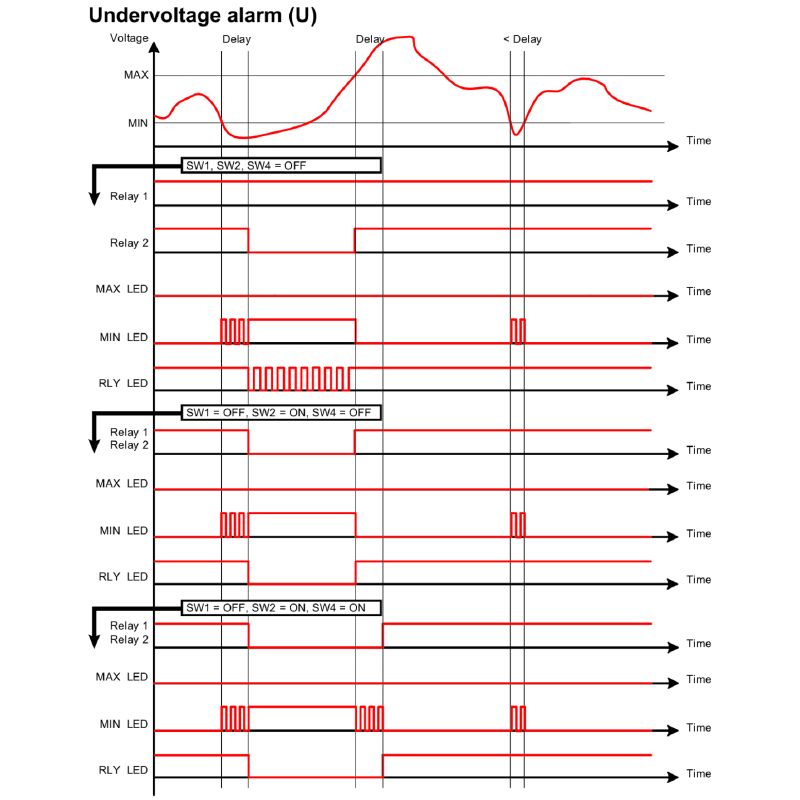

•Multiple alarm options: phase asymmetry, phase loss, phase sequence errors, phase angle errors, alarm delay, upper/lower limit alarms, window alarms.

•LED indicators for operational status and potential malfunctions.

•Three-way galvanic isolation between inputs, output 1, and output 2.

Specifications:
