Description:

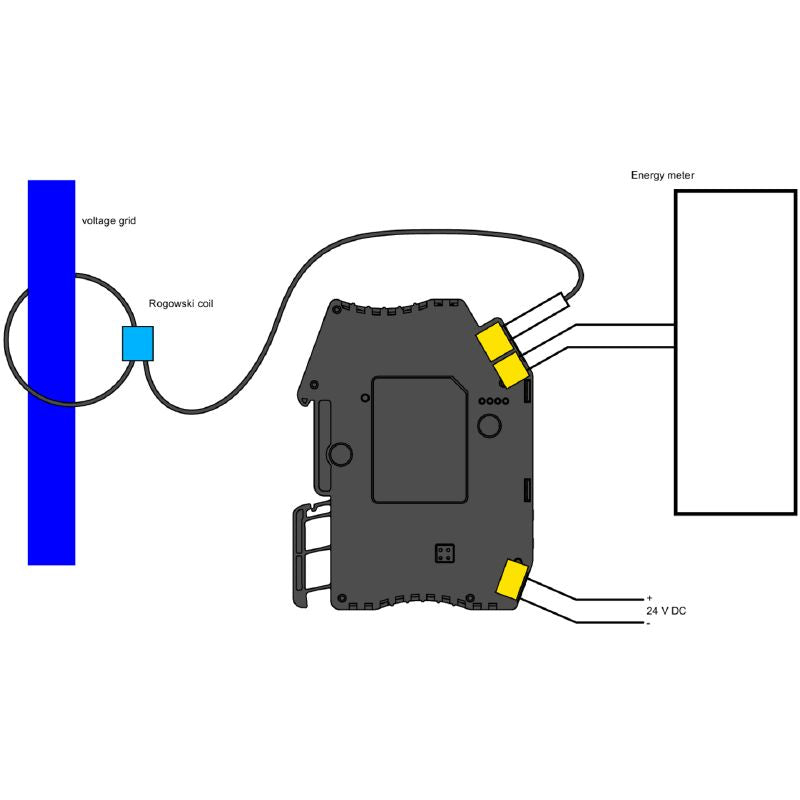

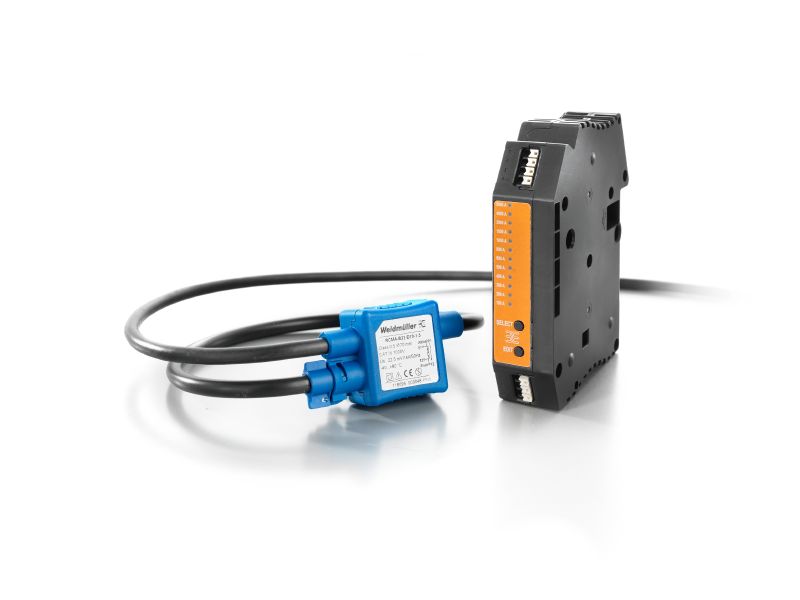

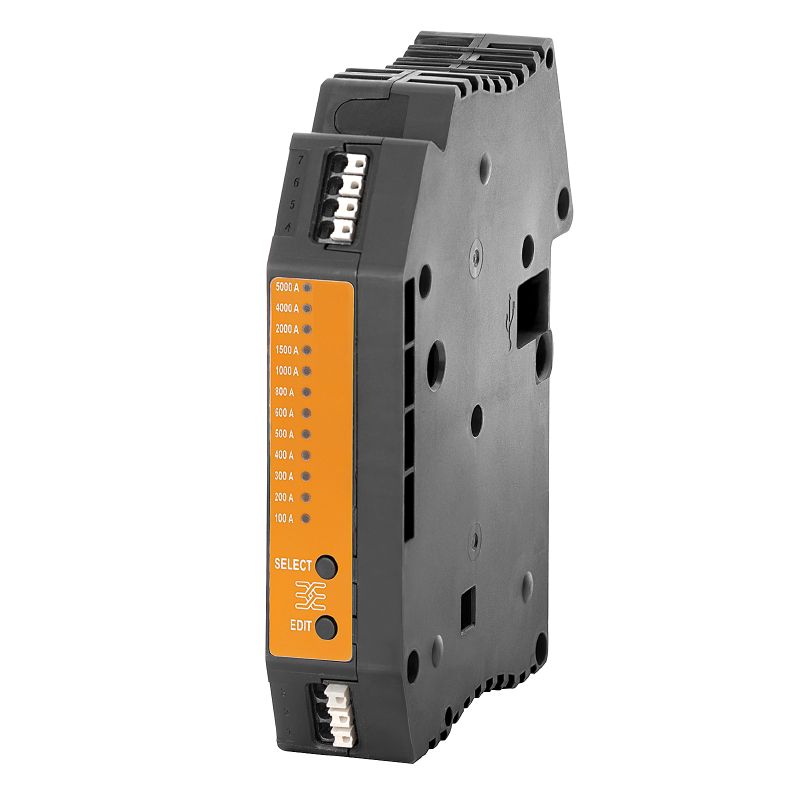

Introducing the RCMC-5000-1A-P, an advanced device tailored for precise electronic measurements of alternating current (AC) This innovative unit operates seamlessly alongside the Weidmüller RCMA-B22-DXX Rogowski coil, effectively transforming signals into a high-fidelity analog output Designed with user convenience in mind, it features a configuration system with two intuitive front buttons and LED indicators to clearly display operational and setup statuses.

Perfect for those seeking accuracy in measurement applications.

Features and Benefits:

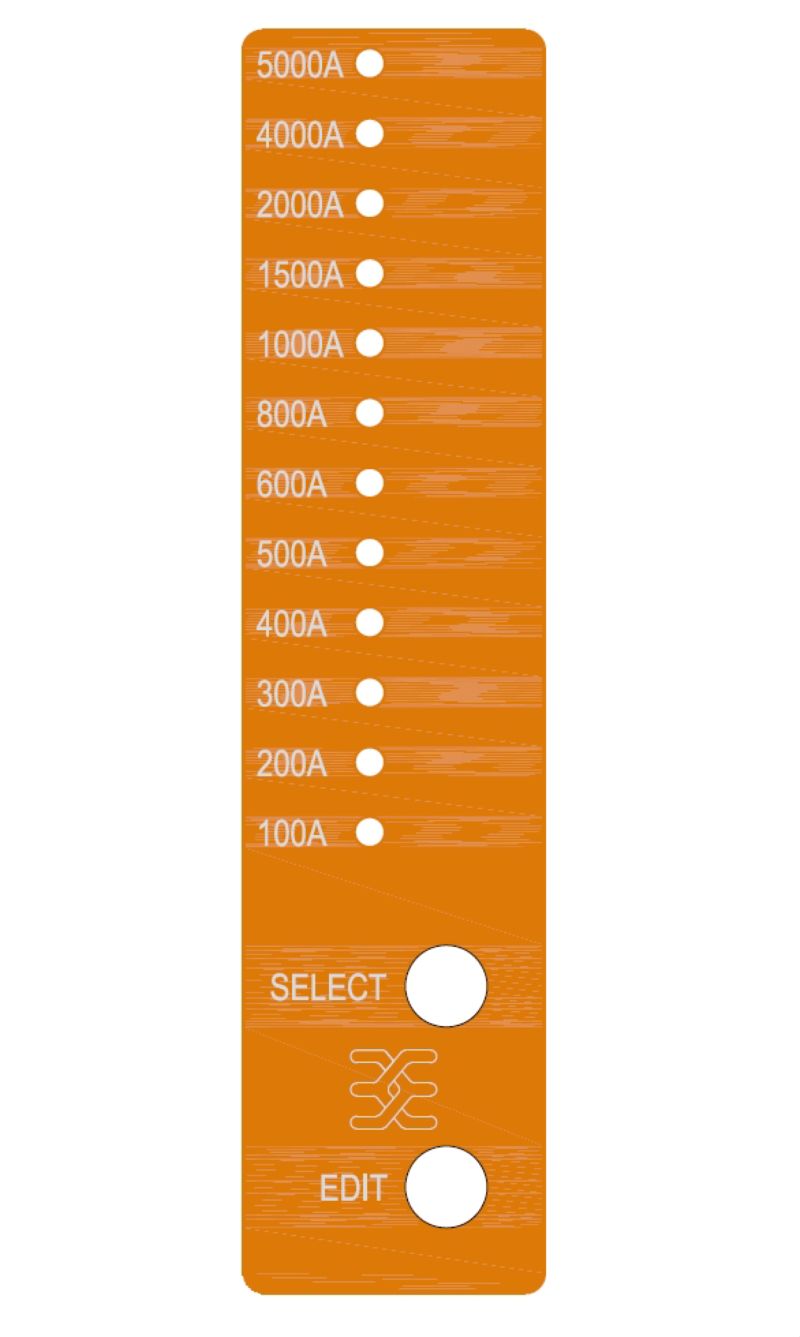

•12 selectable current measuring ranges.

•USB connection is solely for the power supply.

•Electronic measurement of AC current.

Specifications:

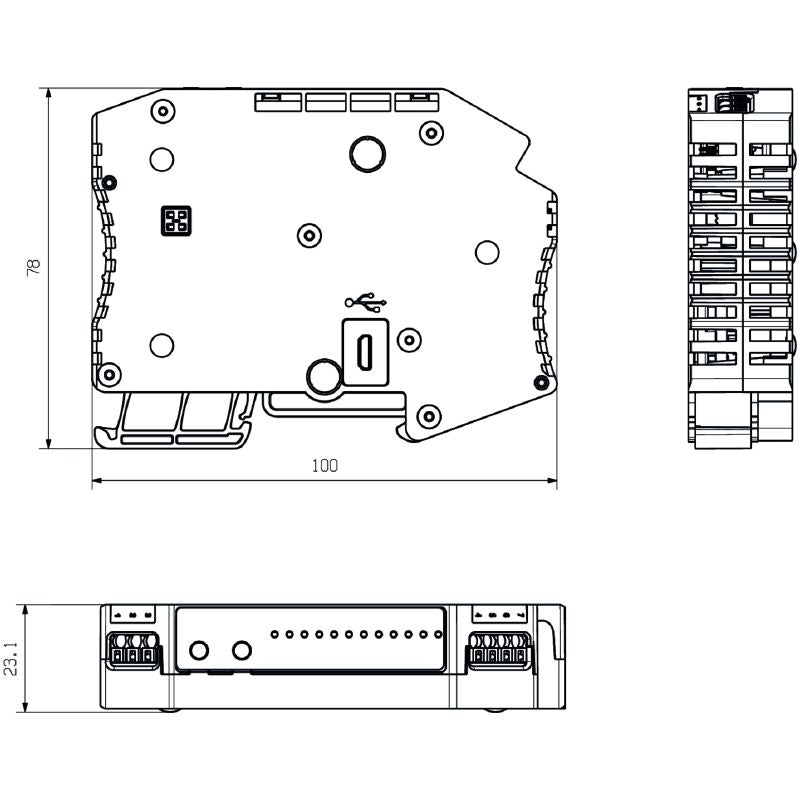

Depth	78 mm
Height	100 mm
Width	23.1 mm
Net weight	100 g
Storage temperature	-40 °C...85 °C
Operating temperature	-25 °C...65 °C
Humidity	5...95 %, no condensation
Frequency band	50...60 Hz
Primary current	5,000 A
Secondary voltage	22.5 mV (@ 50Hz I primary = 1 kA)
Protection degree	IP20
Input signal	every Weidmüller Rogowski coil RCMA-B22-D...
Load impedance current	≤ 1.5 Ω
Output current	0…1 A AC
Accuracy	<0.5 % of measuring range
Current consumption	100 mA @24V
Linearity	± 0.1 % typ.
Supply voltage	24 V DC ± 25 %
Temperature coefficient	≤ 0.015 % / °C
Insulation voltage	1.5 kV AC 1 min.
Pollution severity	2
