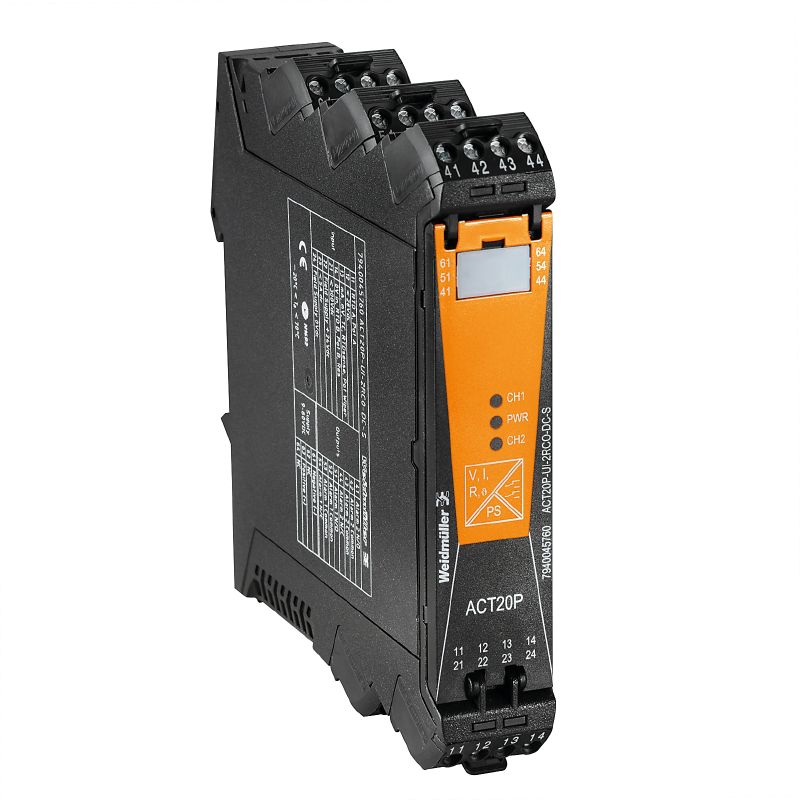

7940045760 - Dual-Channel Signal Capture Device with Alarm Outputs

Description:

Introducing the ACT20P-UI-2RCO-XX-x series, engineered to effectively monitor signals from temperature sensors, potentiometers, current, and voltage sources This innovative device is equipped with two independent relay outputs that activate alarms when monitored levels exceed set thresholds Users can configure settings and perform diagnostics via FDT/DTM software or directly through an intuitive LED display and control buttons.

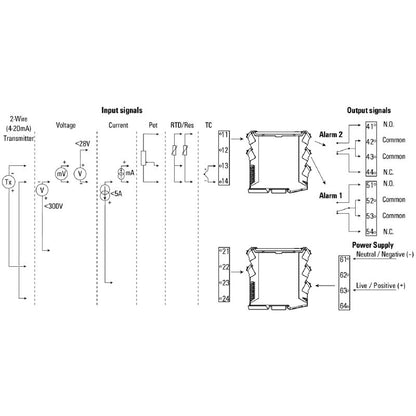

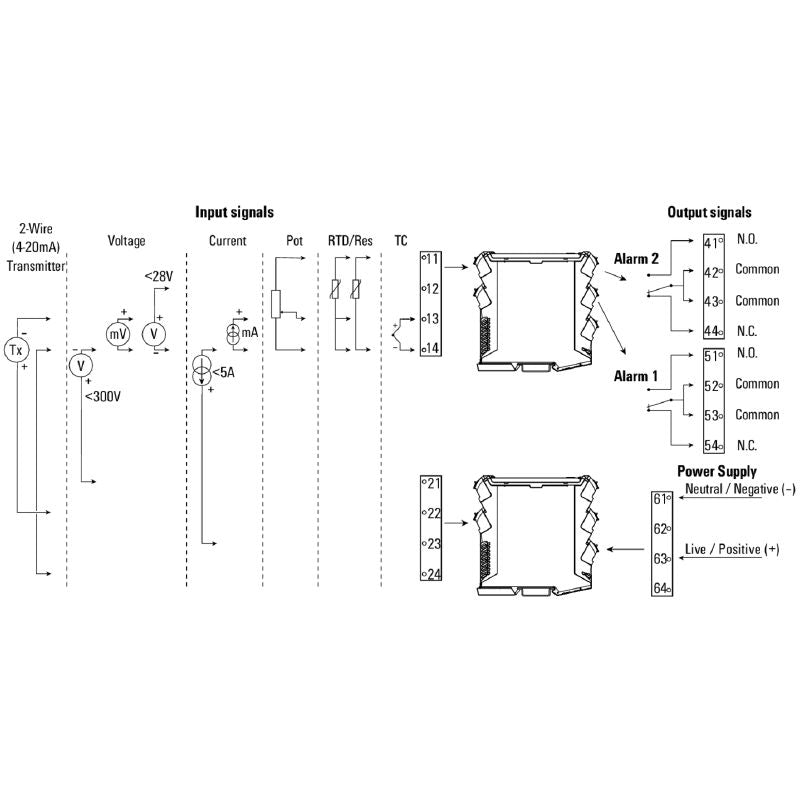

The dual-channel amplifier allows for versatile alarm configurations, including window alarms, alarm delays, detection of cable malfunctions, hysteresis control, and upper/lower limit notifications It accommodates both active and passive inputs for RTD, TC, potentiometers, voltage, and current—with the added benefit of galvanic isolation for enhanced performance Remote diagnostics facilitate error reporting through a dedicated status relay, while the operational and relay conditions are clearly indicated via front panel LEDs.

With four-way galvanic isolation between the inputs, outputs, and power supply, this device promises reliable and safe operation.

Features and Benefits:

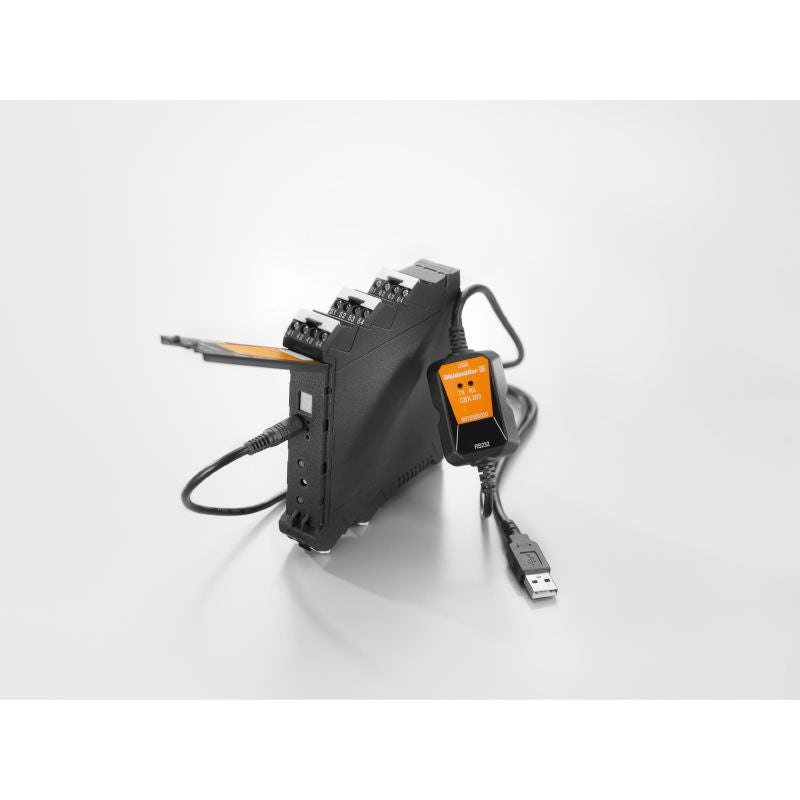

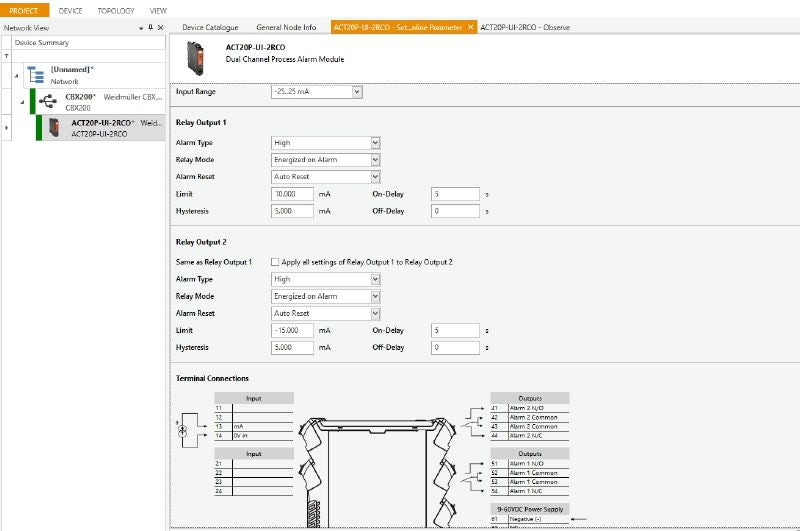

•Configuration and diagnosis using FDT/DTM software or manual operation.

•Alarm functions include window alerts, alarm delays, and wire break detection.

•Galvanic 4-way isolation between input, output, and supply.

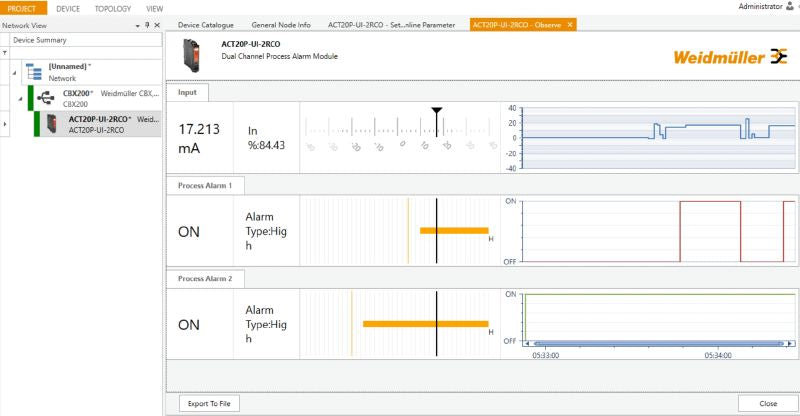

•Remote diagnostics with error reporting via status relay.

Specifications:
