2525150000 - Closed Current Transformer, 32A Primary, RoHS Compliant

2525150000 - Closed Current Transformer, 32A Primary, RoHS Compliant

SKU: 2525150000   Download PDF

Select a Variant:
  • 2525150000 - Closed Current Transformer, 32A Primary, RoHS Compliant
Qty:
Now $38.99   Web pricing policy
BEFORE   $0.00 Now $38.99 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Discover the reliability of this closed current transformer, featuring a primary current capacity of 32 A and a maximum secondary current of 1 A With a load capacity of 02 VA, it is categorized within tolerance class 1, ensuring precision in performance This transformer adheres to RoHS standards and has passed thorough environmental compliance assessments It functions efficiently within a temperature spectrum of -5 °C to 50 °C and can be safely stored at temperatures ranging from -25 °C to 70 °C, making it a versatile and durable choice for various applications.

Features and Benefits:

    •Closed current transformer.

    •RoHS compliant.

    •Indoor use installation.

Specifications:

 Primary current 32 A
 Secondary current 0...1 A
 Load 0.2 VA
 Tolerance class 1
 Insulation class E
 Nominal frequency 50 Hz
 Temperature (Storage) -25 °C...70 °C
 Temperature (Operating) -5 °C...50 °C

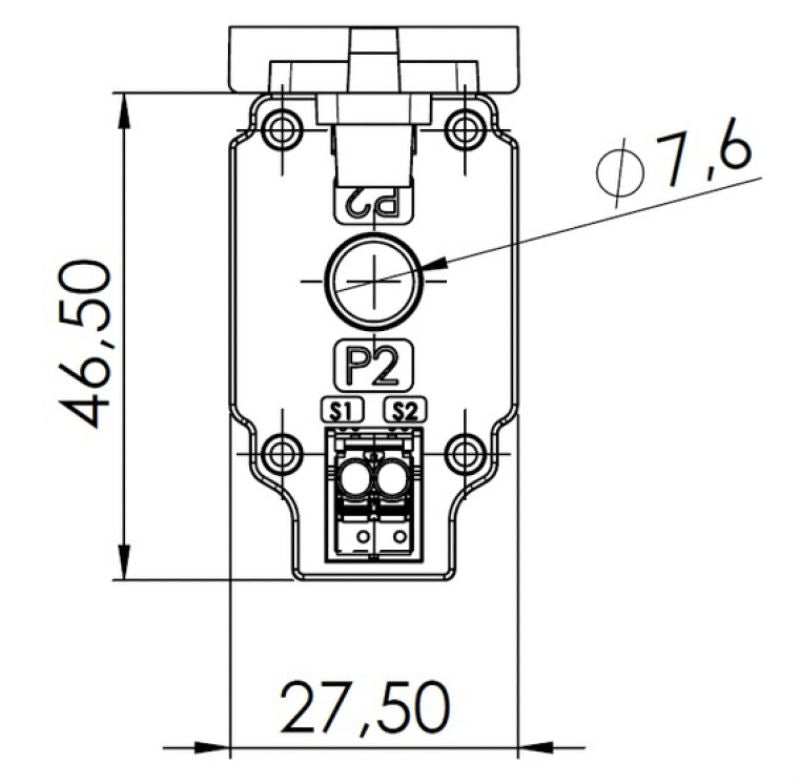

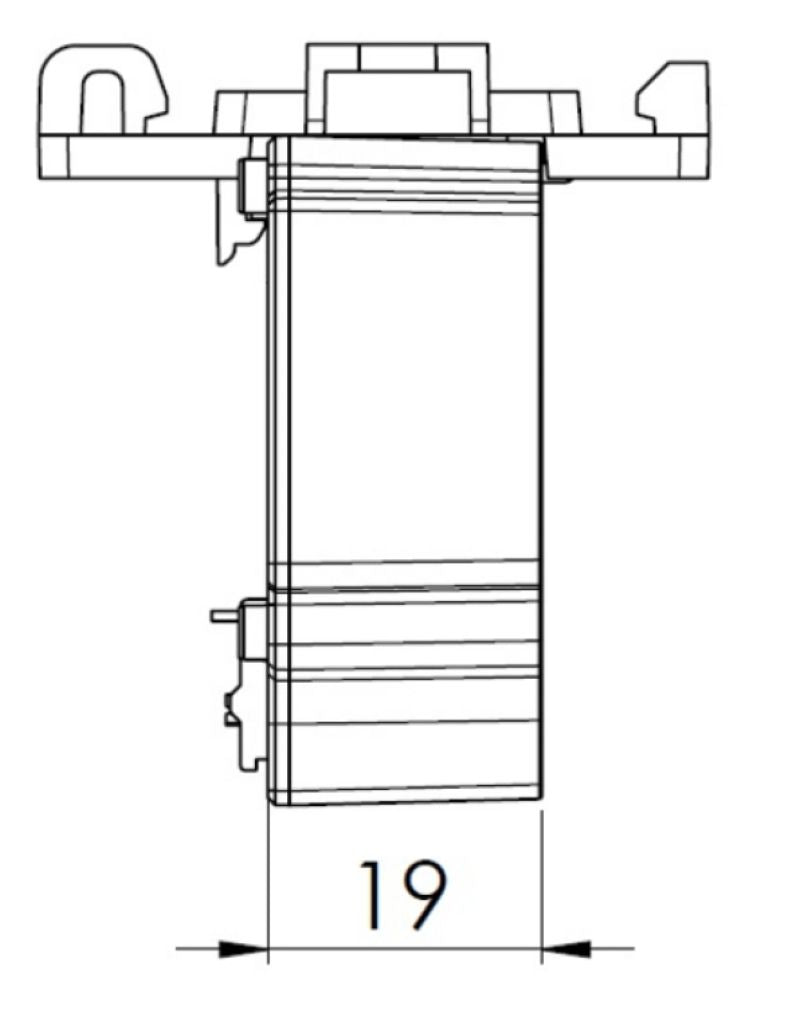

 Dimensions (Depth) 19 mm
 Dimensions (Height) 46.5 mm
 Dimensions (Width) 27.5 mm
 Net weight 56.32 g
 Frequency range (max) 60 Hz
 Frequency range (min) 40 Hz
 Type of conductor Insulated conductor only
 Round conductor size 7.6 mm
 Nominal turns ratio 10 kA/V
 Insulation coordination standard IEC 61869-1: 2007, IEC 61869-2: 2012, IEC 61010-1
